OPTILINE – OPTICS FOR INDOOR LIGHTS AND LINEAR SYSTEMS.

bjb-optiline-performance-wide

BJB OptiLine plastic optics.

Optic holder for 20 mm LED boards with pre-assembled P2F
31.930.U308
Details

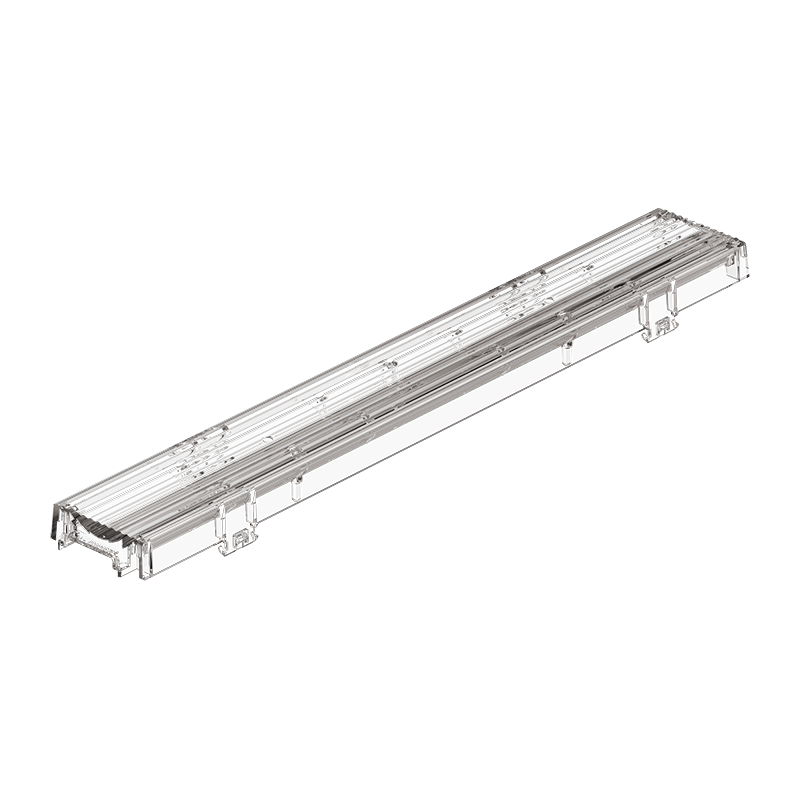

OptiLine Flex - Medium
35.301.1029
Details
OptiLine Louvre - Wide
35.306.1002
Details
OptiLine Performance - Oval
35.324.1007
Details
Diffusor for 14 mm LED-System
31.930.-432
Details
OptiLine 3x11 - DA Gen 2
35.333.1004
Details

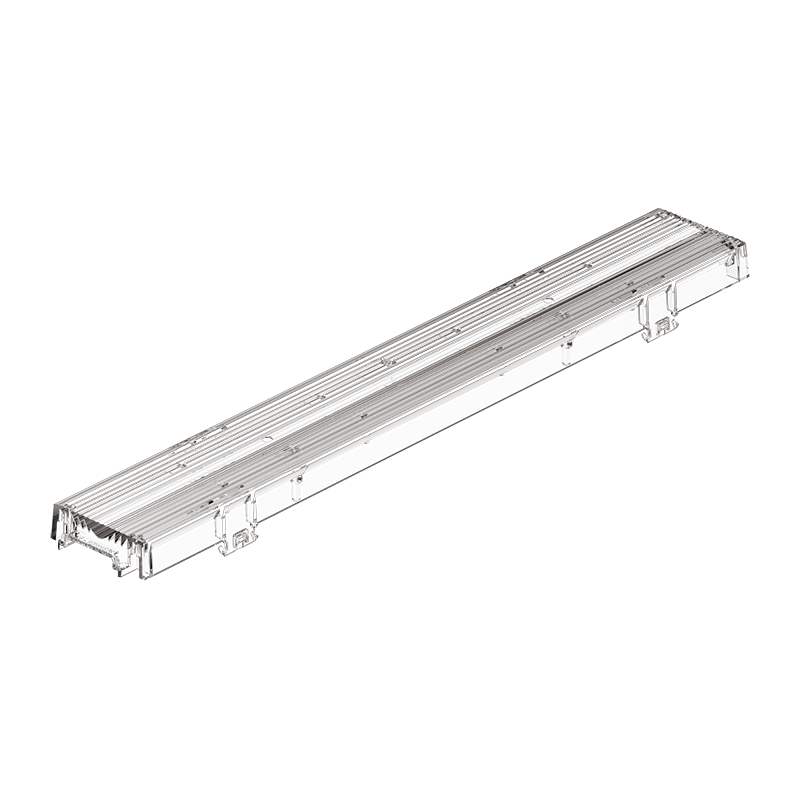

OptiLine Flex - Narrow
35.301.1028
Details

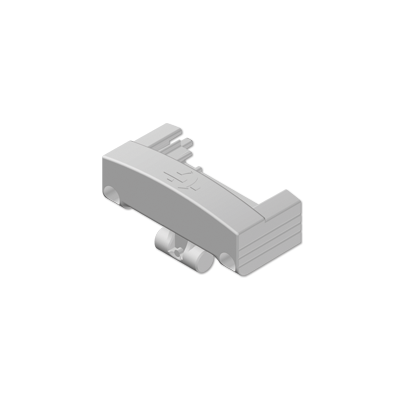

OptiLine Flex Endcap
35.903.-301
Details
OptiLine Performance - DA
35.324.1004
Details
Diffusor for 14 mm LED-System
31.930.-439
Details
OptiLine 3x11 - Endcap
35.903.-302
Details
OptiLine Performance - Endcap
35.903.-304
Details
Linear Extrusion optic for 20/24 mm LED-System
31.930.-440
Details
End cap for 14 mm LED-System
31.930.-313
Details
OptiLine 3x11 - Narrow Gen 2
35.333.1001
Details
Diffusor for 14 mm LED-System
31.930.-431
Details

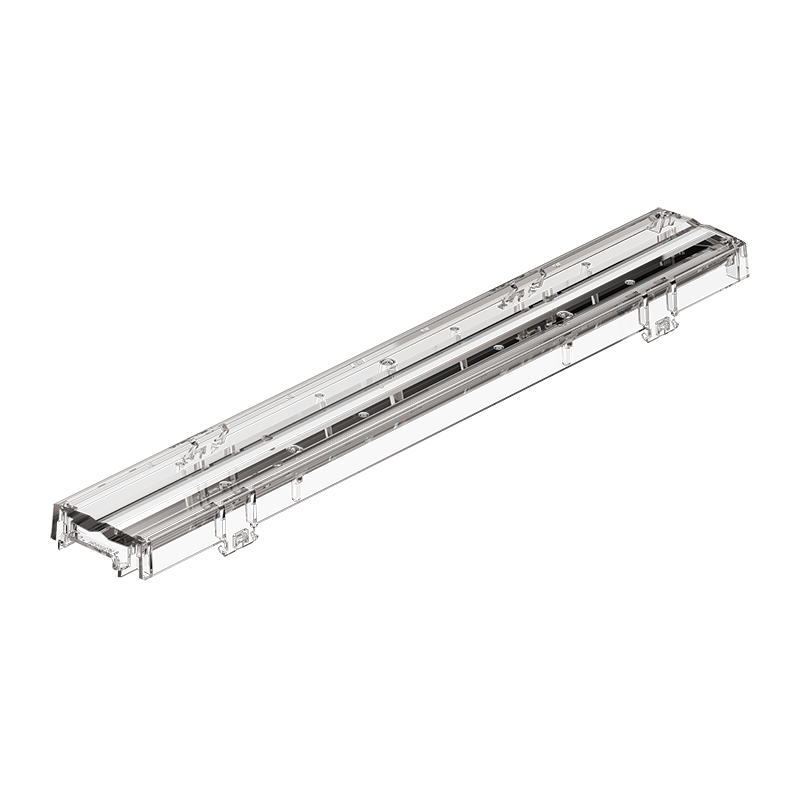

OptiLine Flex - DA
35.301.1031
Details
OptiLine 3x11 - SA Gen 2
35.333.1005
Details
Diffusor for 14 mm LED-System
31.930.-433
Details
OptiLine Flex - Wide
35.301.1030
Details
Optic holder for 20 mm LED boards
31.930.-342
Details
OptiLine 3x11 - Wide Gen 2
35.333.1003
Details
Linear Extrusion optic for 20/24 mm LED-System
35.301.1012
Details
Optic holder for 20 mm LED boards with pre-assembled P2F
31.930.U302
Details
Linear Extrusion optic for 20/24 mm LED-System
31.930.-441
Details
Diffusor for 14 mm LED-System
31.930.-435
Details
OptiLine 3x11 - narrow
31.930.-451
Details
OptiLine Flex - SA
35.301.1032
Details
OptiLine Performance - Wide
35.324.1003
Details
OptiLine Performance - Medium
35.324.1002
Details

BJB optics for ideal light control, light distribution or reduction of glare, ideally tailored to customised desires and ideas. Furthermore, when developing the comprehensive range of optical systems, particular attention was paid to simplicity, e.g. when it comes to fastening using latching elements or our P2F fastening elements instead of screws.

The benefits at a glance

  • Various emission characteristics
  • Individual customised developments
  • Simple fastening options

Click-in instead of screw-in!
Mounting faster than ever before with BJB OptiLine 1-click optics.

bjb-optiline-1-klick-optiken

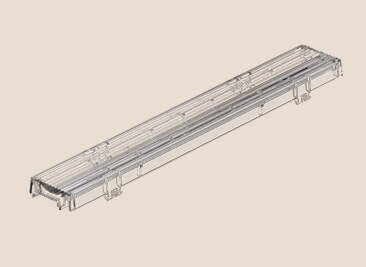

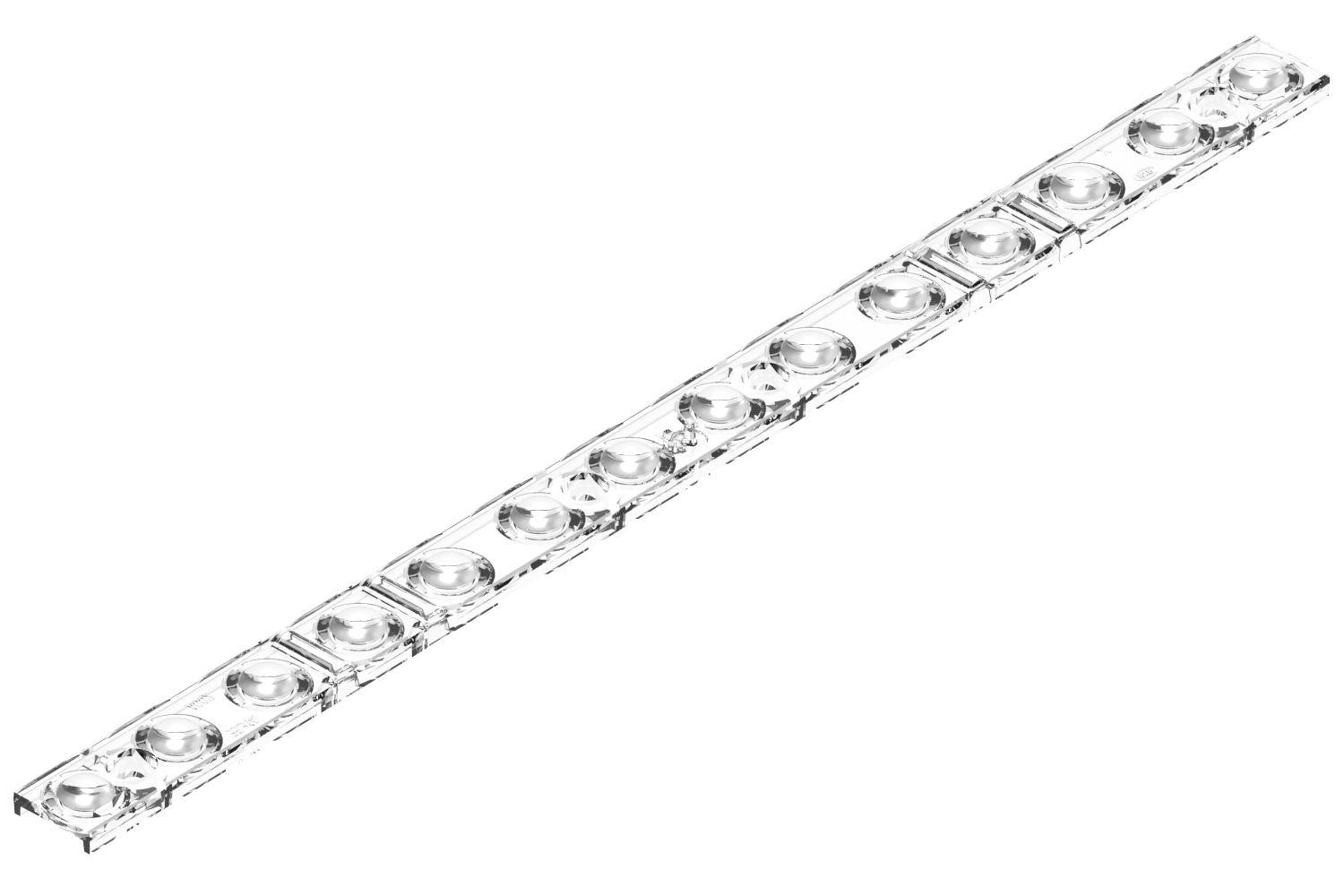

With the OptiLine optics, we present a new generation of single-row optics which can be mounted quicker than ever before: thanks to innovative 1-click fastening which connects the optic and LED module in a single working step, without the need for tools. Centring pins and spacers position and secure the printed circuit board on the light panel or aluminium profile, the end caps on the left and right provide a neat closure.

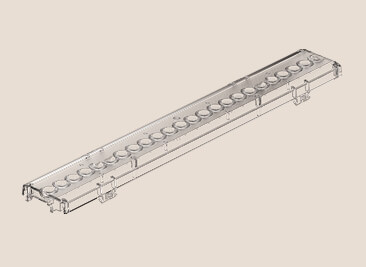

These new optics are available in two variants. The pitch-specific OptiLine Performance optics of the 35.324 series make for particularly low glare, the universal-pitch OptiLine Flex optics of the 35.301 series make for maximum flexibility when it comes to light control and module selection.

The benefits at a glance

  • Can be mounted without the need for tools thanks to the tried-and-tested 1-click latching elements
  • Available in various light distribution versions
  • Available with appropriate end caps
  • High level of safety
  • All the requirements for non-SELV applications met
  • Various emission characteristics
bjb-optiline-louvre
bjb-optiline-buero-leuchten-ueber-arbeitsplaetze

LED darklight louvre optic
for the highest
quality requirements.

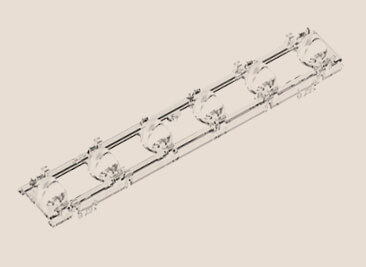

OptiLine Louvre – the dark side of light.

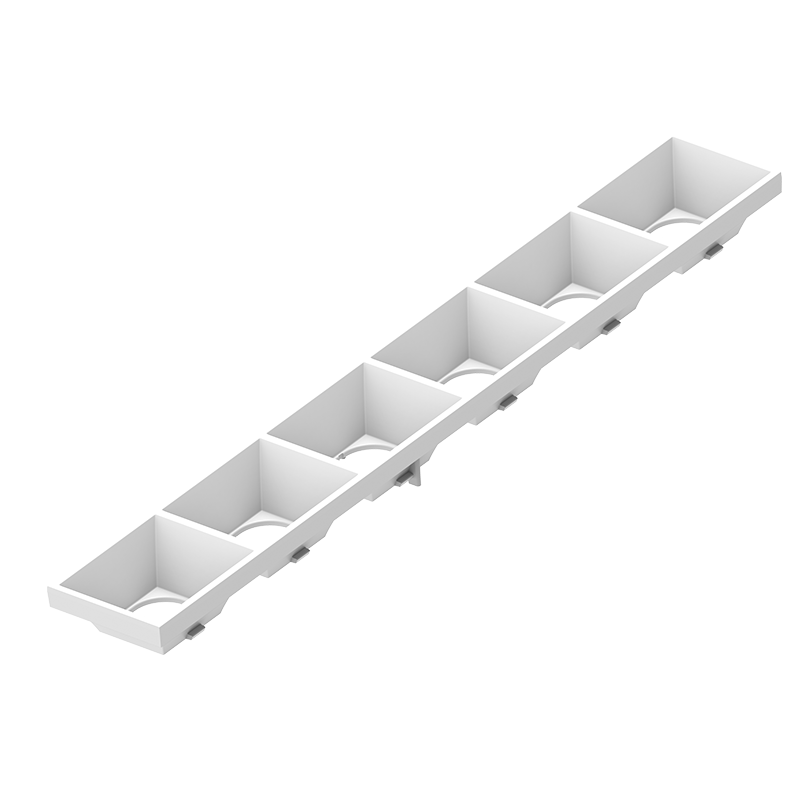

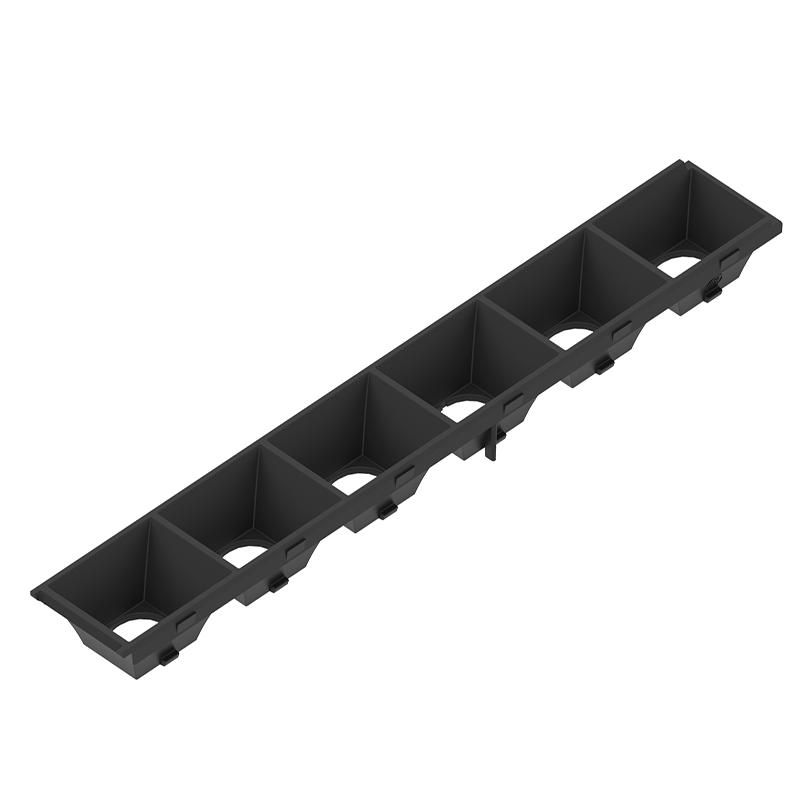

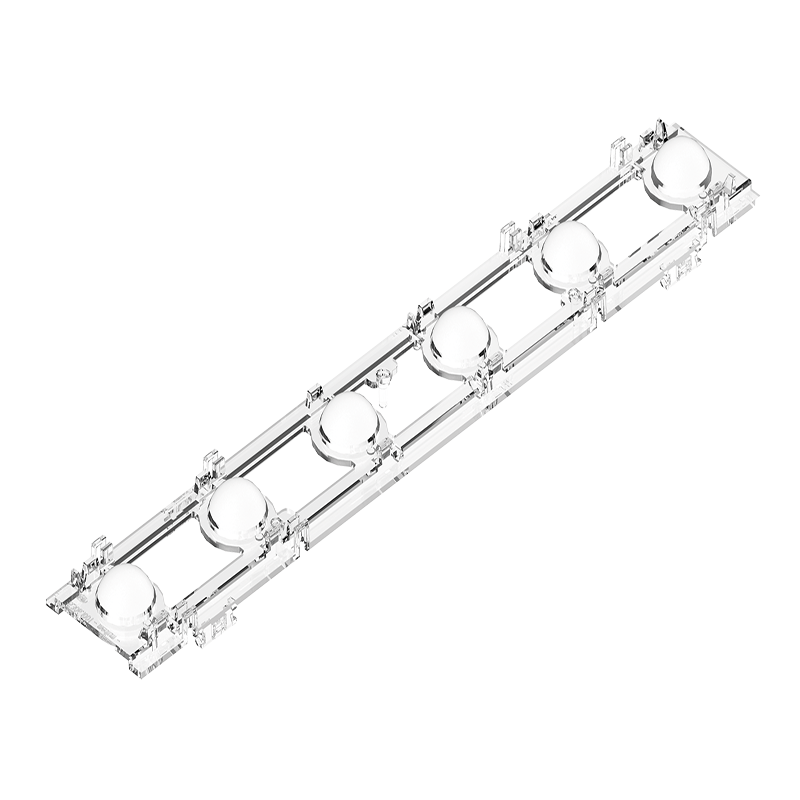

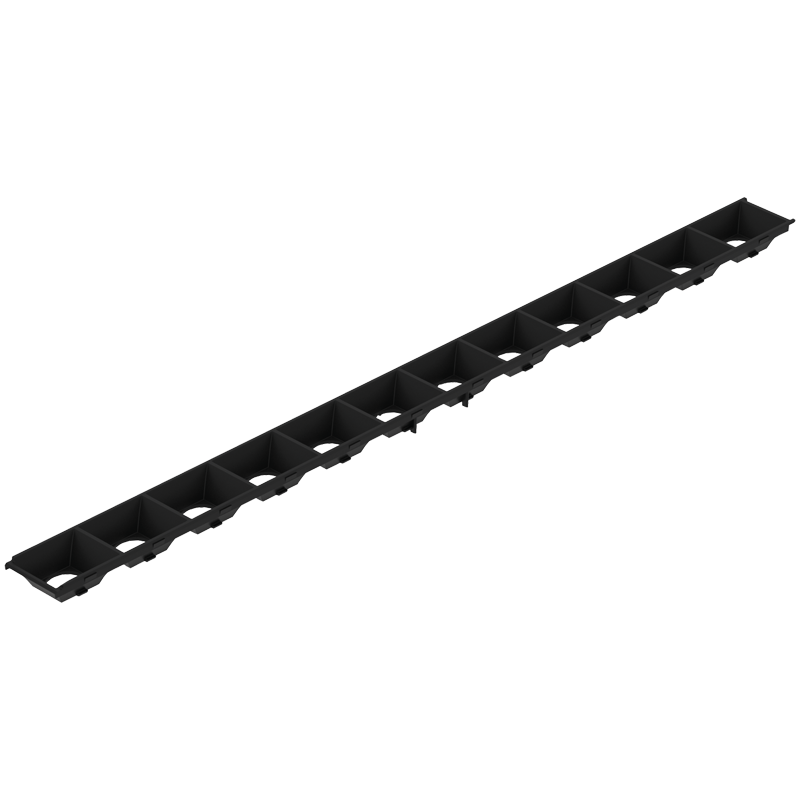

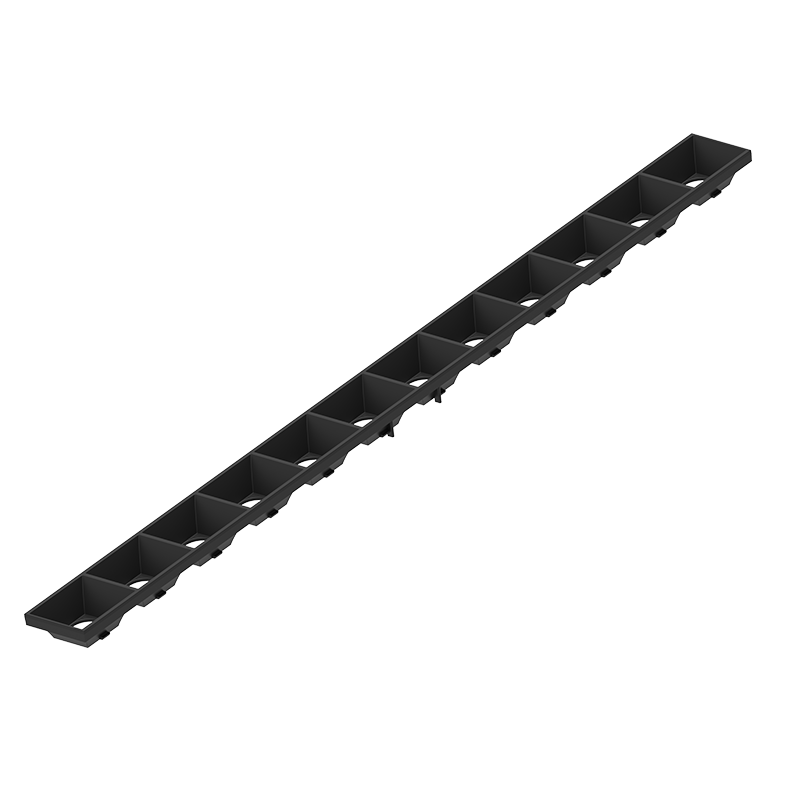

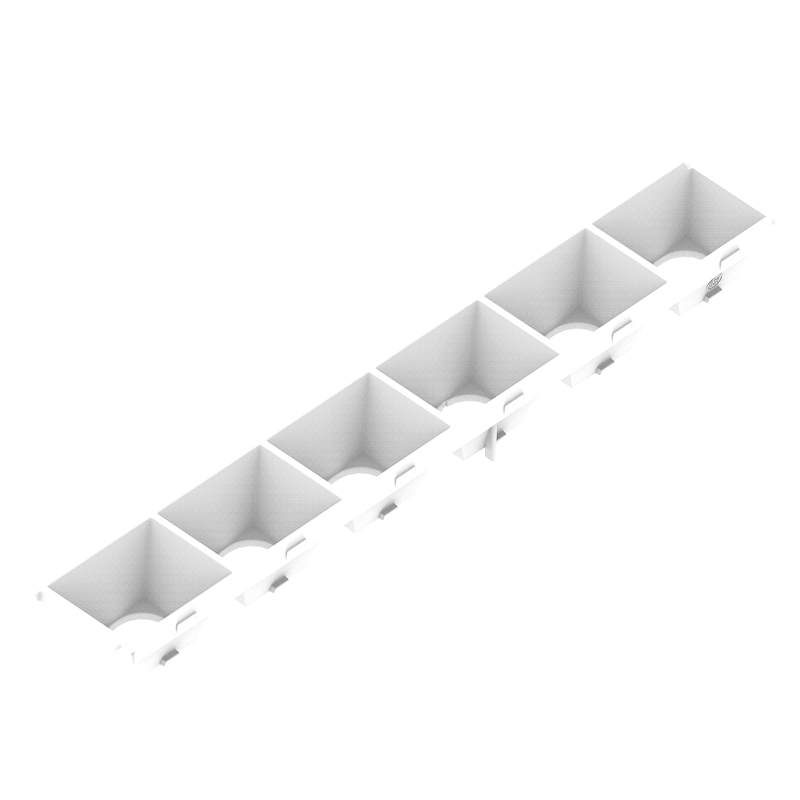

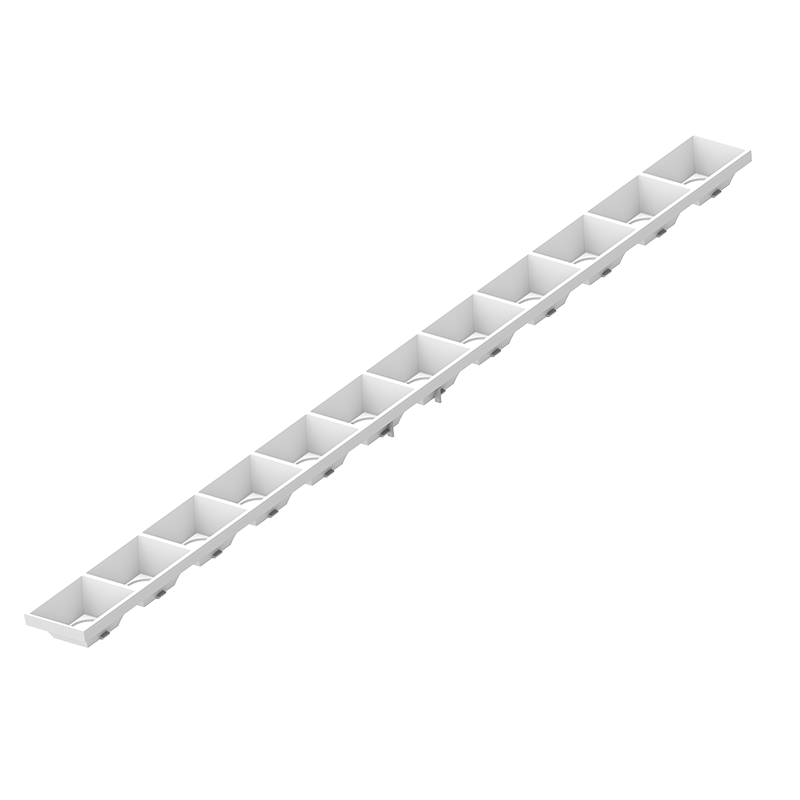

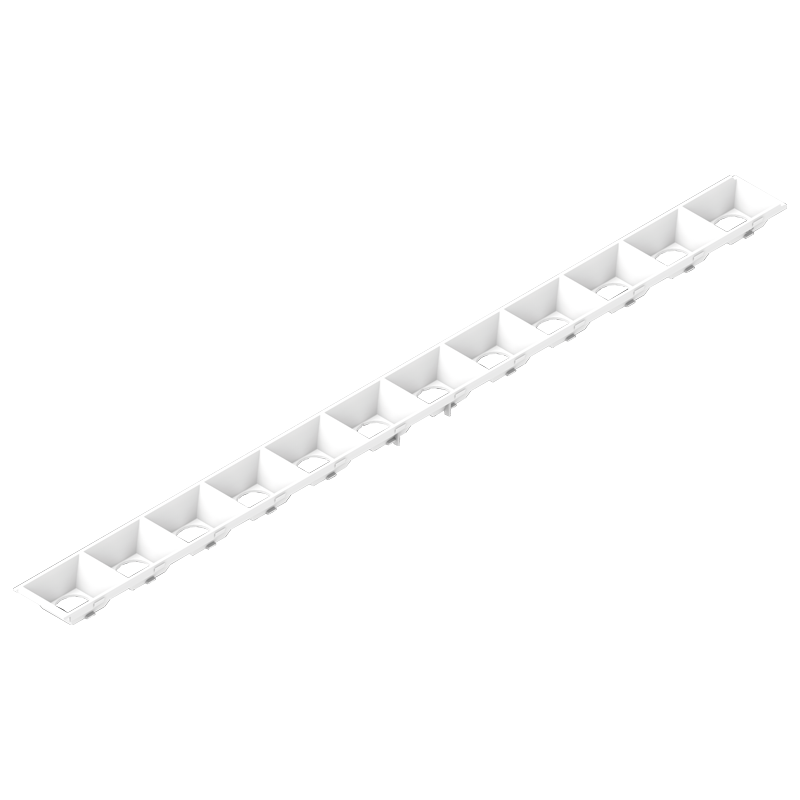

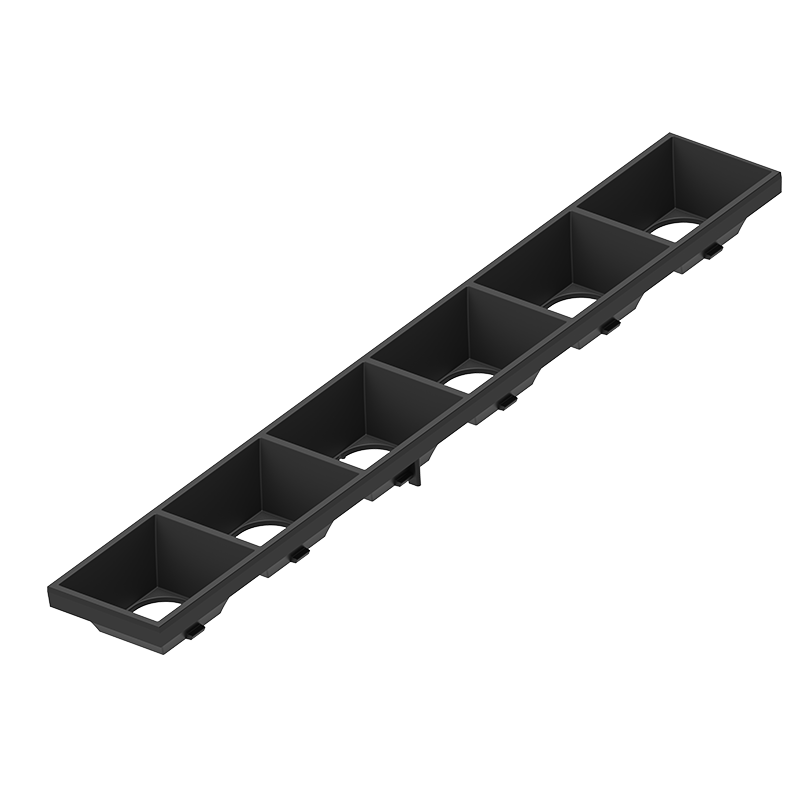

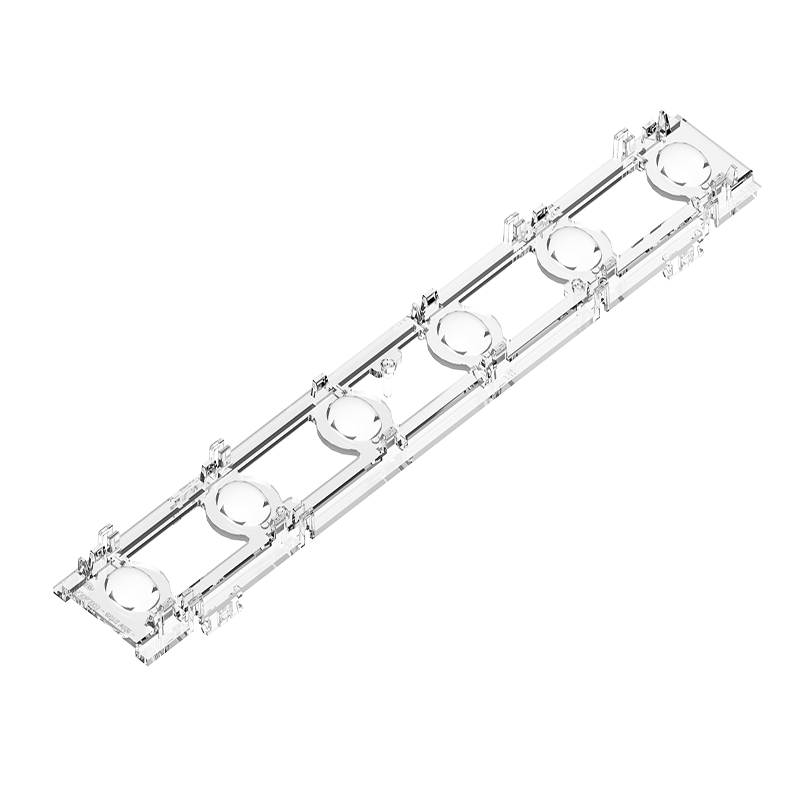

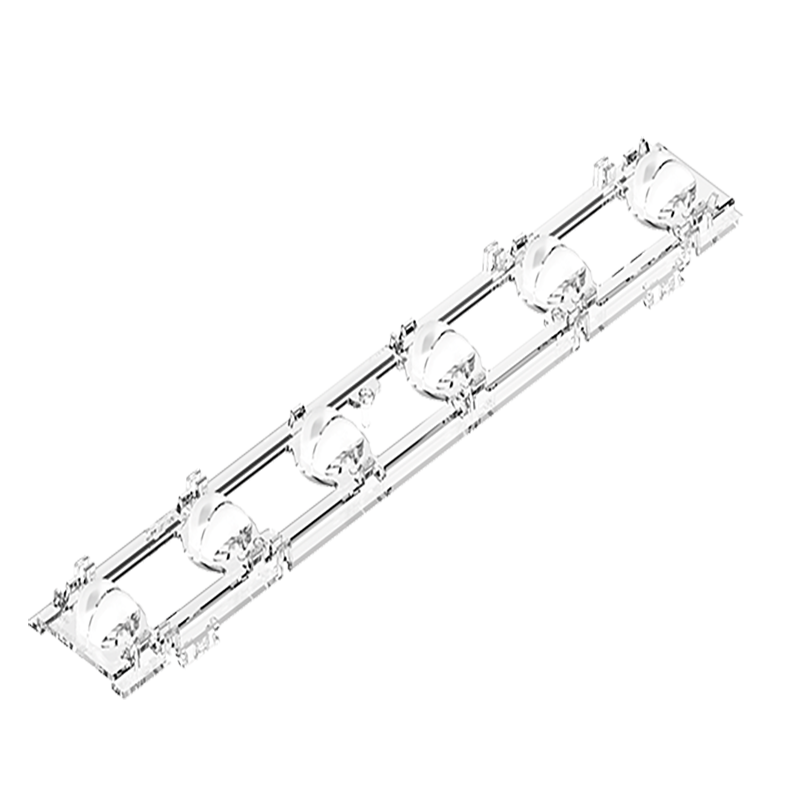

The low-glare LED darklight louvre optic for the highest demands. The new OptiLine Louvre system comprises lens optics and the respective louvres. Thanks to the low UGR value, these optics, which are available in a medium and wide version, are particularly suitable for all applications which require optimum lighting and minimum glare. The OptiLine Louvre System is engineered for use both in light panels and in aluminium profiles, and thus provides a high level of flexibility when it comes to lamp construction.

The benefits of the lens optic at a glance

  • Homogeneous mixture (also for tunable white applications)
  • Particularly low glare: Medium = UGR<16/Wide = UGR<19
  • Can be mounted without the need for tools thanks to the tried-and-tested 1-click latching elements
  • Centring pins for optimum alignment of LED module and optic in a single step

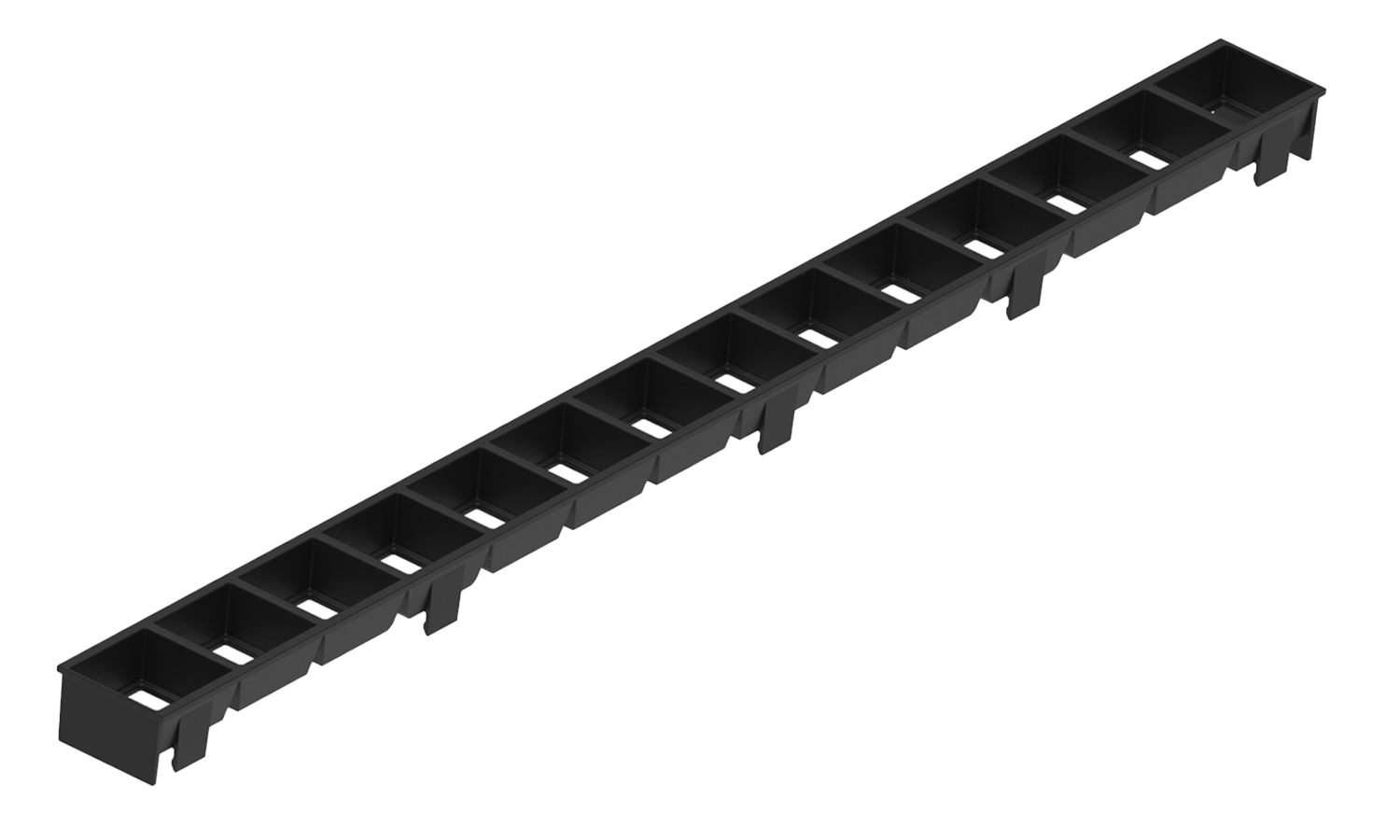

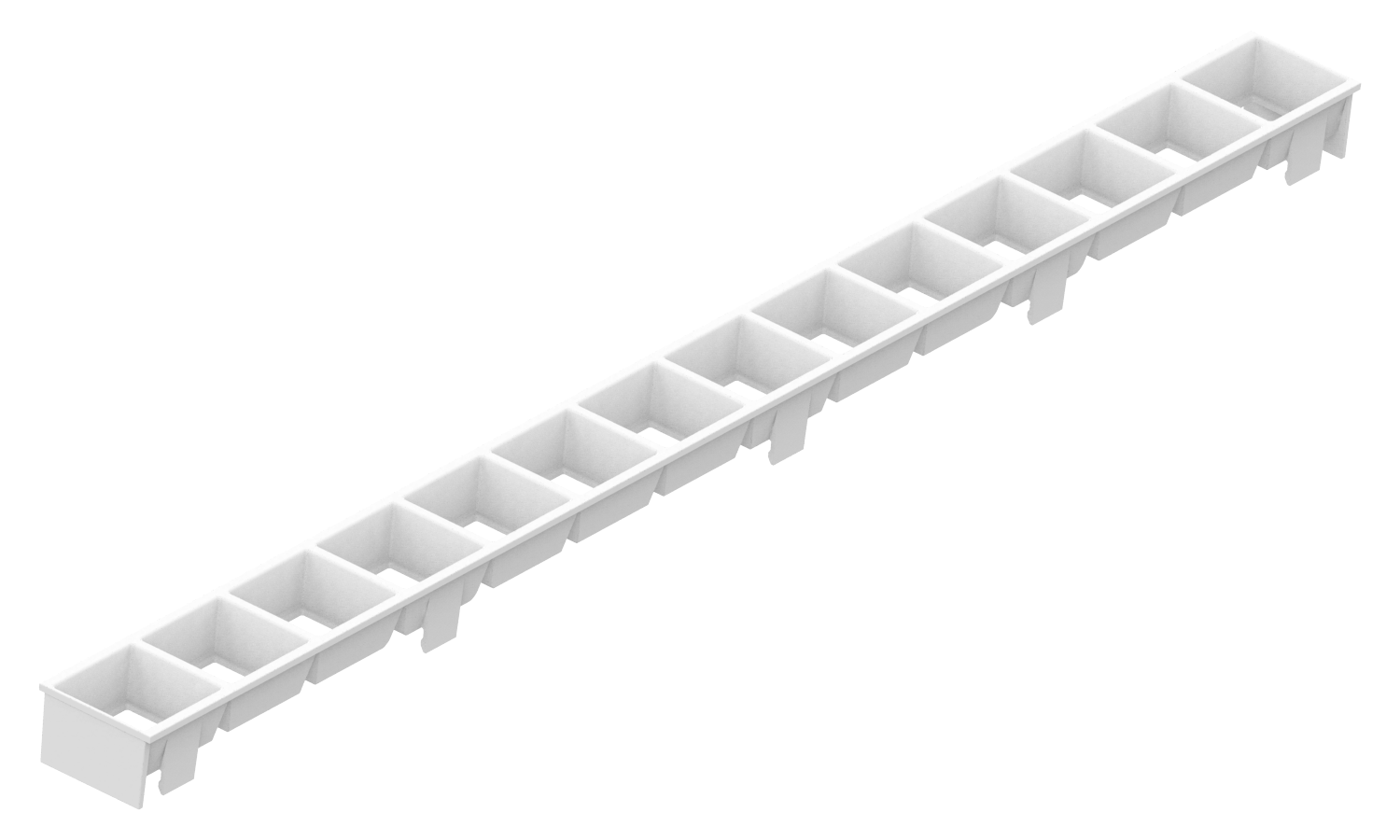

The benefits of the louvre at a glance

  • Centring and positioning pins for perfectly positioned alignment of the louvre
  • Latching hooks for clipping the optic into place
  • Latching lugs for securing in the light panel or aluminium profile
  • Overlap to offset thermal expansion: prevents light scatter at the same time
  • Seamless integration into the lamp housing
  • 1-foot and 2-foot variants

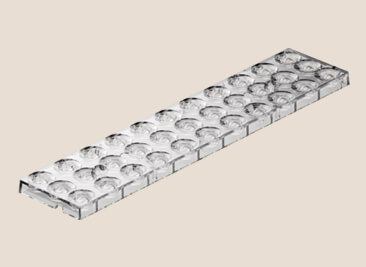

OPTILINE 3x11 OPTICS.

3x11 optics are often used for light strip systems for use in linear or planar lights in the shop, office and industrial areas. Various light distribution variants are available ex works. Our OptiLine 3x11 optics are available with pre-installed P2F 28.905 optic, making it possible to mount the printed circuit board and optic in a single working step.

The benefits at a glance

  • Optics for 3x11 LED modules are based on Zhaga Book 7
  • Available in various light distribution versions
  • Available with appropriate end caps
  • External finish: roughened eroded VDI ref. 36
  • Optimised for 2835, 3030, 5630 LED
  • Compatible with freely available 280 mm (1 ft) and 560 mm (2 ft) 3x11 LED modules
  • Improved visibility conditions and contrast of illuminated areas
  • Good and even light distribution
  • Reduced glare
  • Fastened with P2F optic or screws
bjb-optiline-optic-push-to-fix

3x11 optic –
simple mounting
with push-to-fix.

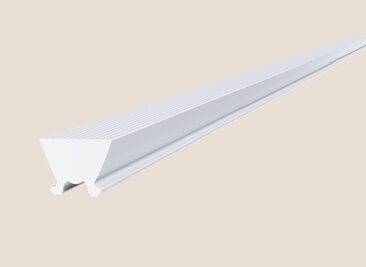

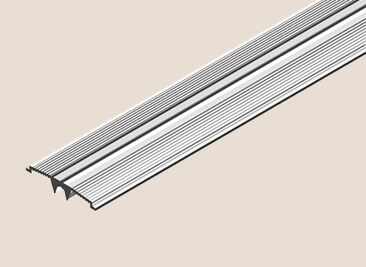

OPTILINE SLIM 20 bzw. 24 mm LED-SYSTEM.

Linear lamps which are based on 20 or 24 mm printed circuit boards can be configured with our extruded optics, which are just short of 8 mm in height. The appropriate holders make for quick and straightforward mounting – additional light control elements are not necessary. Alongside the standard lengths of 560 and 1,120 mm (dimensions of the conventional fluorescent lamps) with various emission angles, other lengths are possible. Single and double asymmetrical variants are also available.

The benefits at a glance

  • Extremely slimline optic for insertion directly above the LED
  • Simple mounting by clipping into place from above
  • Major freedom when it comes to lamp design
  • Unchanged lamp design
  • Simple upgrade to LED technology
  • No profile required for guidance
  • Holding element and LED module mounted in a single production step
  • For universal use
  • No defined drilled hole spacing
  • Compensation of thermal length changes
  • Automatic lamp wiring possible
  • Wiring possible even after mounting the optic

Upgrading lamp
to LED technology
is very straightforward.

bjb-optiline-alte-leuchte-neue-led-technologie

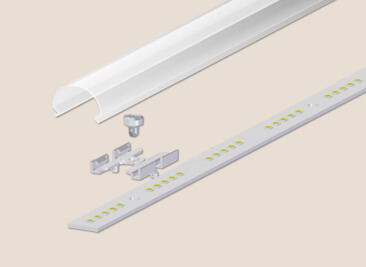

OPTILINE SLIM 14 mm LED-SYSTEM.

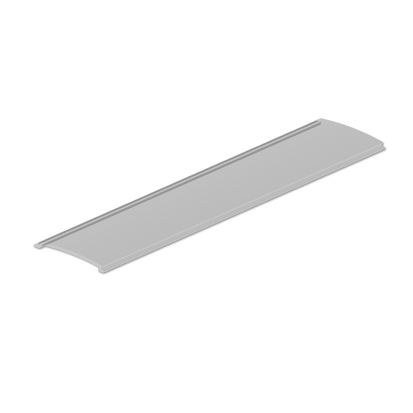

With the OptiLine Slim 14 mm LED system, comprising optic holders, push-to-fix fastening elements and a PMMA diffuser, you convert linear or planar lamps which were originally operated with T5 fluorescent tubes, into modern LED applications with just a few adjustments in conjunction with a 14mm LED PCB. The system is particularly suitable for linear or planar lamps with mirror louvre which were originally fitted with 3 or 4 lamps and are used in the shop, office and hospitality area

The benefits at a glance

  • Extremely slimline system
  • No additional profile required for guidance
  • Cover provides space for thermal expansion of the LED module
  • Diffuser can be mounted using a shadow-free optic holder and P2F fastening element
  • Simple, tool-free mounting thanks to latching or insertion method
  • Even light distribution
  • Unchanged lamp design
  • simple upgrade to LED technology
  • Verdrahtung auch nach der Optikmontage möglich
  • Wiring also possible after optics assembly
