RECEPTACLE – THE BASIS FOR OUTDOOR LIGHT SENSORS.

Zhaga Book 18 receptacle connection socket
Interface for mounting communication and sensor units
in outdoor lights.

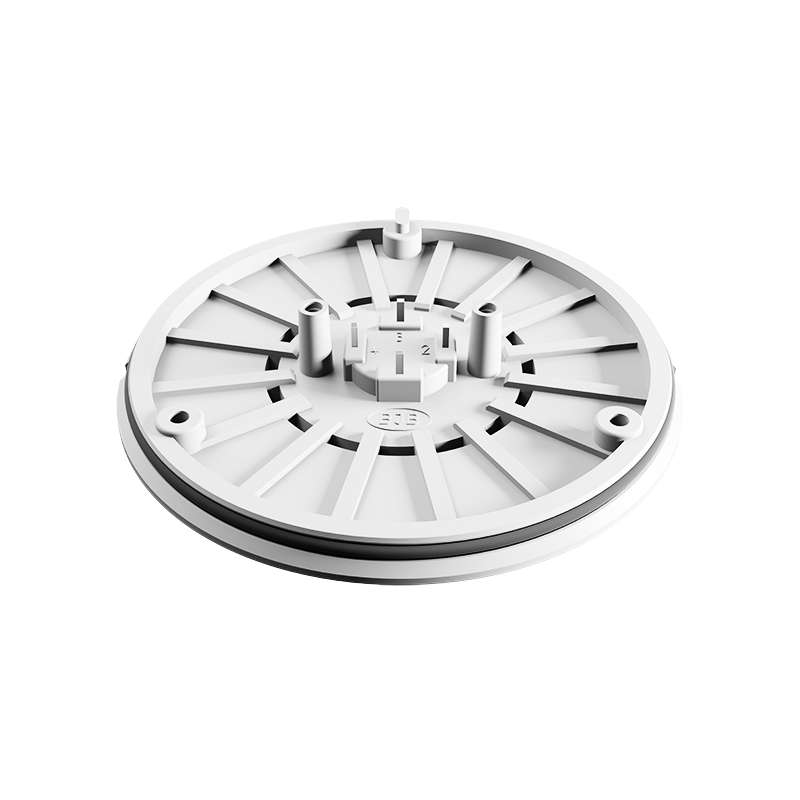

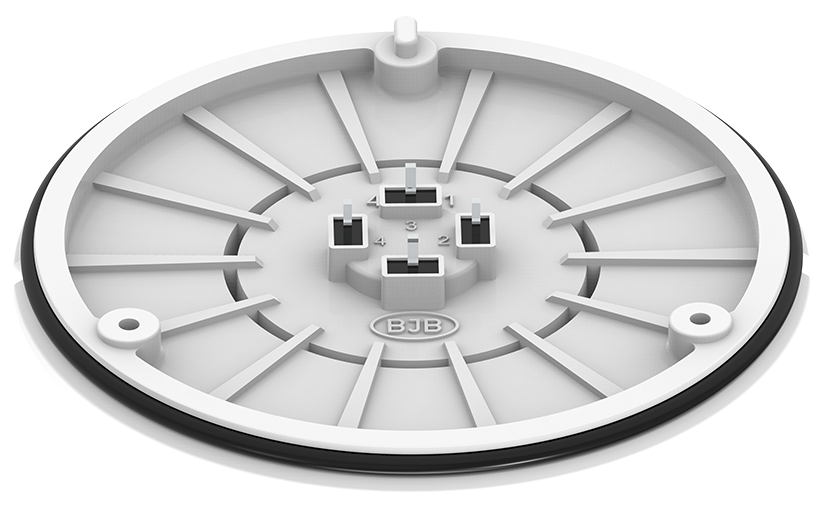

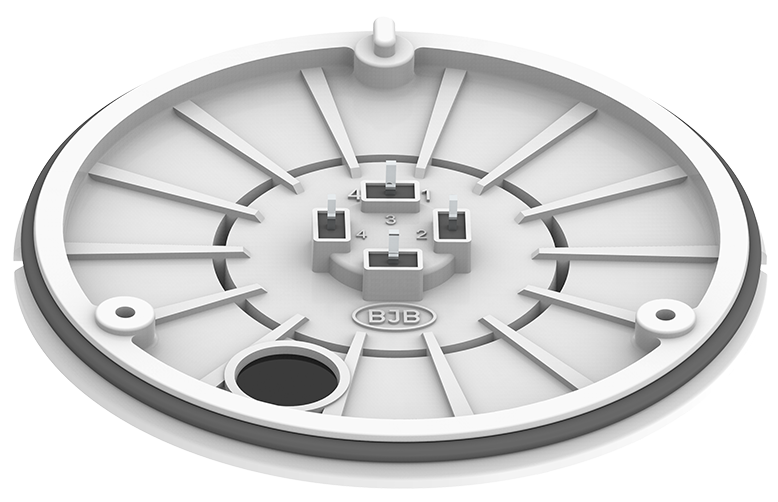

Base plate for receptacles 47.121.U30x.80 according to Zhaga Book 18 for application of sensor or communication units
47.921.U801.81
Details

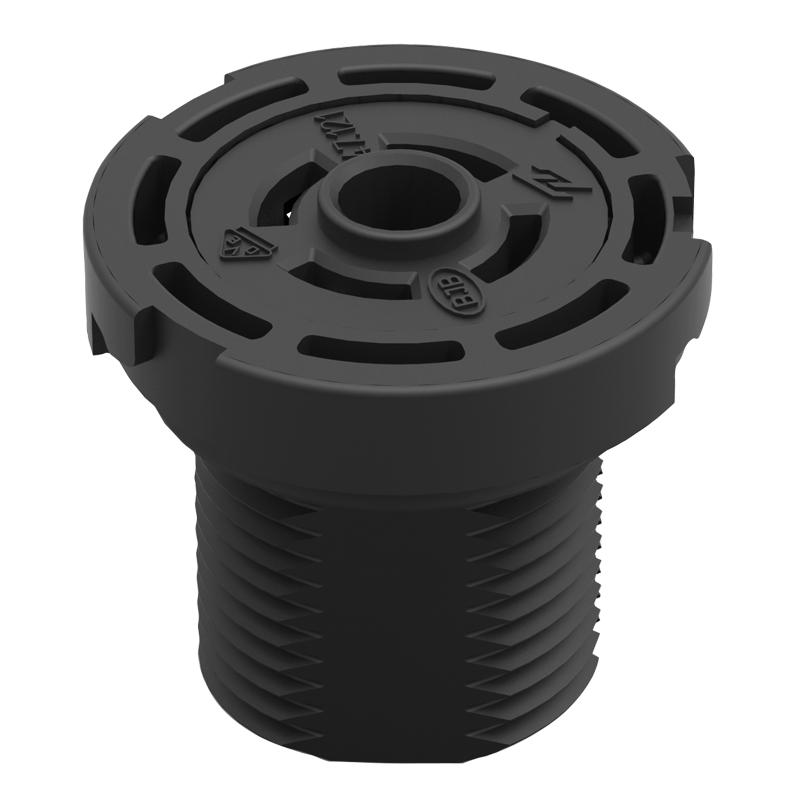

Receptacle for O ring seal and BJB metal sheet cut-out for communication and sensor units
47.121.U304.80
Details

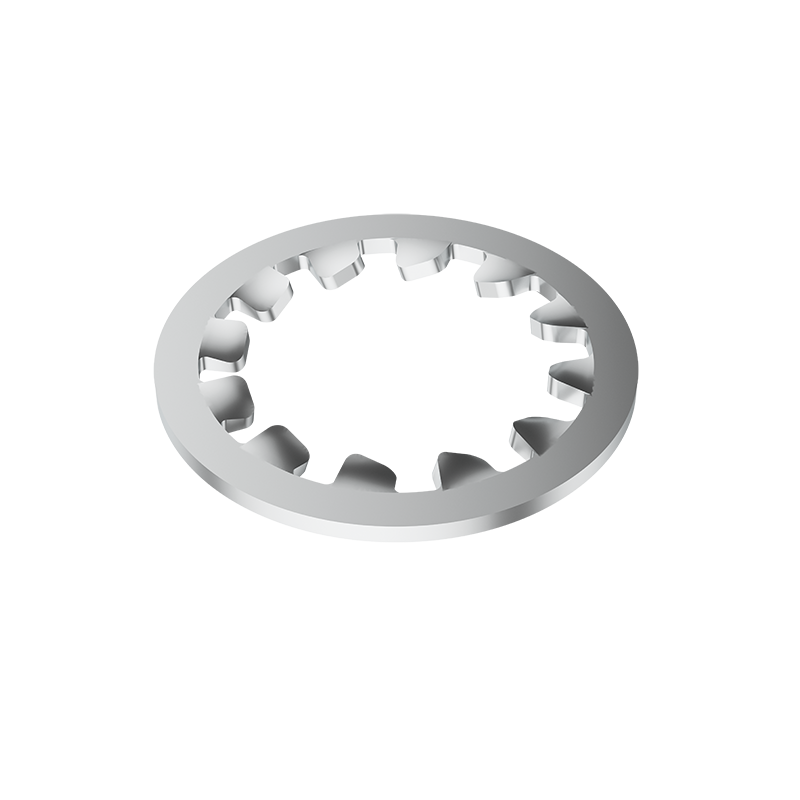

Lock washer M20 for the fixing of the receptacle 47.121
47.121.-702.14
Details

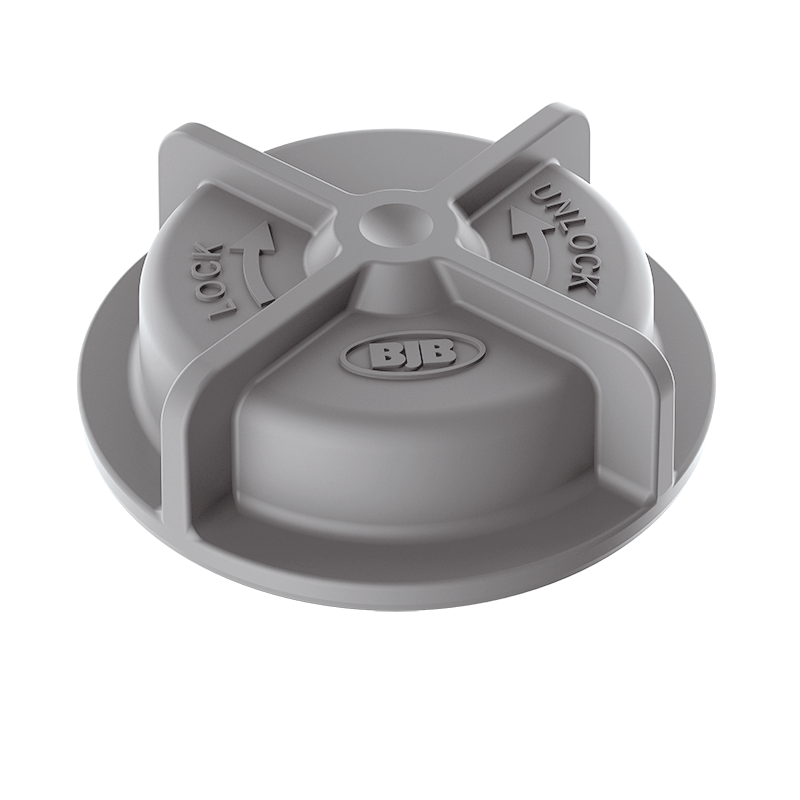

Sealing cap
47.121.-303.93
Details
Receptacle for communication and sensor units
47.121.U301.80
Details
Sealing cap
47.121.-303.80
Details

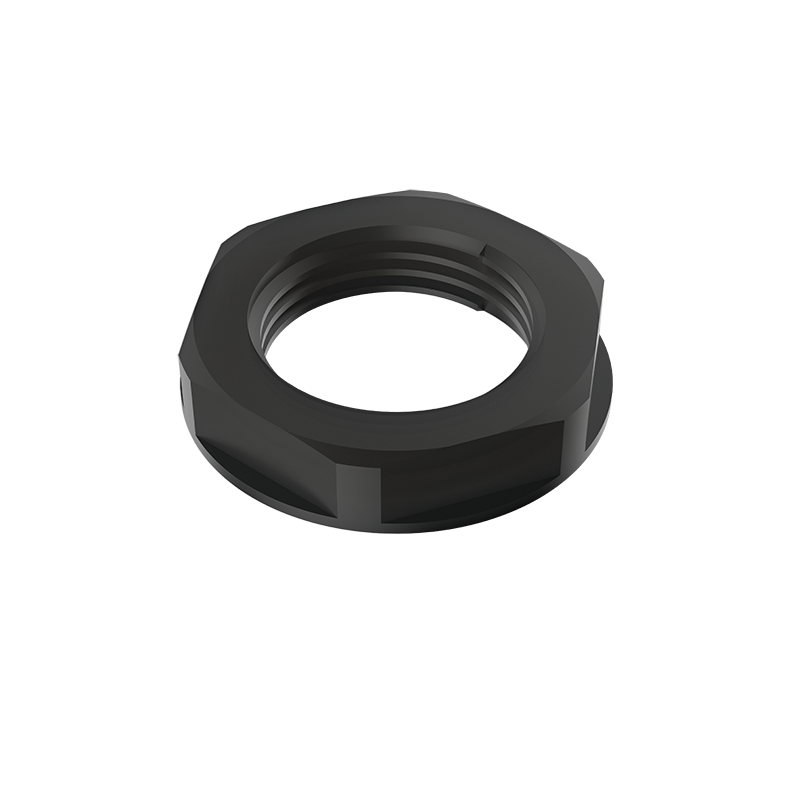

Locknut M20 x 1.5 mm for the fixing of the receptacle 47.121
47.121.-305.80
Details

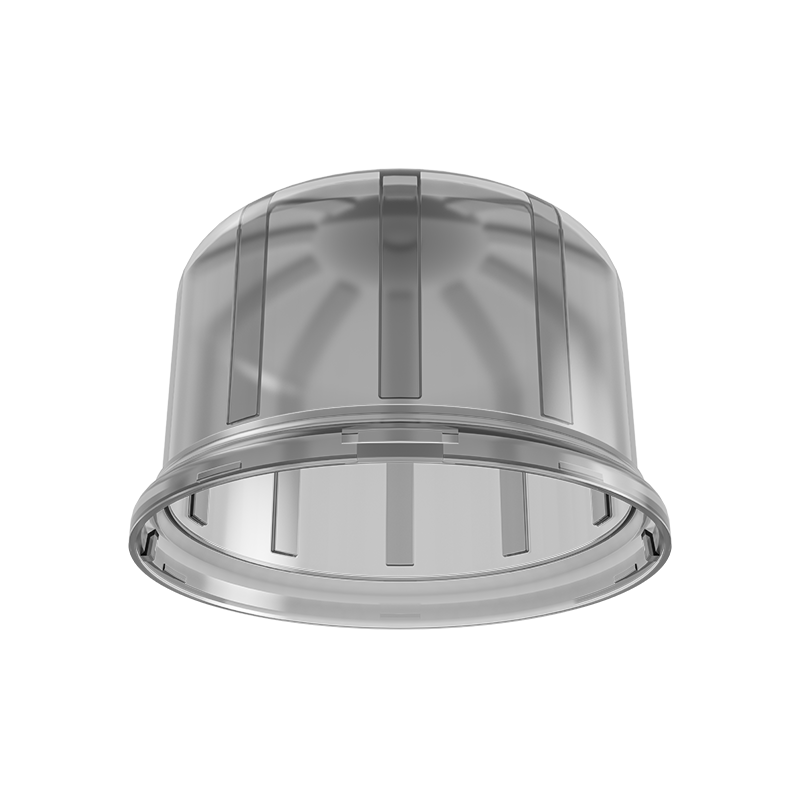

Cover for base plate with twist protection
47.921.-802.68
Details

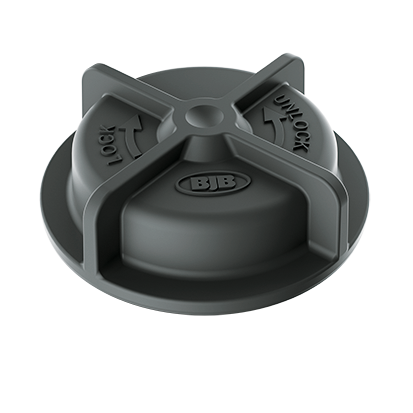

Sealing cap
47.121.-303.90
Details

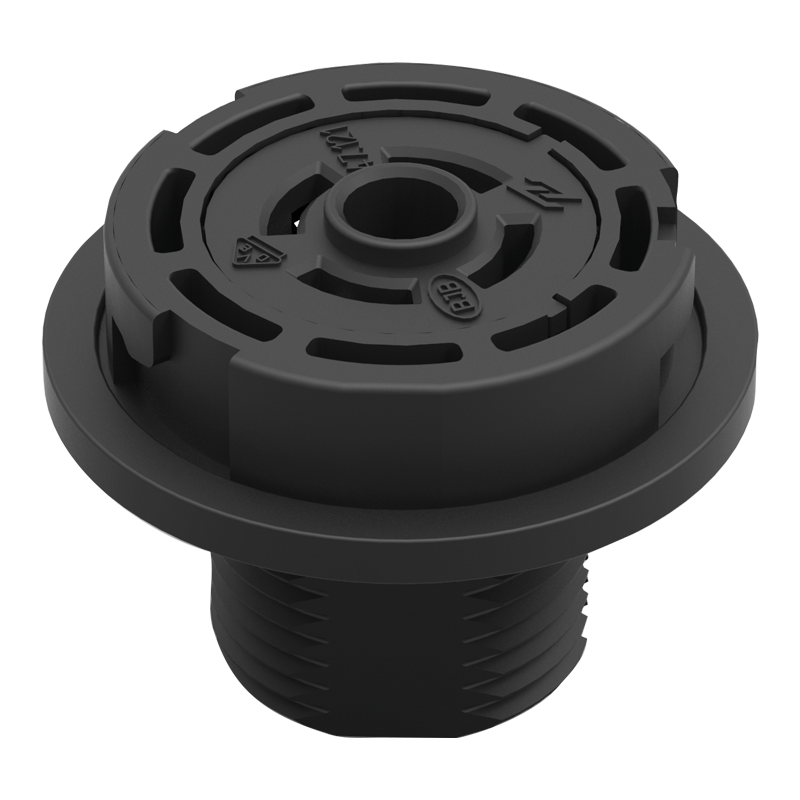

Receptacle with attached flat seal for standardised metal sheet cut-out for communication and sensor units
47.121.U303.80
Details

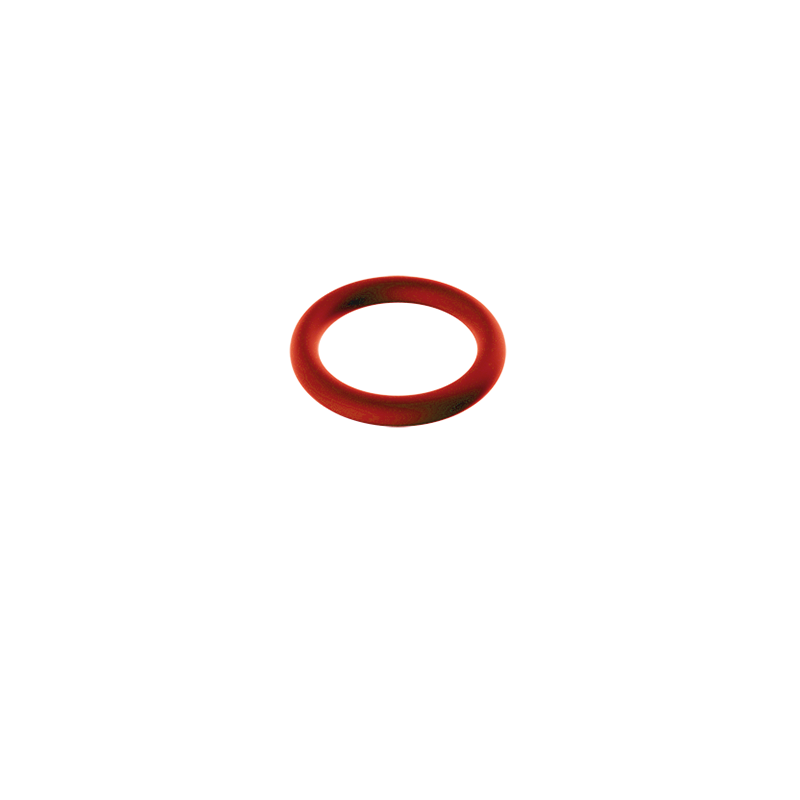

O-Seal for the fixing of the receptacle 47.121
47.121.-705.84
Details

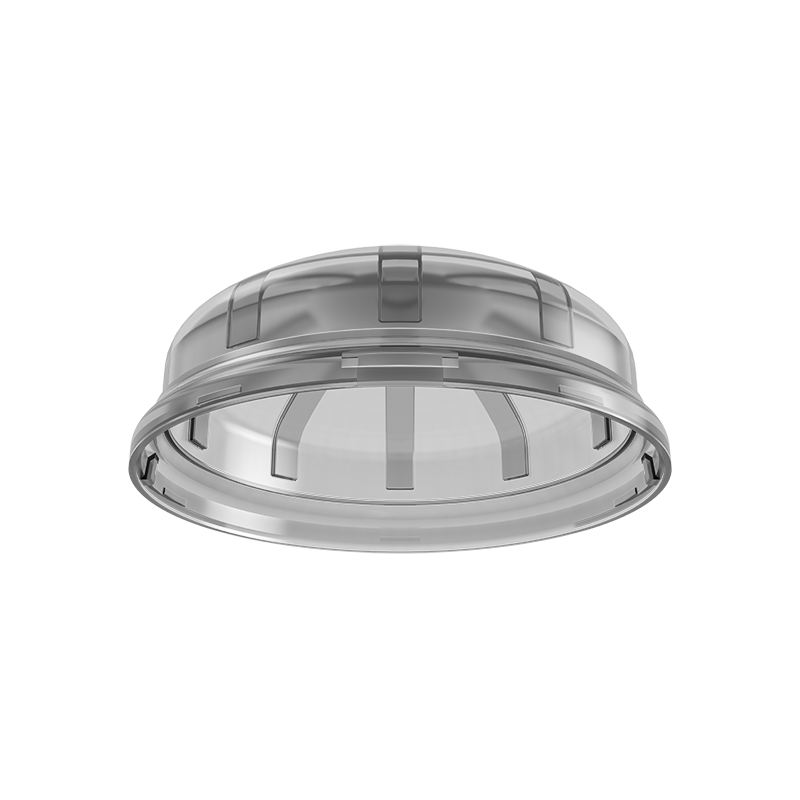

Cover for base plate with twist protection
47.921.-801.68
Details

The universal interface for smart LED street lamps and outdoor lights as per Zhaga Book 18. Smart city solutions are one of the big issues of the future when it comes to urban development in the public realm. The connection socket is a complete electromechanical interface for mounting communication and sensor units. When using certified drivers which are compatible with sensor technology, the connection socket assembly is suitable for a plug-in sensor module with twist lock. For communication and data transfer, the module is provided with DC power and a DALI 2 or 2-wire bus. The fourth connection is reserved as a digital I/A port. The compact design, fully compliant with the IP66 standard, allows for a sensor module to be mounted on lane and street lights and area lights, facing upwards, to the side or downwards. This connection socket is rounded off by additional accessories.

The benefits at a glance

  • Fast mounting
  • For variable use - top, side or bottom
  • Available for delivery with cover cap or various cover hoods as per IP66 standard

Simple mounting of connection socket with sensor.

With flat or
high, round cover hood.
