CONNECTORS FOR LINEAR LED MODULES.
LED PCB connectors and connection elements.

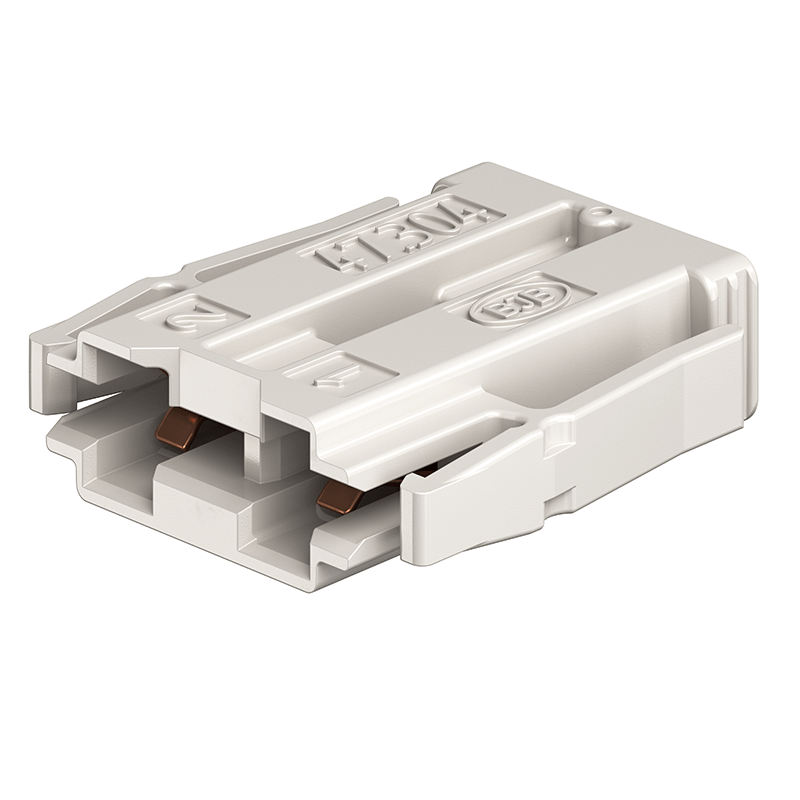

With our PCB connector, we supply a smart solution for establishing contacts for linear and LED PCBs. Our universal connector for LED printed circuit boards has been tried and tested several times over and their durability and easy mounting makes them really appealing. Our 47.304 series which complies with Zhaga Book 26, is simply clipped into the lamp housing. The connector can also be reopened just as easily the same way, and the printed circuit board can then be removed. The best thing about this is the LED PCBs which can be replaced just as easily as conventional lamps.
The benefits at a glance
- 2 pole edge connector for LED boards
- Ideal for fastening and establishing contacts for LED PCBs
- Quick mounting thanks to a simple disconnection of the printed circuit board without the need for tools
- Suitable for upgrade thanks to simple replacement with new LED PCBs
- Reduction of diversity of variants and capital commitment thanks to late stage finishing
- Board contacting on the top side of the LED board
- Simple contacting
- Push in contact for 0.5 mm² rigid wires
- Non SELV solution
- Ideal for use in the interest of a circular economy
Product interchangeability is in our DNA. Simply replace LED boards with the BJB connector to upgrade the boards, for repair or for recycling.
“Late stage finishing” directly on the work platform only during final assembly. That is real flexibility.
