OptiLine Louvre Black & White 2 ft optics grid
Article number:
35.312.2001-0
EAN:
4049853000221
Product information "OptiLine Louvre Black & White 2 ft optics grid"
Louvre 2ft
For use with 1R louvre optics

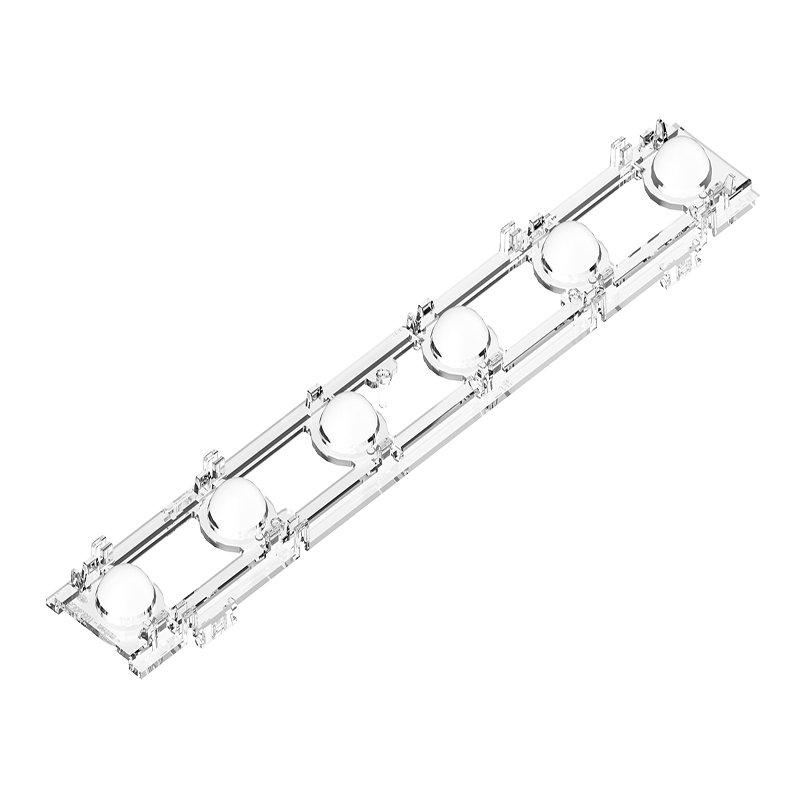

35.106.1001.85 Medium
35.106.1002.85 Wide
35.106.1003.85 Extra wide

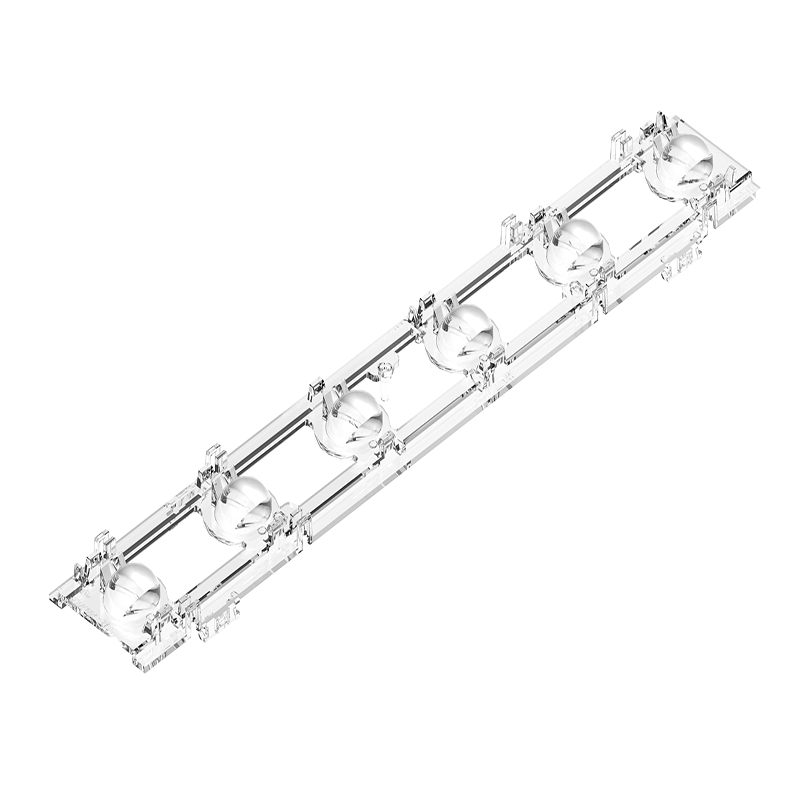

35.106.1004.85 Single asymmetric

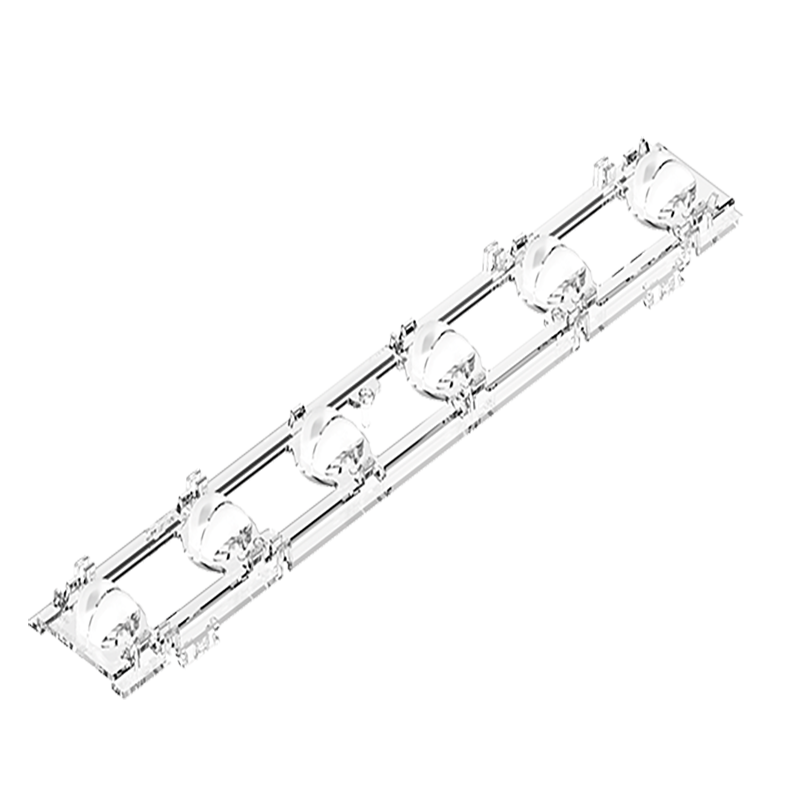

35.106.1005.85 Double asymmetric
Optics and louvre are only available separately
Technical details
• Centering and positioning pins for aligning the louvre
• Snap-in hooks for fixing louvre into the optics
• Overlap at the louvre end - compensates thermal expansion - avoidance of stray light

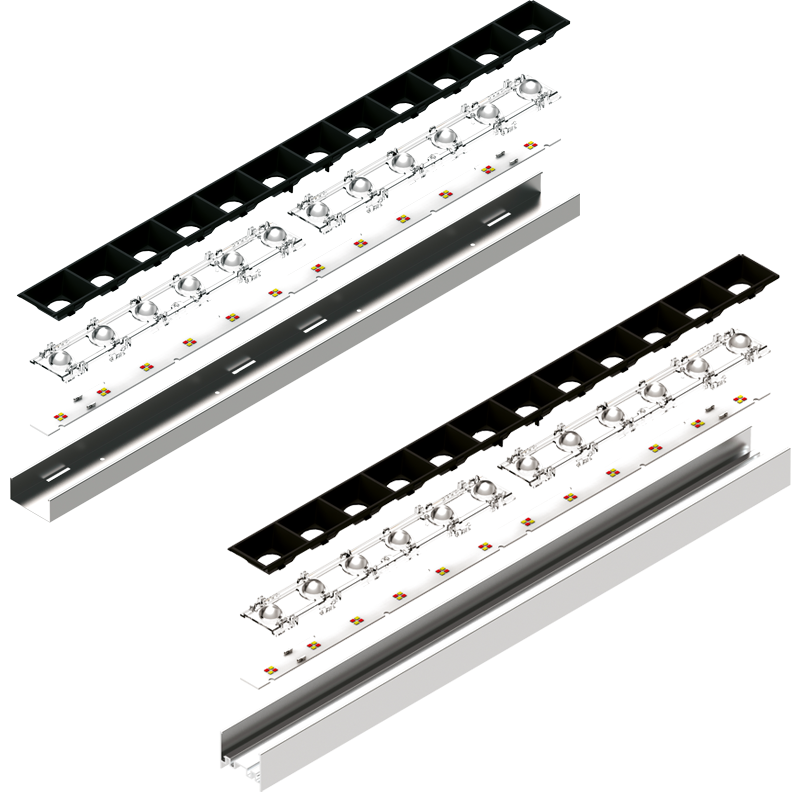

• Seamless integration into the luminaire housing

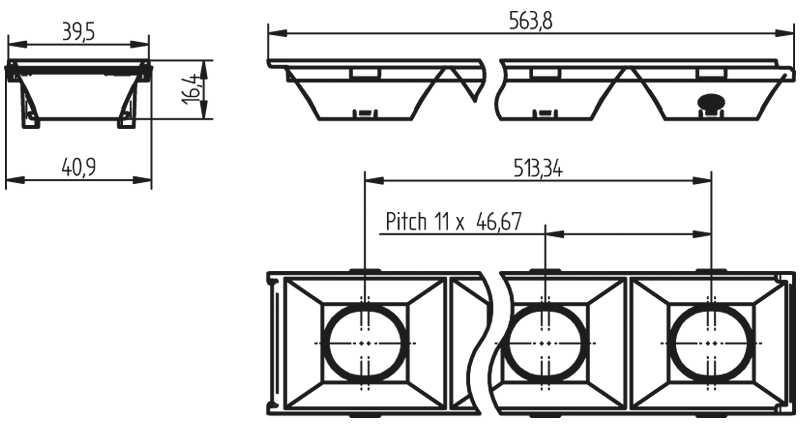

| Color: | white |
|---|---|
| Height: | 16.4 mm |
| Length: | 563.8 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110 °C |
| Packaging quantity: | 72 |
| Pitch distance: | 46.67 mm |
| Producttype: | OptiLine Louvre - single-row 1-Click optics |
| Series: | OptiLine Louvre - single-row 1-Click optics |
| Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
| Width: | 40.9 mm |
| mounting method 1: | Snap into the optics |
| old article number: | 35.312.2001.50 |
