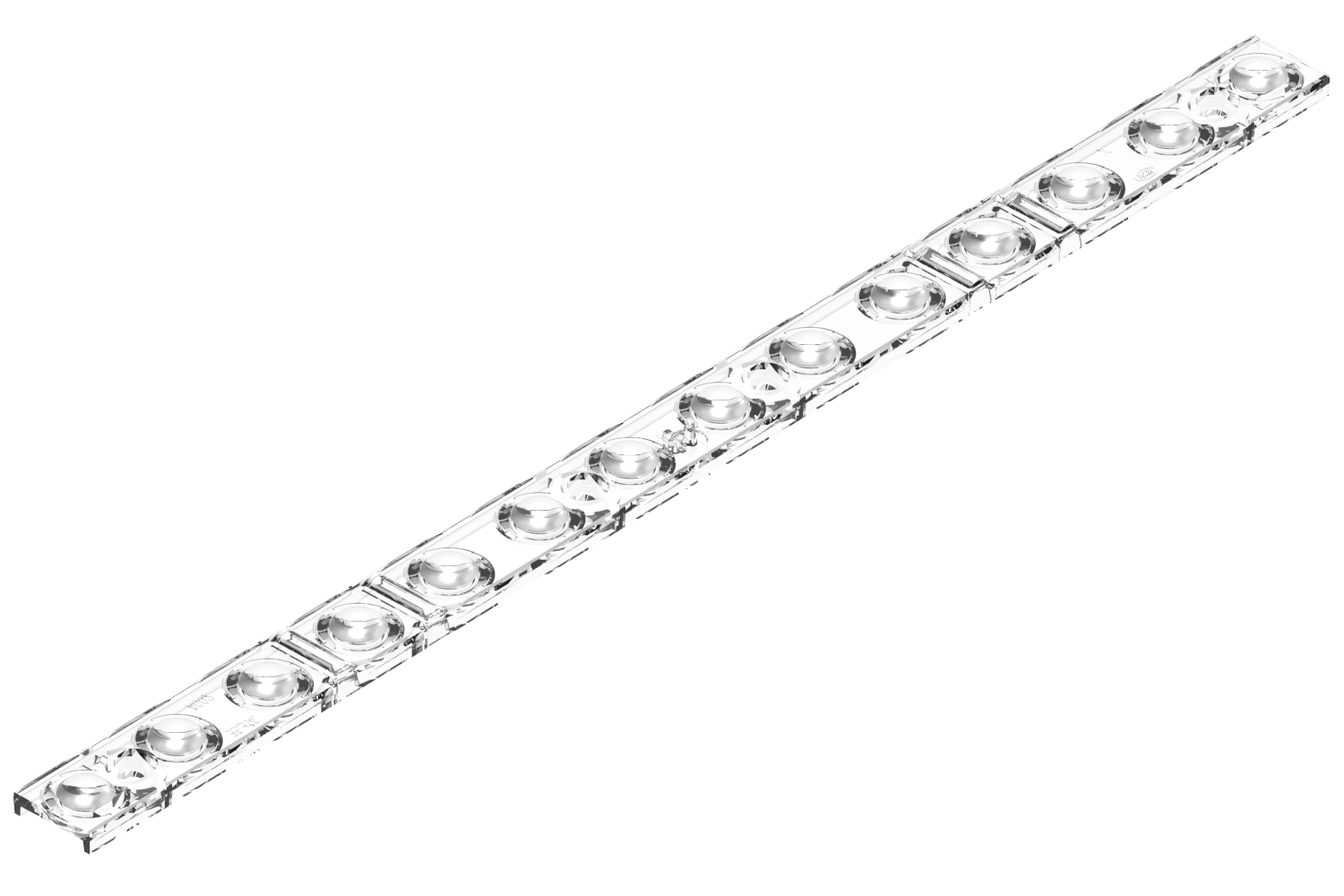

OptiLine Louvre Mini 21 Narrow New
-
max. 110°C
-
Spot
Pitch dependent linear Lens array - Narrow
• The 35.314 (1 ft) optics are designed for use with 35.314.A001 (louvre 1 ft).
• Optics and louvre are only available separately.
• Homogeneous color mixing (also with tunable white applications)
Technical details
• Centering pins for optimal alignment of optics and LED module
• The distance to the circuit board is ensured by the spacers on the optics (1 ft.)
• Fixing the optics and circuit board to the metal sheet by screws (M3 screw)
Application areas: | Applications that require optimal light and minimal glare |
---|---|
Color: | clear |

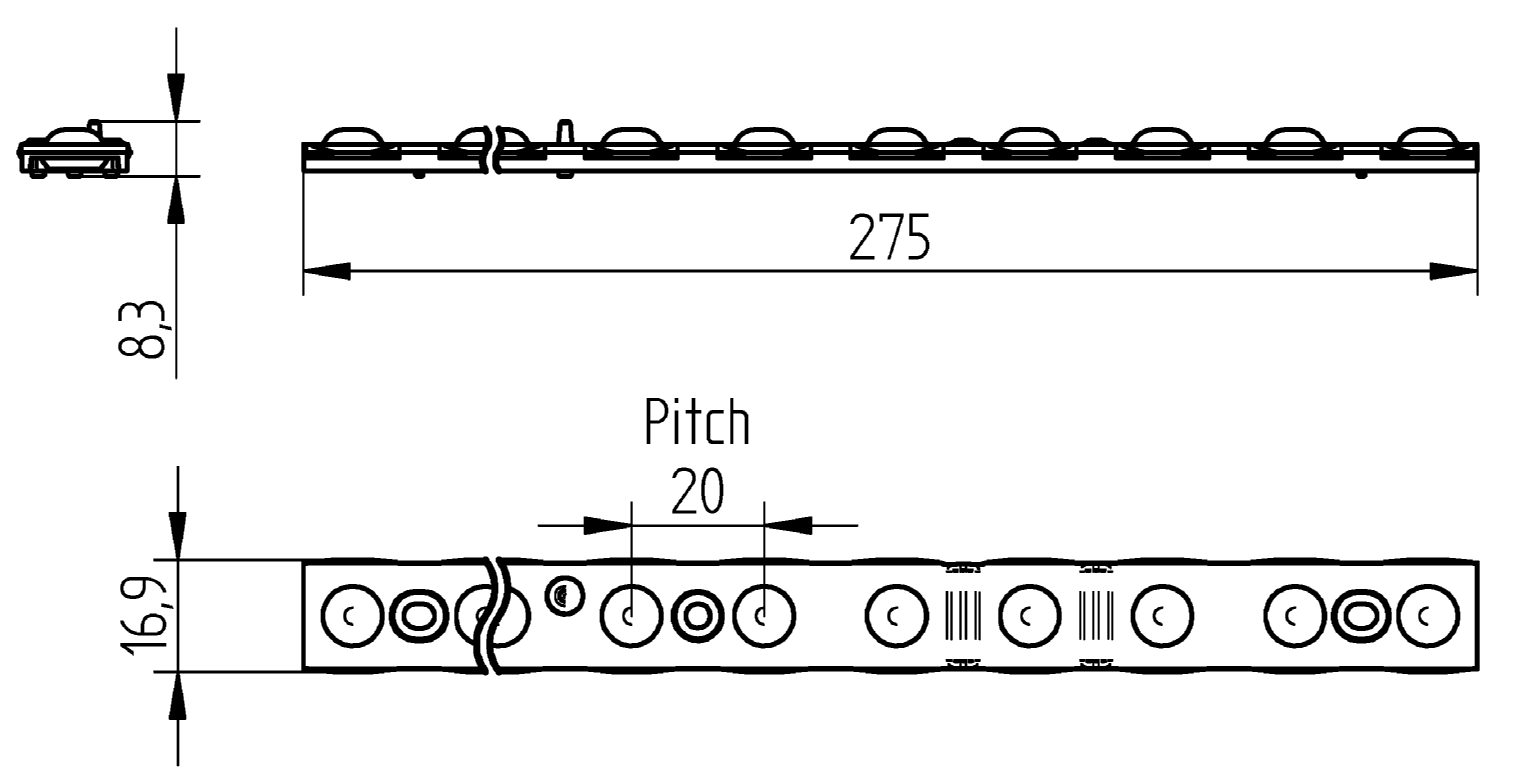

Height: | 8,3 mm |
LED Typ: | Tridonic LLE 20x280mm 750lm 940 LV MD ADV1 |
Length: | 275 mm |

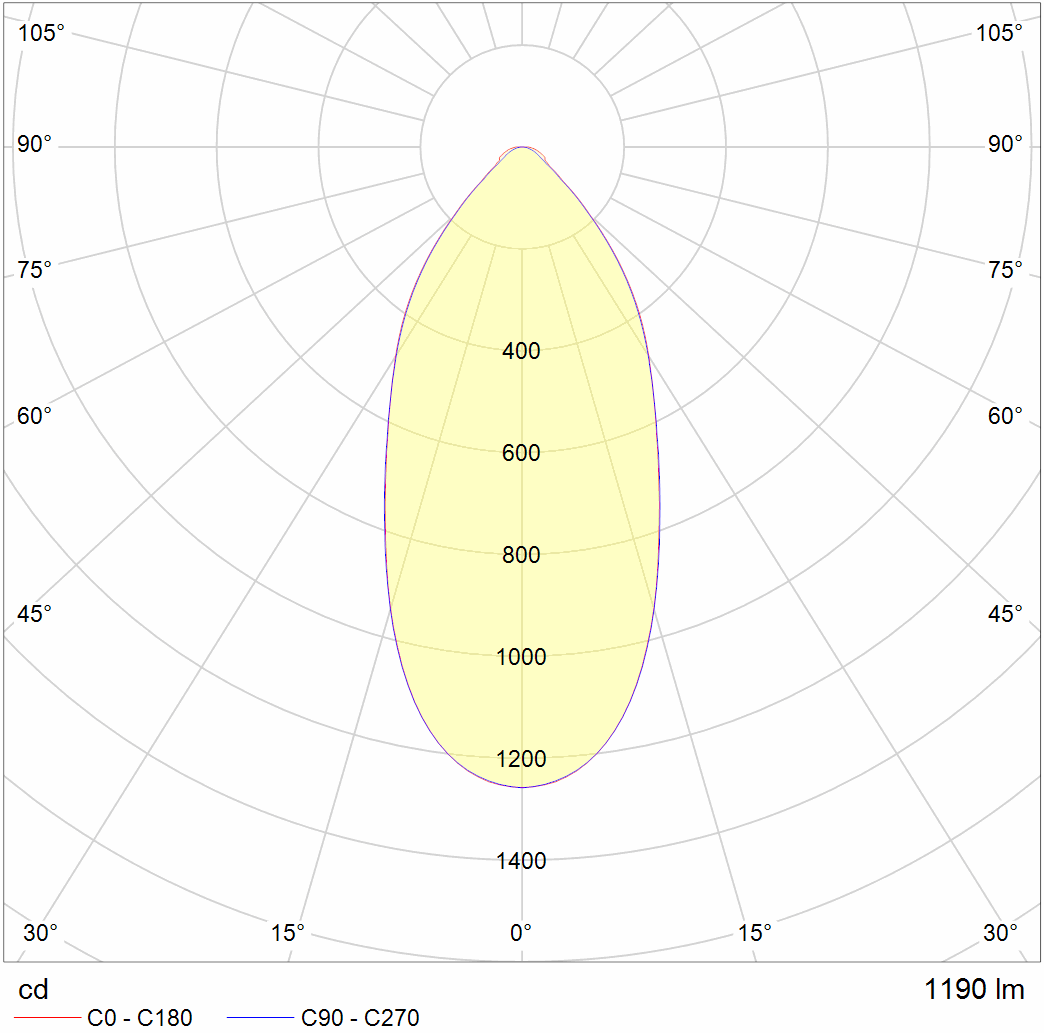

Light Distribution: | Narrow Beam |
Material: | PMMA |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating temperature: | max. 80 °C |
Packaging quantity: | 1 |
Pitch distance: | 20 mm |
Producttype: | OptiLine Louvre Mini 21 |
Series: | OptiLine Louvre Mini 21 |
Suitable for: | for LED dimensions 2835, 3030 |
Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
Weight: | 14,41 g |
Width: | 16,9 mm |
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|
-
