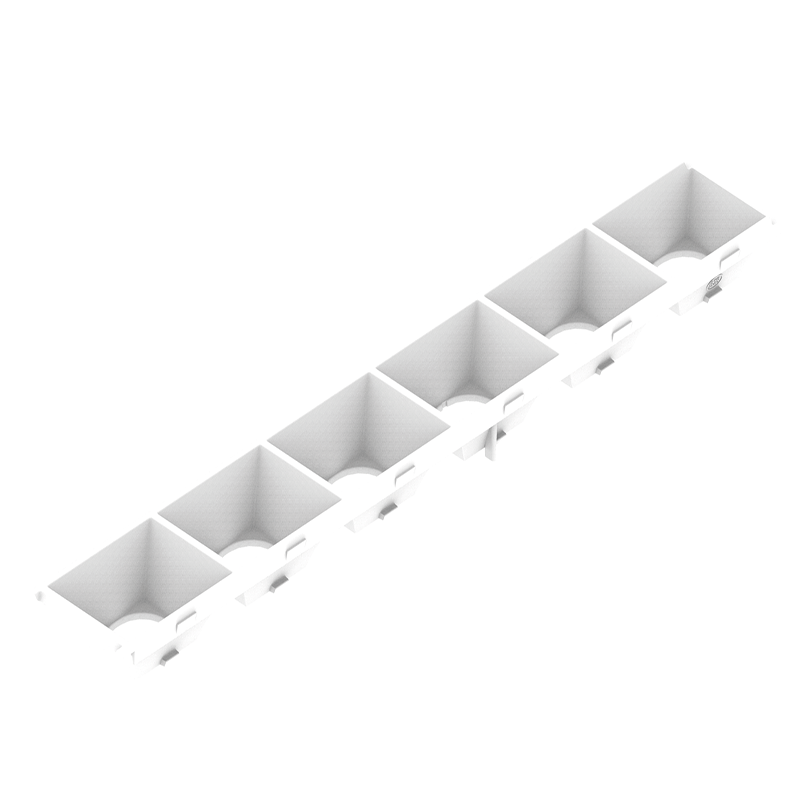

OptiLine Louvre Black & White 1 ft optics grid
Article number:
35.306.2001-0
EAN:
4049853000245
Product information "OptiLine Louvre Black & White 1 ft optics grid"
For use with 1R louvre optics
35.106.1001.85 Medium
35.106.1002.85 Wide
35.106.1003.85 Extra wide
35.106.1004.85 Single asymmetric
35.106.1005.85 Double asymmetric
Optics and louvre are only available separately
Technical details
• Centering and positioning pins for aligning the louvre
• Snap-in hooks for fixing louvre into the optics
• Overlap at the louvre end - compensates thermal expansion - avoidance of stray light
• Seamless integration into the luminaire housing
| Color: | white |
|---|---|
| Height: | 16.4 mm |
| LED Typ: | Philips Fortimo LED-R |
| Length: | 283.8 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110 °C |
| Packaging quantity: | 72 |
| Pitch distance: | 46.67 mm |
| Producttype: | OptiLine Louvre - single-row 1-Click optics |
| Series: | OptiLine Louvre - single-row 1-Click optics |
| Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
| Width: | 40.7 mm |
| mounting method 1: | Snap into the optics |
| old article number: | 35.306.2001.50 |
