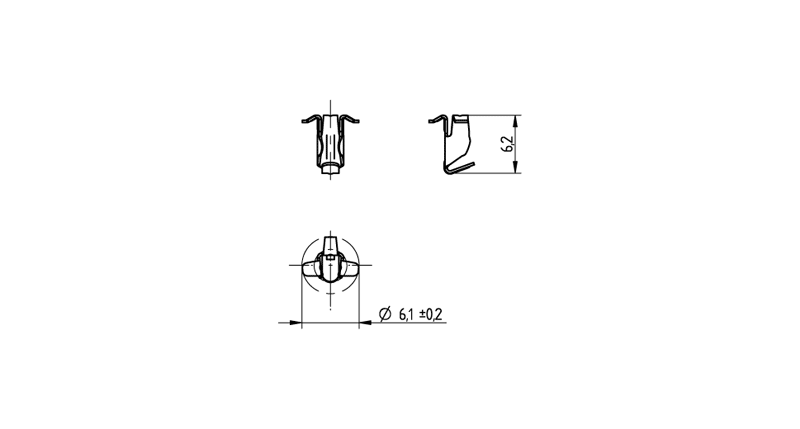

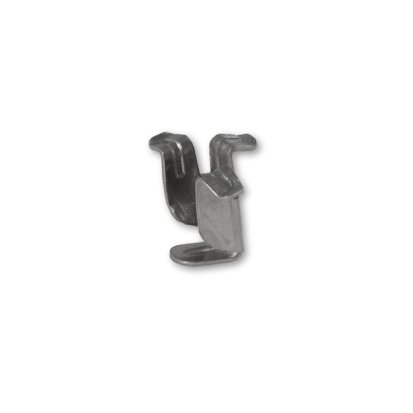

P2F COB Connector
Article number:
28.902.E102-0
EAN:
4049853
Product information "P2F COB Connector"
Easy, quick and secure assembly
No shadowing of the LED, lowest possible design above the LED module while fulfilling attachment and contact pressure functions
Coordinated system guarantees permanent contact pressure for the module by means of very strong but elastic metal spring
After installation a permanent contact force of 20N is guaranteed
Form-fitting snap-in connection
Shock and vibration resistant
Floating connection compensates tolerances and thermal length variations
Maximum clamping thickness .6 mm
No shadowing of the LED, lowest possible design above the LED module while fulfilling attachment and contact pressure functions
Coordinated system guarantees permanent contact pressure for the module by means of very strong but elastic metal spring
After installation a permanent contact force of 20N is guaranteed
Form-fitting snap-in connection
Shock and vibration resistant
Floating connection compensates tolerances and thermal length variations
Maximum clamping thickness .6 mm
| Material: | CrNi |
|---|---|
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 1 |
| Producttype: | P2F COB Fixing Elements for fixation of COB Connectors on heat sinks |
| Series: | P2F COB Fixing Elements for fixation of COB Connectors on heat sinks |
| Suitable for: | for COB connectors on heat sinks |
| Weight: | 1 g |

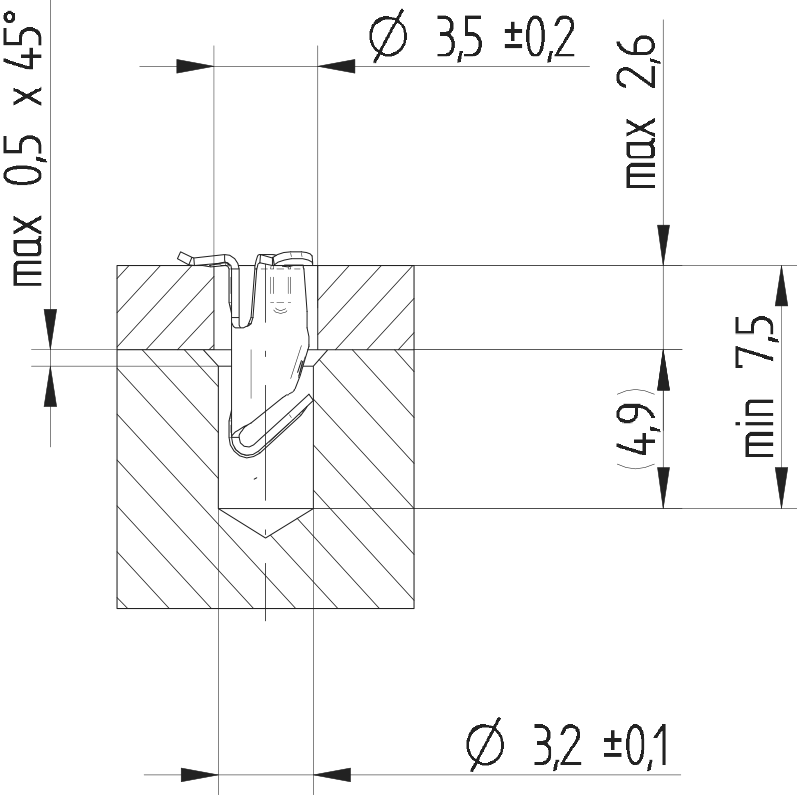

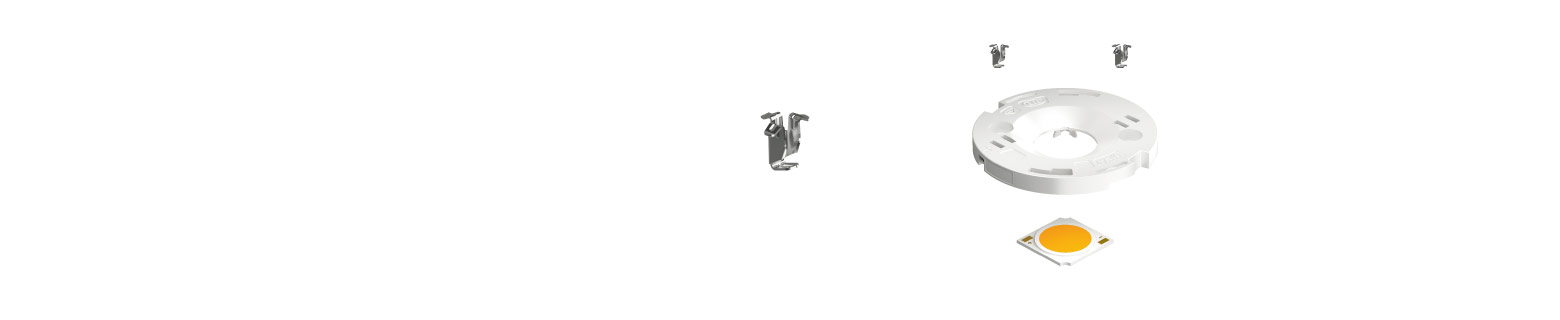

| mounting method 1: | Push in fixing in blind holes |
| old article number: | 28.902.-102.10 |
