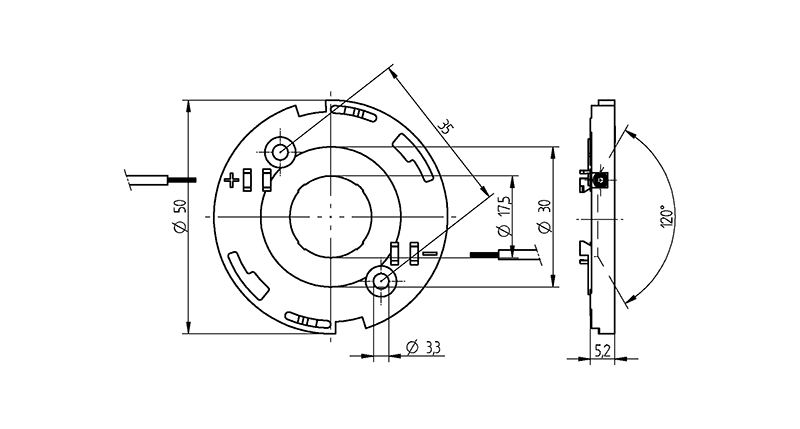

COB Connector Ø50 LED array 19x19
Article number:
47.319.2026-0
EAN:
4049853
-
-
0,75 mm²
-
0,75 mm²
-
Product information "COB Connector Ø50 LED array 19x19"
With integrated reflector interface
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
| Conductor cross-section: | 0.75 mm² |
|---|---|
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 130°C |
| Packaging quantity: | 420 |
| Pre-centring for COB: | Yes |
| Producttype: | Spotlight Connectors and Accessories |
| Rating: | 3A / 150 VDC |
| Series: | COB Connectors - 47.319 |
| Weight: | 5 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| mounting method 2: | P2F fixing with 28.902.-102 |
| old article number: | 47.319.2026.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 47.319.2026-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity5852779 | ||
| 47.319.2026-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 47.319.2026-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 |
Suitable for the following LED types
| LED manufacturer | LED designation | More information |
|---|---|---|
| Bridgelux | DS101 V13 Gen. 7 | www.bridgelux.com |
| Bridgelux | DS101 V13B- Gen 7 | www.bridgelux.com |
| Citizen | CLL030 | ce.citizen.co.jp |
| Citizen | CLL032 | ce.citizen.co.jp |
| Citizen | CLU03H | ce.citizen.co.jp |
| Citizen | CLU03Q Serie 9 | ce.citizen.co.jp |
| Citizen | CLU036 | ce.citizen.co.jp |
| Citizen | CLU038 | ce.citizen.co.jp |
| Citizen | CLU720 | ce.citizen.co.jp |
| Citizen | CLU721 | ce.citizen.co.jp |
| Cree | CMU1516 | cree-led.com |
| Cree | CMU1519 | cree-led.com |
| Cree | CMU1526 | cree-led.com |
| Cree | CMU1532 | cree-led.com |
| Everlight | Xuan1919 | www.everlight.com |
| Itswell | IWC-B2RR-XX-N1206 | www.itswell.com |
| LEDtech | LP30N3-84N-B131299 | www.ledtech.com.tw |
| Lextar | PB26H01 V4 | www.lextar.com |
| Liteon | M045 | www.liteon.com |
| Luminus | CGM-14 Gen4 | www.luminus.com |
| Luminus | CHM-9-XH20 | www.luminus.com |
| Luminus | CHM-11-XH20 | www.luminus.com |
| Luminus | CHM-11XH00 | www.luminus.com |
| Luminus | CHM-14 GEN1 AC00 -NRND | www.luminus.com |
| Luminus | CHM-14 GEN2 AC10 -NRND | www.luminus.com |
| Luminus | CIM-14 GEN3 AC30 | www.luminus.com |
| Luminus | CIM-14 GEN4 | www.luminus.com |
| Luminus | CLM-14 AC GEN4 | www.luminus.com |
| Luminus | CLM-14 GEN3 AC30 | www.luminus.com |
| Luminus | CXM-11 GEN3 AC30 | www.luminus.com |
| Luminus | CXM-14 GEN1 AC00 -NRND | www.luminus.com |
| Luminus | CXM-14 GEN2 AC00 -NRND | www.luminus.com |
| Luminus | CXM-14 GEN3 AC30 | www.luminus.com |
| Luminus | CXM-14 GEN4 AC40 | www.luminus.com |
| Luminus | CXM-14AC purple / HortiLum COB LED Series Gen1 | www.luminus.com |
| OSRAM Opto Semiconductors | Soleriq S13 / GW KAGGB3.CM / GW KAFGB5.BM | www.osram-os.com |
| OSRAM Opto Semiconductors | Soleriq S13 / GW KAGHB3.EM | www.osram-os.com |
| OSRAM Opto Semiconductors | Soleriq S13 / GW KAGJBx.EM/CM/DM/BM | www.osram-os.com |
| OSRAM Opto Semiconductors | Soleriq S13 / GW KAGLBx.PM/EM/CM/DM/BM | www.osram-os.com |
| OSRAM Opto Semiconductors | Soleriq S13 / GW KAGMB3.PM/EM/CM | www.osram-os.com |
| OSRAM Opto Semiconductors | Soleriq S13 Gen. 2 | www.osram-os.com |
| OSRAM Opto Semiconductors | Soleriq S15 Generation 2 | www.osram-os.com |
| Philips | Fortimo SLM 1211 L19 2828G6 | www.lighting.philips.co.uk/oem-emea |
| Philips | Fortimo SLM 1211 L19 2828G7 | www.lighting.philips.co.uk/oem-emea |
| Philips | Fortimo SLM 1216 L23 2828G6 | www.lighting.philips.co.uk/oem-emea |
| Philips | Fortimo SLM C 1205 L15 1919 G7N | www.lighting.philips.co.uk/oem-emea |
| Philips | Fortimo SLM C 1208 L15 1919 G7N | www.lighting.philips.co.uk/oem-emea |
| Prolight Opto | PACB 032 | www.prolightopto.com |
| Prolight Opto | PACF-57 | www.prolightopto.com |
| Samsung | LC016D | www.samsung.com/led |
| Samsung | LC016D Gen. 2 | www.samsung.com/led |
| Samsung | LC016D Gen. 4 | www.samsung.com/led |
| Samsung | LC019D | www.samsung.com/led |
| Samsung | LC019D Gen. 2 | www.samsung.com/led |
| Samsung | LC019D Gen. 4 | www.samsung.com/led |
| Samsung | LC020C Gen. 2 | www.samsung.com/led |
| Samsung | LC026D | www.samsung.com/led |
| Samsung | LC026D Gen. 2 | www.samsung.com/led |
| Samsung | LC026D Gen. 4 | www.samsung.com/led |
| Samsung | LC030C Gen. 2 | www.samsung.com/led |
| Samsung | LC033D Gen. 2 | www.samsung.com/led |
| Samsung | LC033D Gen. 4 | www.samsung.com/led |
| Samsung | LC040C Gen. 2 | www.samsung.com/led |
| Samsung | LC040D Gen. 2 + Gen. 3 + Gen. 4 | www.samsung.com/led |
| Seoul Semiconductor | SAWS1564A [SunLike] | www.seoulsemicon.com |
| Seoul Semiconductor | SAWS1566A [SunLike] | www.seoulsemicon.com |
| Seoul Semiconductor | SAWX1063A | www.seoulsemicon.com |
| Seoul Semiconductor | ZC12 | www.seoulsemicon.com |
| Seoul Semiconductor | ZC18 / SDWx3F1C | www.seoulsemicon.com |
| Sunpu | G17 | www.sunpu-opto.com |
| Toyoda | Gosei 19x19 | www.toyoda-gosei.com |
| Tridonic | SLE 15mm R SNC8 | www.tridonic.com |
| Tridonic | SLE ADV8 17mm 840 R | www.tridonic.com |
| Tridonic | SLE ADV8 21mm 840 R | www.tridonic.com |
| Tridonic | SLE G1 11mm 1000lm 927 Sunset R EXC | www.tridonic.com |
| Tridonic | SLE G1 15mm 2000lm 927 Sunset R EXC | www.tridonic.com |
| Tridonic | SLE G1- Sunset, LES Ø 11 | www.tridonic.com |
| Tridonic | SLE G1- Sunset, LES Ø 15 | www.tridonic.com |
| Tridonic | SLE G4/G5 LES 15 | www.tridonic.com |
| Tridonic | SLE G5 LES15 | www.tridonic.com |
| Tridonic | SLE G6 15mm 3000lm | www.tridonic.com |
| Tridonic | SLE G6 17mm 4000lm | www.tridonic.com |
| Tridonic | SLE G6 LES 15 | www.tridonic.com |
| Tridonic | SLE G6 LES 17 | www.tridonic.com |
| Tridonic | SLE G7 13mm 3000lm xx0 R ADV | www.tridonic.com |
| Tridonic | SLE G7 15mm 4000lm xx0 R ADV | www.tridonic.com |
| Tridonic | SLE G7 LES 13+15 | www.tridonic.com |
| Xicato | XOB14 LES 14,5 | www.xicato.com |
| Xicato | XOB 14.5 mm / XOB14xxxx50X3621 | www.xicato.com |
-
-
0,75 mm²
-
0,75 mm²
-

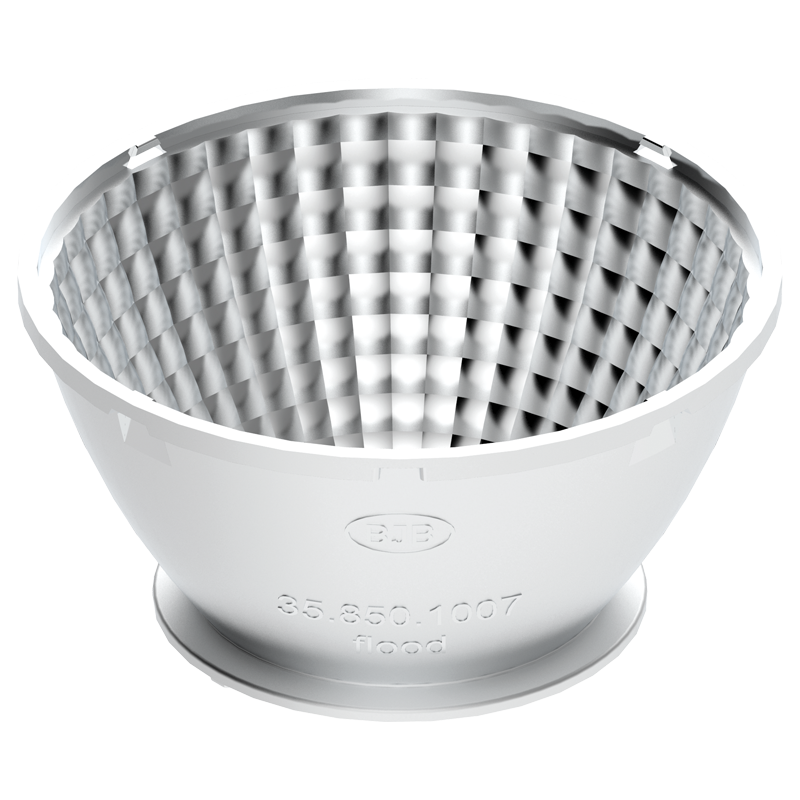

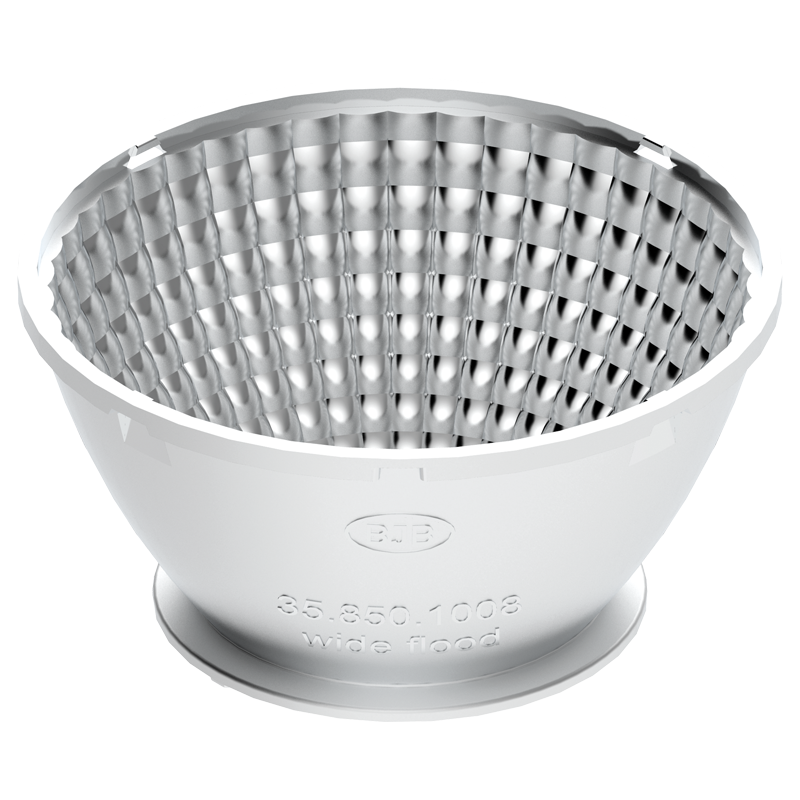

Accessories
