THE LINEAR LOW-GLARE LED DARKLIGHT LOUVRE OPTICS FOR THE HIGHEST QUALITY REQUIREMENTS.
OptiLine Louvre – the dark side of light.

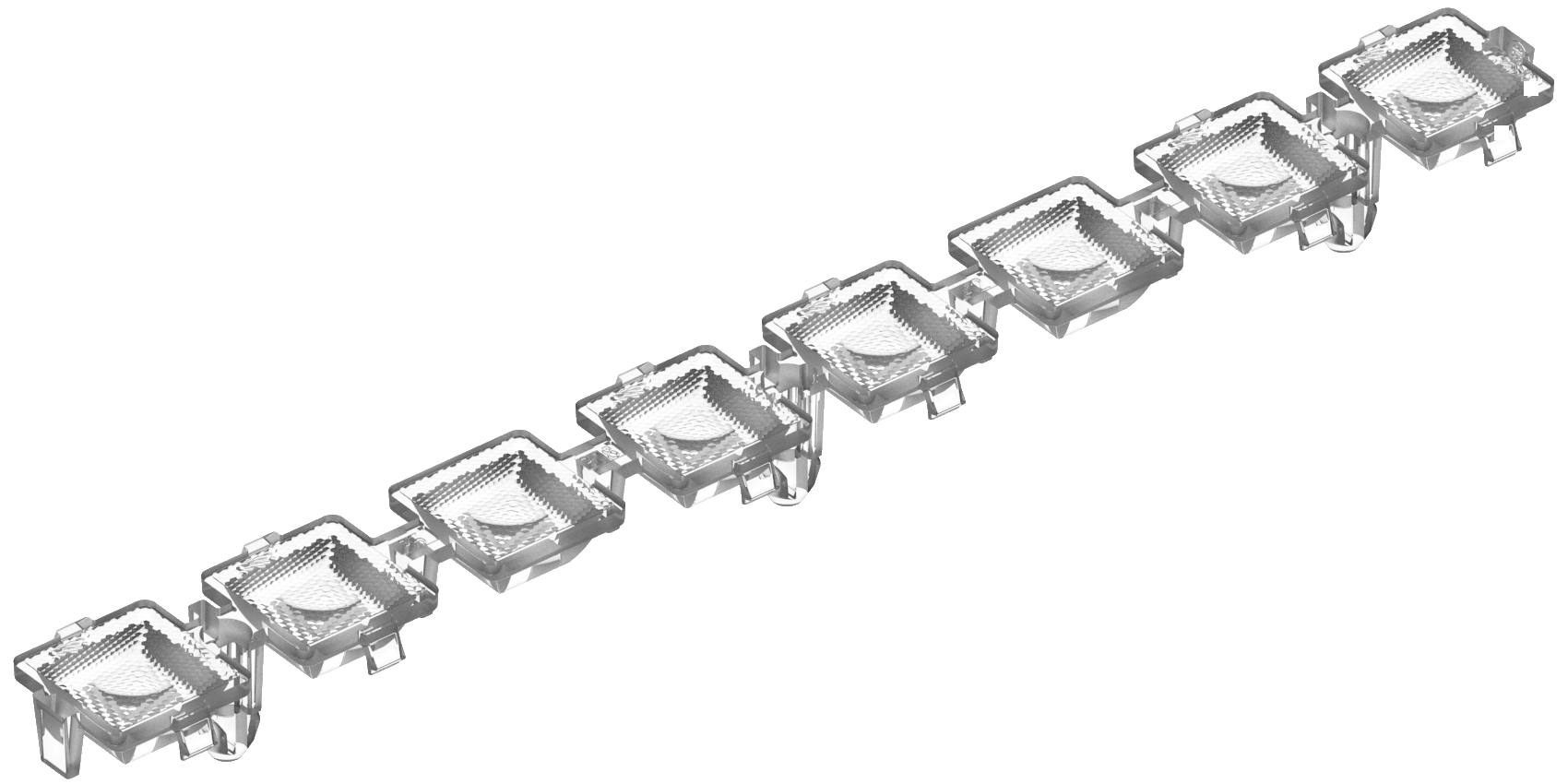

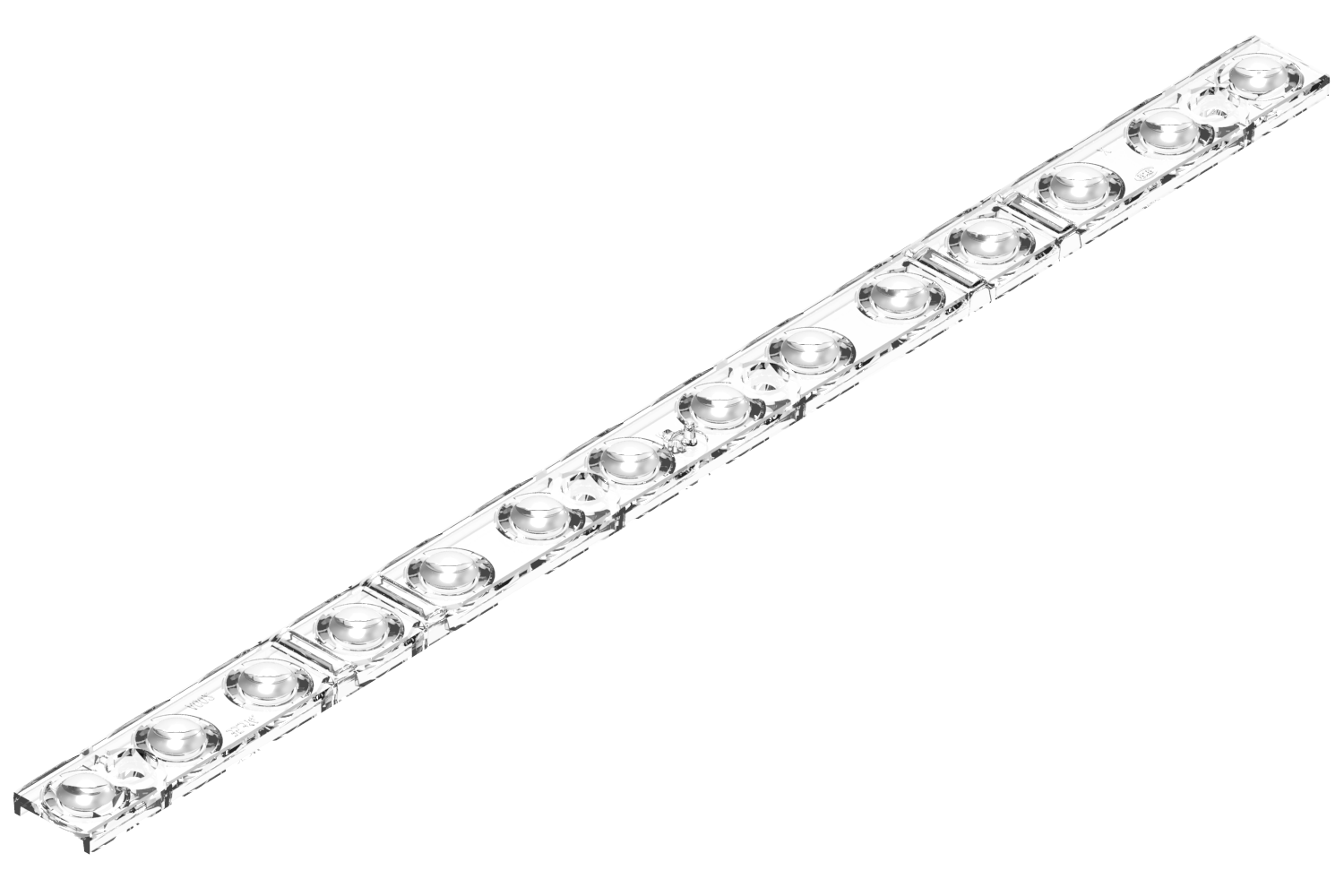

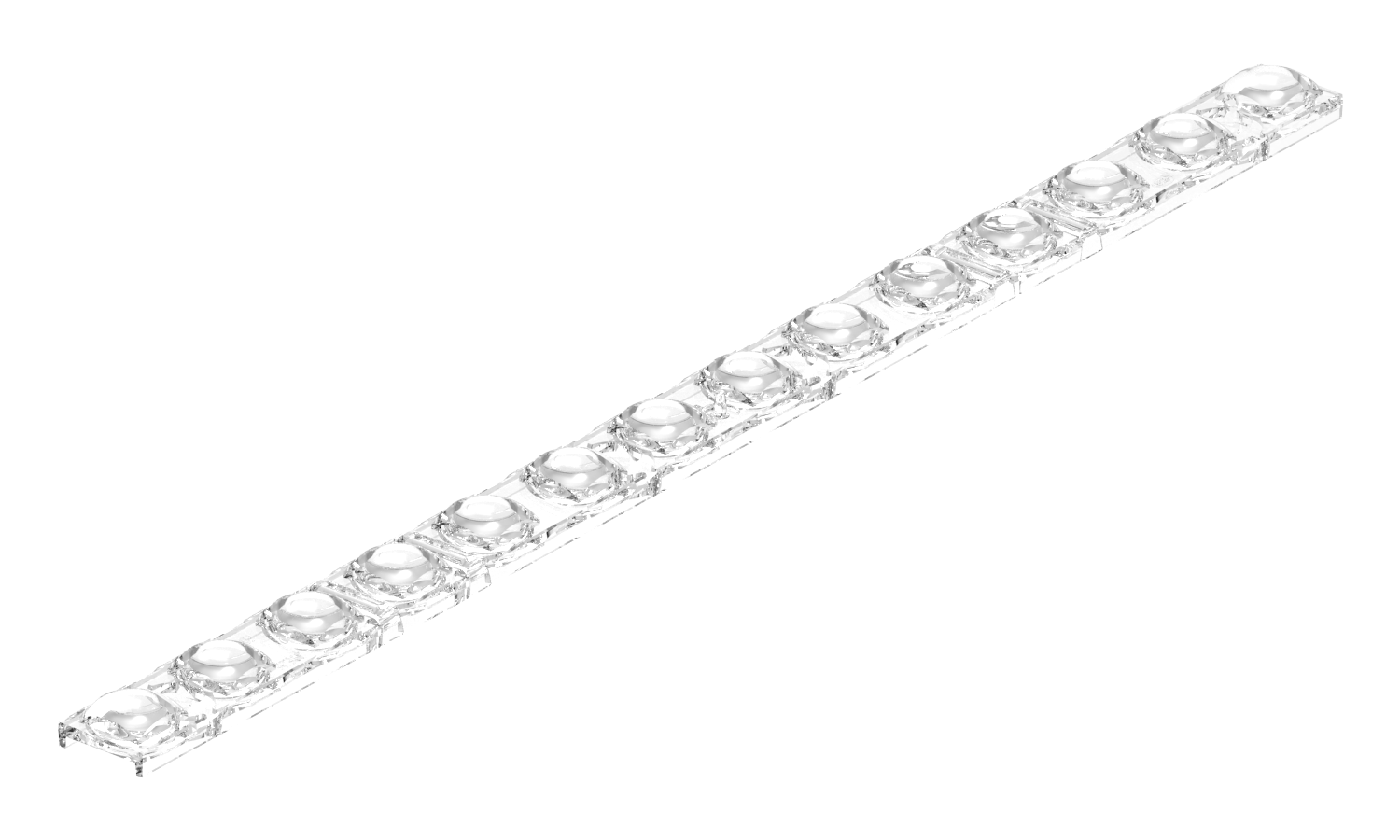

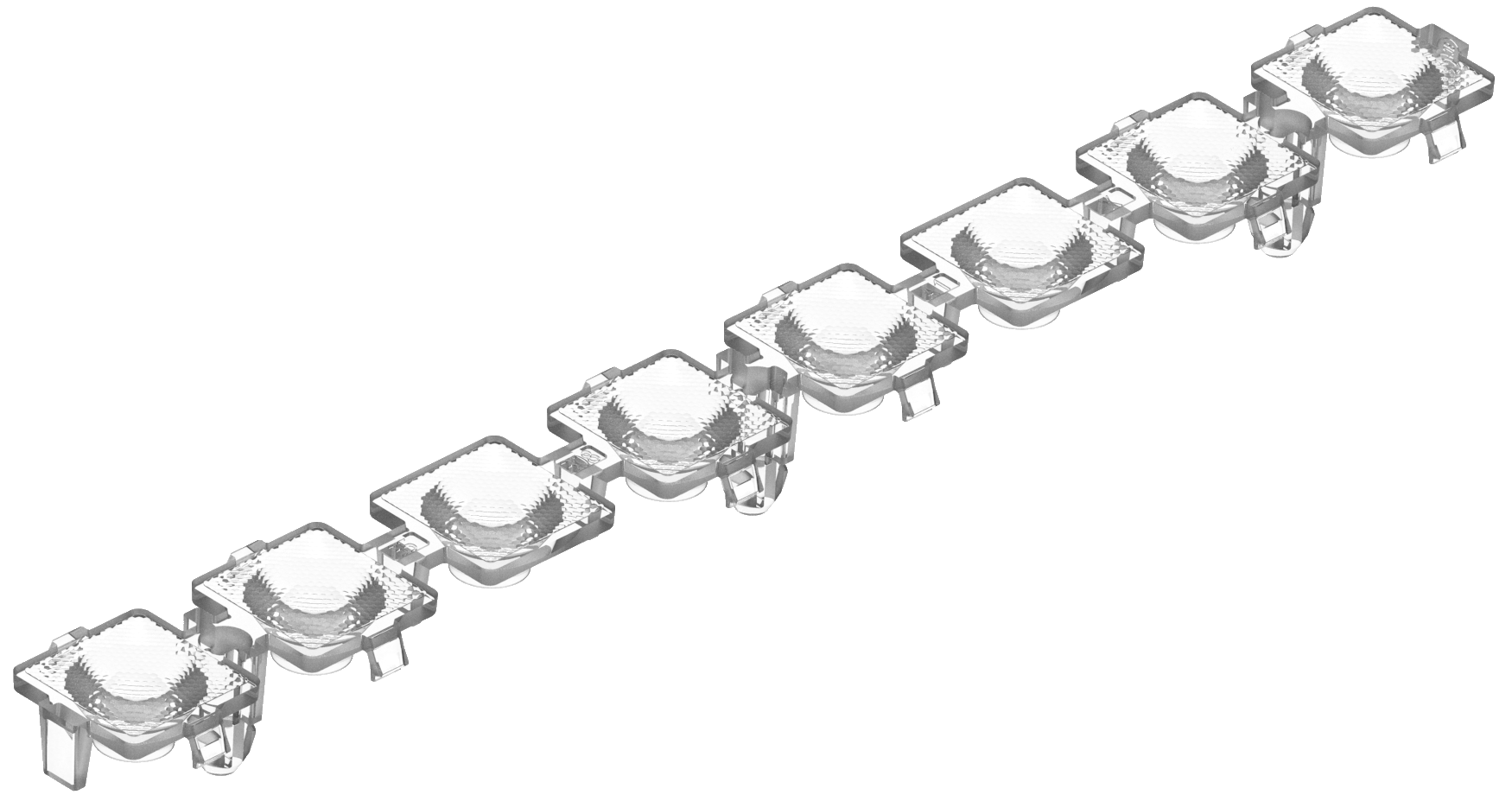

With the OptiLine optics, we present a new generation of single-row optics which can be mounted quicker than ever before: thanks to innovative 1-click fastening which connects the optic and LED module in a single working step, without the need for tools. Centring pins and spacers position and secure the printed circuit board on the light panel or aluminium profile, the end caps on the left and right provide a neat closure.

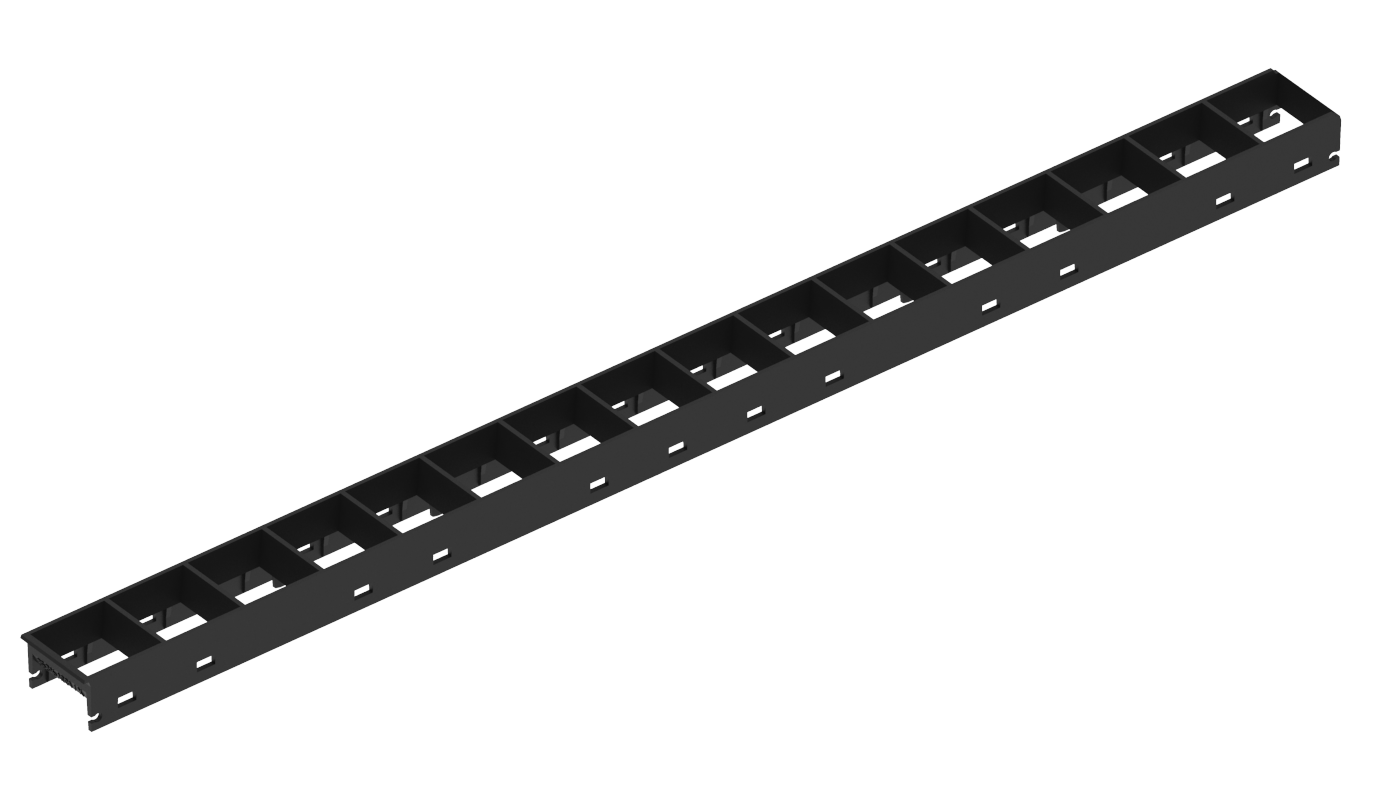

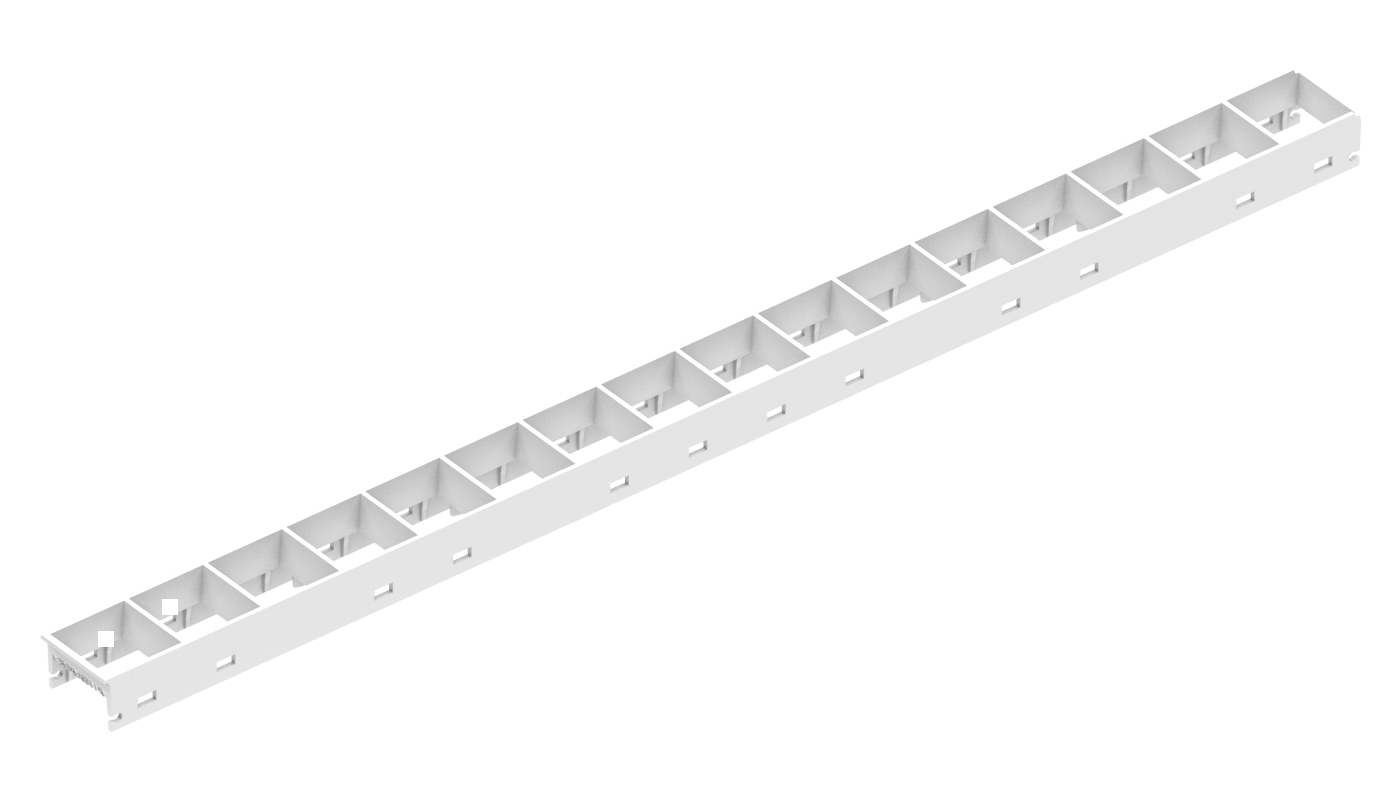

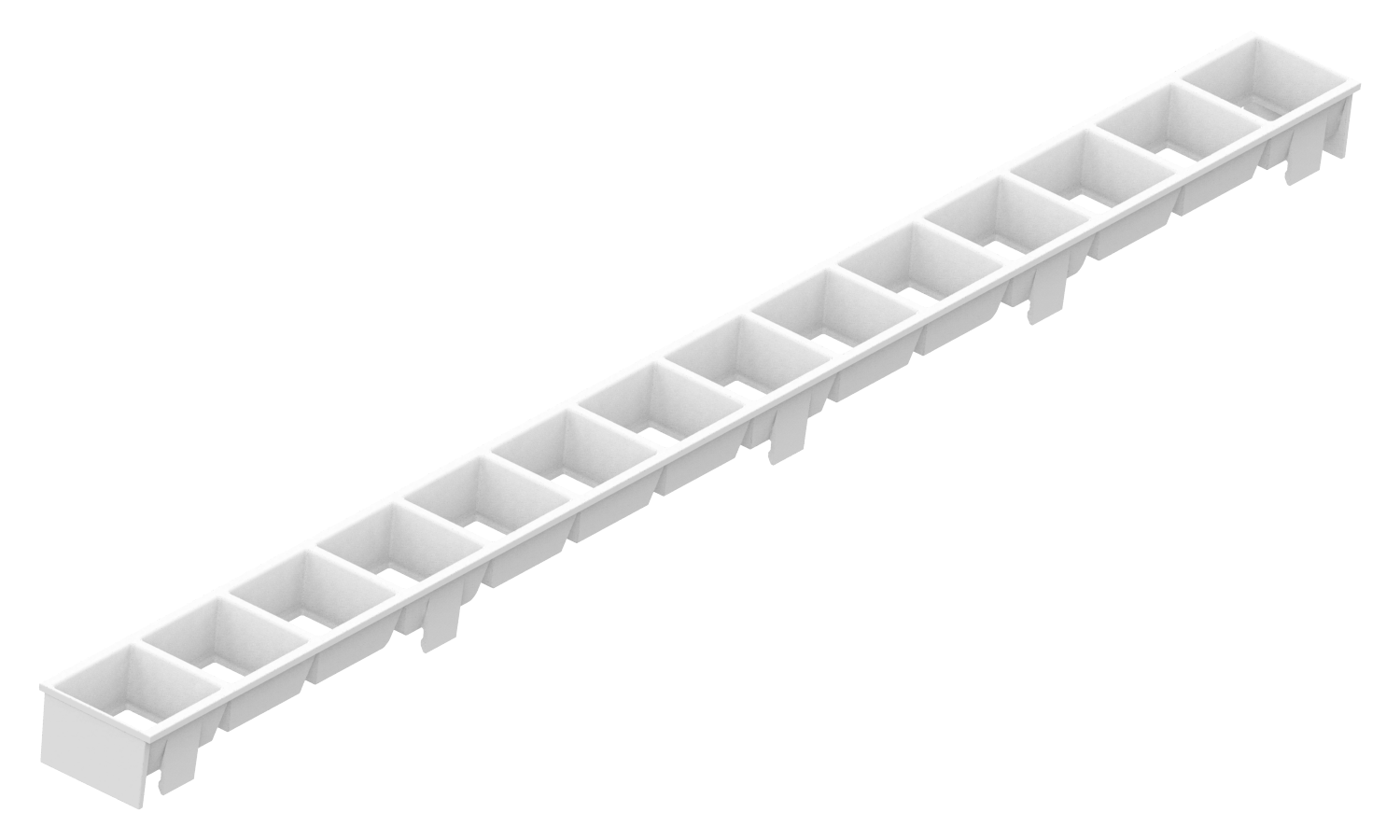

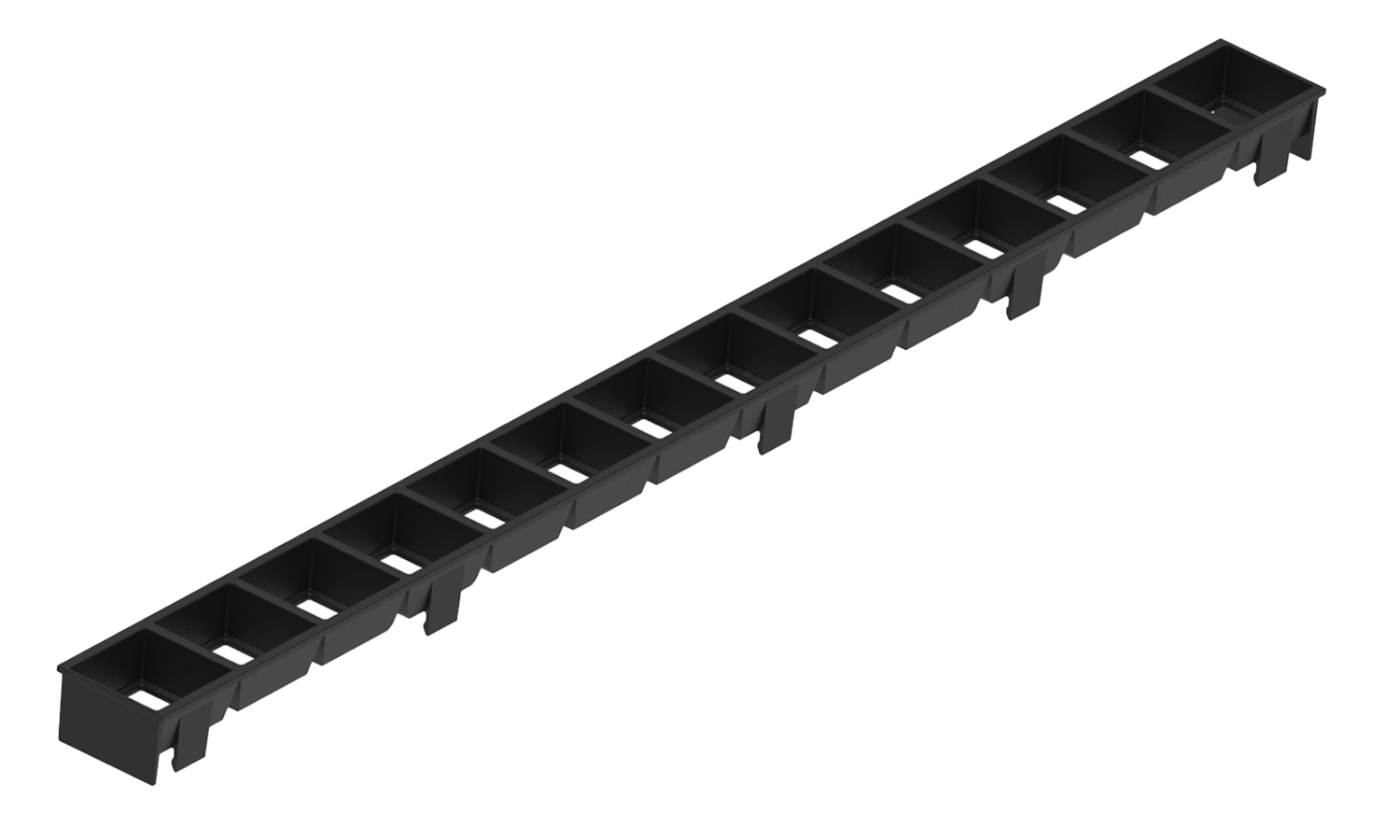

The low-glare LED darklight louvre optic for the highest demands. The new OptiLine Louvre system comprises lens optics and the respective louvres. Thanks to the low UGR value, these optics, which are available in a medium and wide version, are particularly suitable for all applications which require optimum lighting and minimum glare. The OptiLine Louvre System is engineered for use both in light panels and in aluminium profiles, and thus provides a high level of flexibility when it comes to lamp construction.
Co-developed with
for Philips Fortimo LED Strip R
OptiLine Louvre Serie 35.306 und 35.312 -
LED-Darklight-Rasteroptik
für hochwertigste Anforderungen.
Click instead of screw! Mount faster than ever with BJB OptiLine 1-click optics.
Benefits at a glace
- Homogeneous mixture (also for tunable white applications)
- Particularly low glare: Medium = UGR<16/Wide = UGR<19
- Can be mounted without the need for tools thanks to the tried-and-tested 1-click latching elements
- Centring pins for optimum alignment of LED module and optic in a single step
- Centring and positioning pins for perfectly positioned alignment of the louvre
- Latching hooks for clipping the optic into place
- Latching lugs for securing in the light panel or aluminium profile
- Overlap to offset thermal expansion: prevents light scatter at the same time
- Seamless integration into the lamp housing
- 1-foot and 2-feet variants
