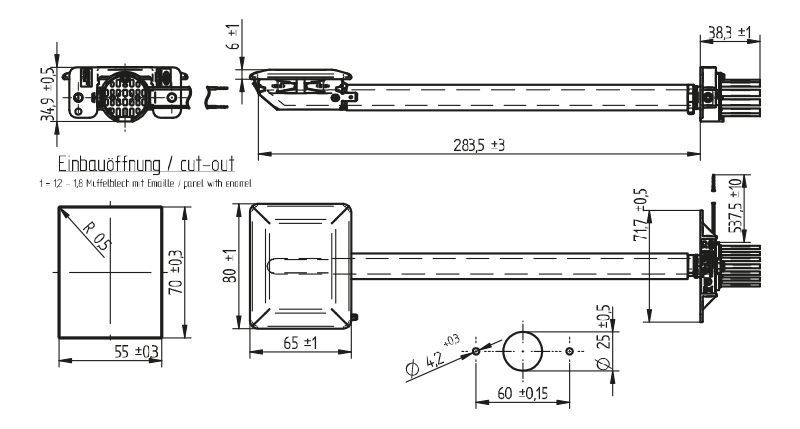

LED oven lamp Square 70x55 Set with LED unit 77.115.8102 und reflector unit 77.728.U301
-
LED unit 77.115.8102
-
-
Reflector unit 77.728.U301

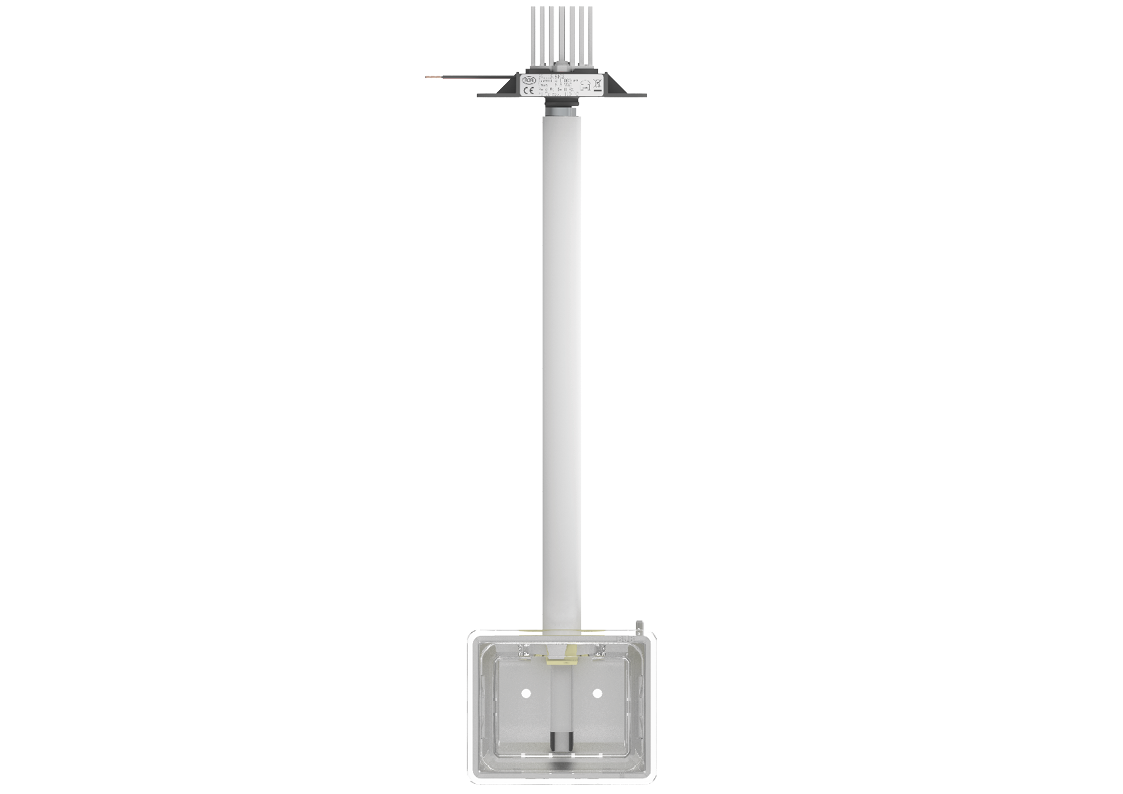

LED oven lamp with light conducting glass rod and reflector - This article is a SET consisting of the sales articles 77.115.8102 (LED unit) and 77.728.U301 (reflector unit)
- Side installation in the oven
The light components are supplied in two separate assemblies as they must be installed one after the other. The reflector unit with the no. 77.728.U301 and the LED unit no. 77.115.8102
Symmetrical light characteristic
Screw fixing: for M3 screws alternatively: push in fixing by using the P2F fixing element 28.905
- Due to the variable length of the light conducting glass rod, different installation heights in the oven are possible.
- Variable LED parameters (CCT, CRI, number)
- Protection class III due to operation on SELV voltage
- Max. possible current of the lamp is to be determined in the most unfavorable operating condition
- The choice of our products, as well as the technically correct installation according to the relevant regulations (e.g. IEC 62031 and IEC60335) , are the sole responsibility of the user.
Special versions with higher requirements such as steam tightness, with microwave shielding or pyrolysis suitability on request.
| Application areas: | Home + Professional |
|---|---|
| Ausführung: | Dimmable with suitable control gear |
| Colour temperature: | 3.500 K |
| Durability: | Average life time (L70 / B50) = 5.000 h (according to BJB test requirements) |
| Form: | This article is a SET consisting of the sales articles 77.115.8102 (LED unit) and 77.728.U301 (reflector unit) |
| LED?: | yes |
| Lamp: | LED |
| Lichtstrom bei Tc 25° C: | 290 lm |
| Luminous flux Ta25° C If typical: | 290 lm |
| Material: | Heat sink: Aluminum, anodized; Housing: PET; Reflector: Steel, Aluminium plated; Glass light guide rod: Borosilicate glass |
| Max. Temperature at Tc point: | 110° C |
| Note on electrical and optical tolerances: | Tolerances of optical and electrical data: ±10 %. |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 1.000 mA |
| Operating mode: | Constant current |
| Other: | Output: 6.0 W - Luminous flux @Ta25° C @ If typical: 290 lm |
| Output: | 6.0 W |
| Packaging quantity: | 24 |
| Producttype: | LED Oven Lamp |
| Series: | LED |
| Suitable for: | Combined ovens - Microwaves - Pyro - Steam |
| Weight: | 207 g |
| number of LEDs per module: | 2 |
| old article number: | 77.115.8601.00 |
