P2F Optic P 3.7-5.4
Article number:
28.905.U101-0
EAN:
4049853
-
3.7 - 5.4 mm
Product information "P2F Optic P 3.7-5.4"

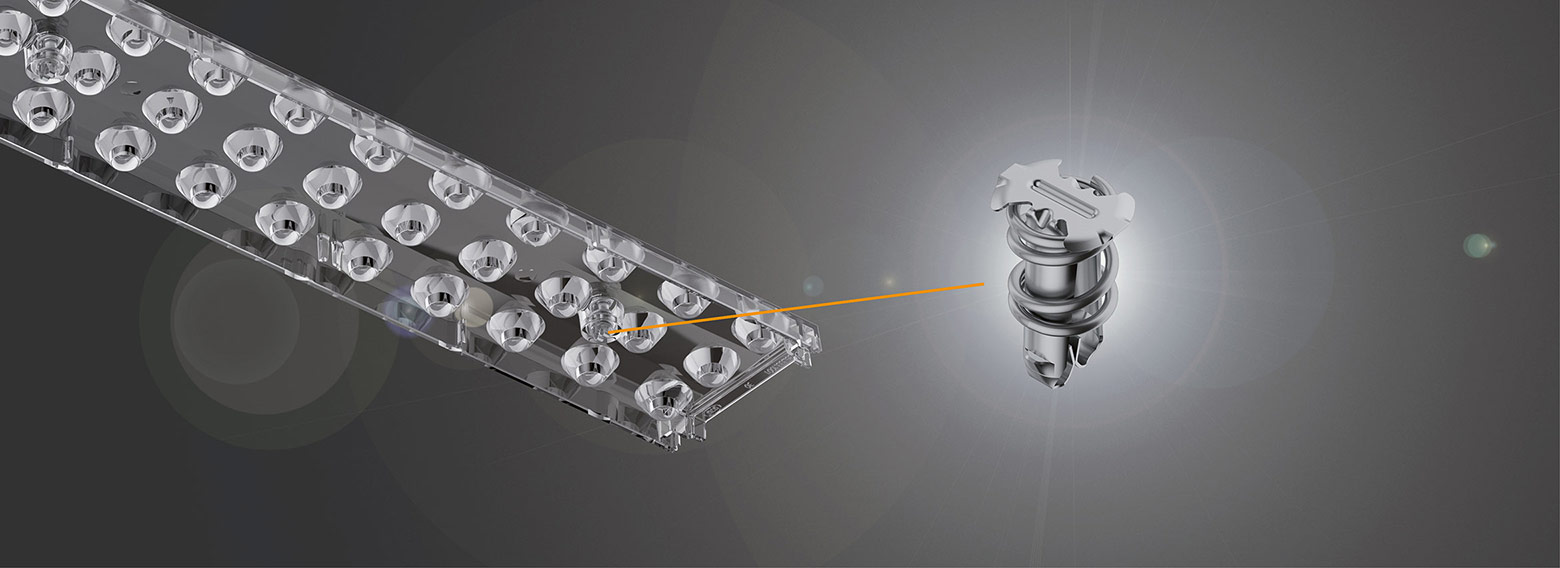

Optic P2F P37-54 - Fixing Element for linear or panel optics and LED modules

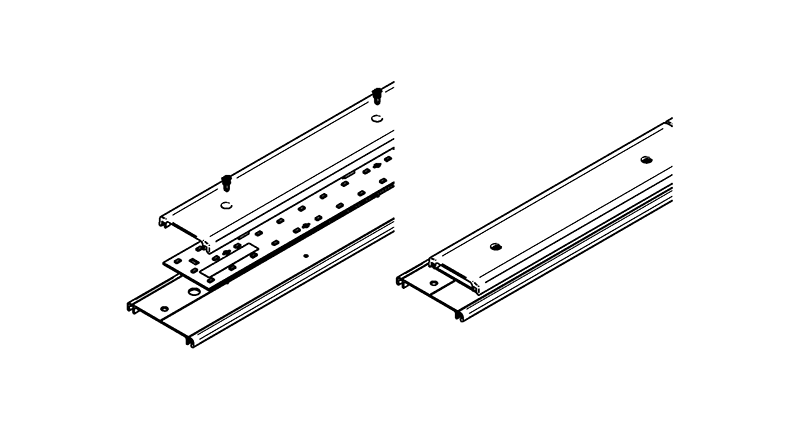

For easy installation of 3x11 optics and LED modules
Just one step to fix optic and LED module
Prefixation of LED module possible

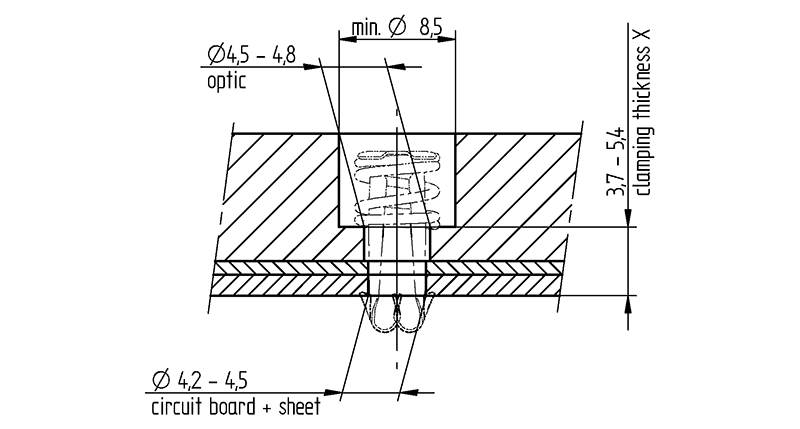

Suitable for total thicknesses from 1.0 to 1.6 mm
| Material: | Metal |
|---|---|
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Package thickness (X): | 3.7 - 5.4 mm |
| Packaging quantity: | 5000 |
| Producttype: | P2F Optic Fixing Elements for linear or panel optics and LED modules |
| Series: | P2F Optic Fixing Elements |
| Suitable for: | for linear or panel optics and LED modules |
| old article number: | 28.905.U101.10 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|
-
3.7 - 5.4 mm
