LED oven lamp Square 55x70 Set with LED unit 77.115.8101 und reflector unit 77.638.U201
-
LED unit 77.115.8101
-
-
Reflector unit 77.638.U201

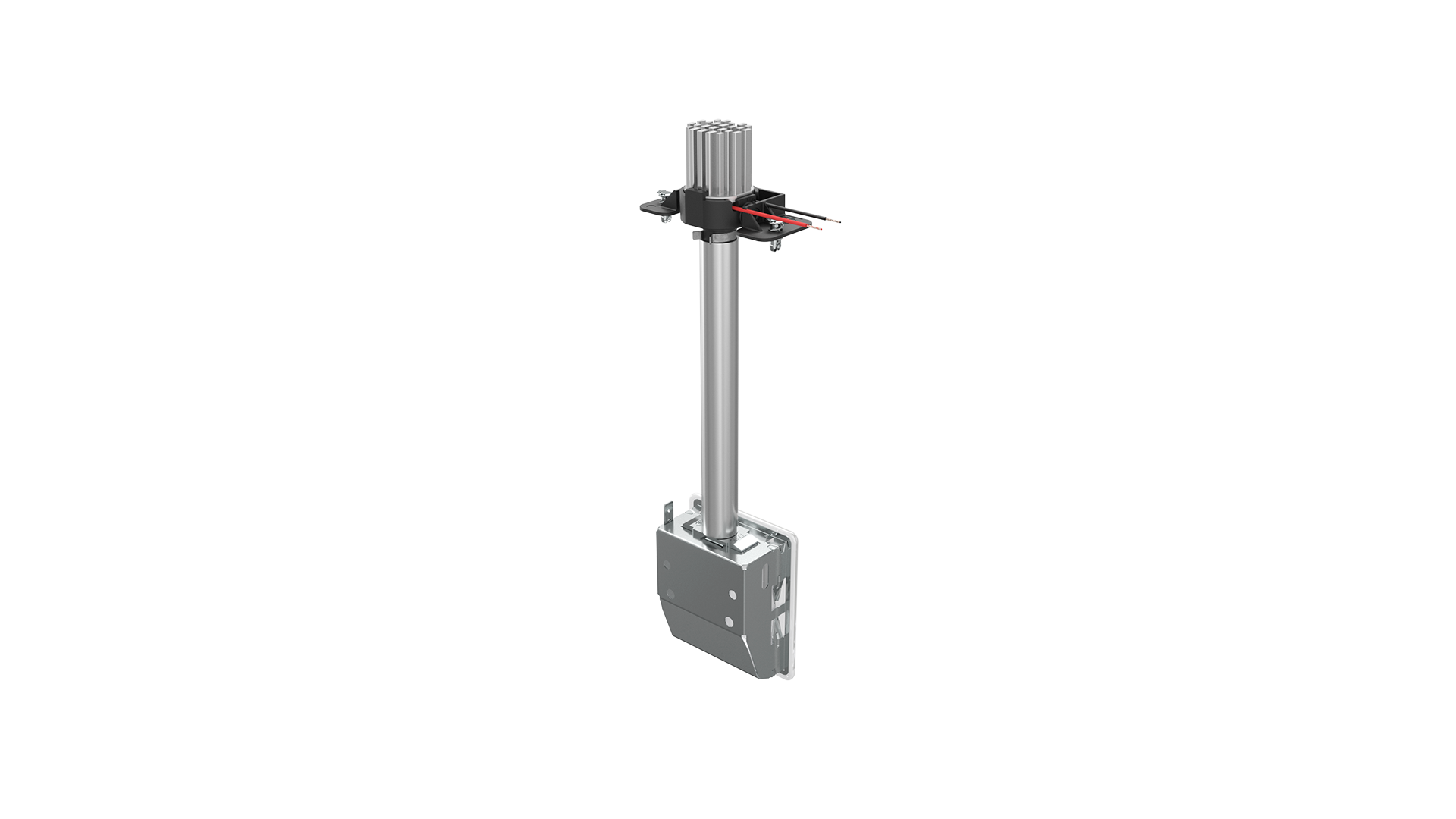

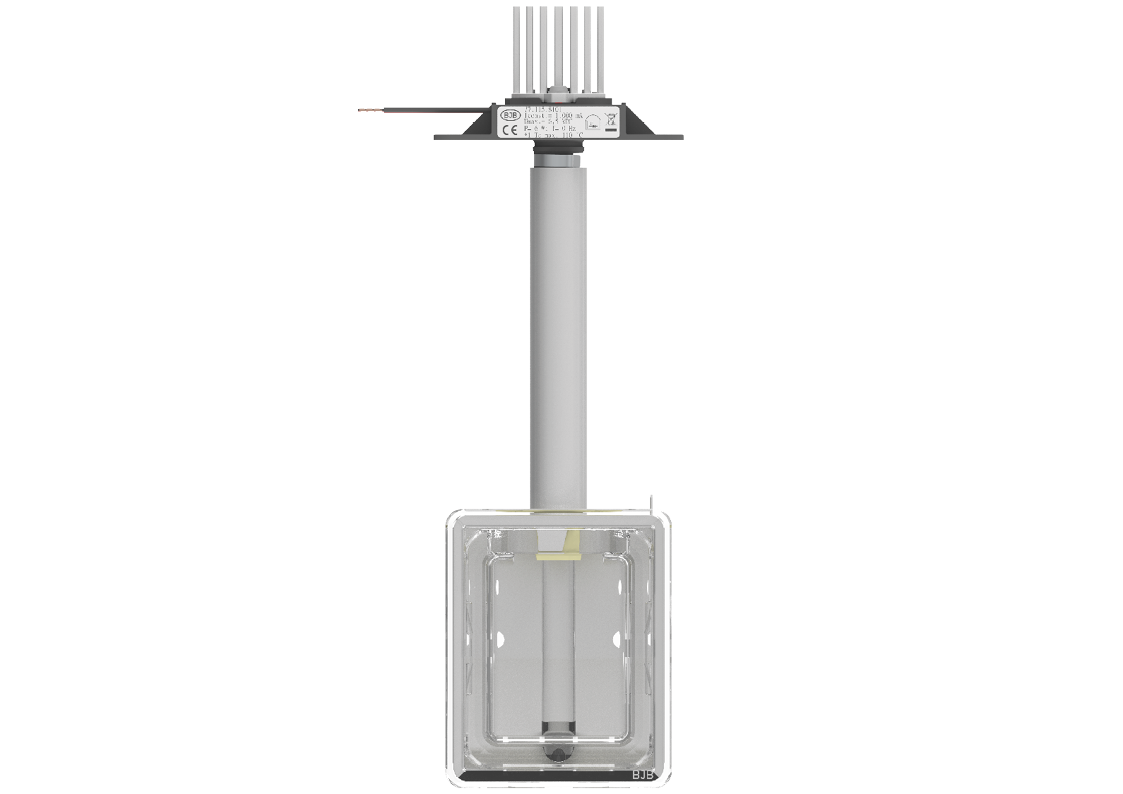

LED oven lamp with light conducting glass rod and reflector - This article is a SET consisting of the sales articles 77.115.8101 (LED unit) and 77.638.U201 (reflector unit)
- Side installation in the oven

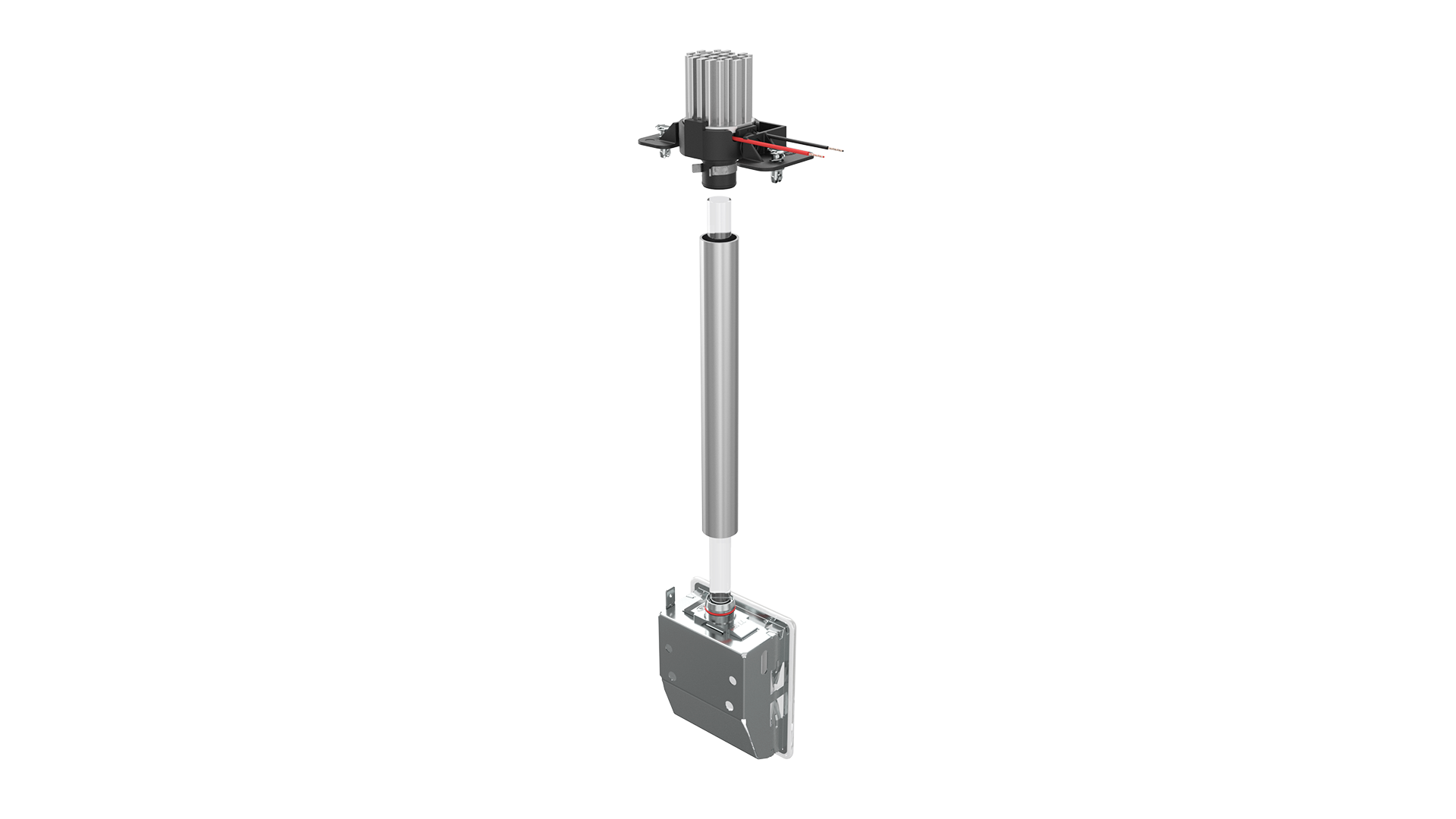

The light components are supplied in two separate assemblies as they must be installed one after the other. The reflector unit with the no. 77.638.U201 and the LED unit no. 77.115.8101.
Symmetrical light characteristic
Screw fixing: for M3 screws alternatively: push in fixing by using the P2F fixing element 28.905
- Due to the variable length of the light conducting glass rod, different installation heights in the oven are possible.
- Variable LED parameters (CCT, CRI, number)
- Protection class III due to operation on SELV voltage
- Max. possible current of the lamp is to be determined in the most unfavorable operating condition
- The choice of our products, as well as the technically correct installation according to the relevant regulations (e.g. IEC 62031 and IEC60335) , are the sole responsibility of the user.
Special versions with higher requirements such as steam tightness, with microwave shielding or pyrolysis suitability on request.
| Application areas: | Home + Professional |
|---|---|
| Ausführung: | Dimmable with suitable control gear |
| Colour temperature: | 3.500 K |
| Durability: | Average life time (L70 / B50) = 5.000 h (according to BJB test requirements) |
| Form: | This article is a SET consisting of the sales articles 77.115.8101 (LED unit) and 77.638.U201 (reflector unit) |
| LED?: | yes |
| Lamp: | LED |
| Luminous flux Ta25° C If typical: | 280 lm |
| Material: | Heat sink: Aluminum, anodized; Housing: PET; Reflector: Steel, Aluminium plated; Glass light guide rod: Borosilicate glass |
| Max. Temperature at Tc point: | 110° C |
| Note on electrical and optical tolerances: | Tolerances of optical and electrical data: ±10 %. |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 1.000 mA |
| Operating mode: | Constant current |
| Other: | Output: 6.0 W - Luminous flux @Ta25° C @ If typical: 280 lm |
| Output: | 6.0 W |
| Packaging quantity: | 24 |
| Producttype: | LED Oven Lamp |
| Series: | LED |
| Suitable for: | Combined ovens - Microwaves - Pyro - Steam |
| Weight: | 185 g |
| number of LEDs per module: | 2 |
| old article number: | 77.115.8501.00 |
