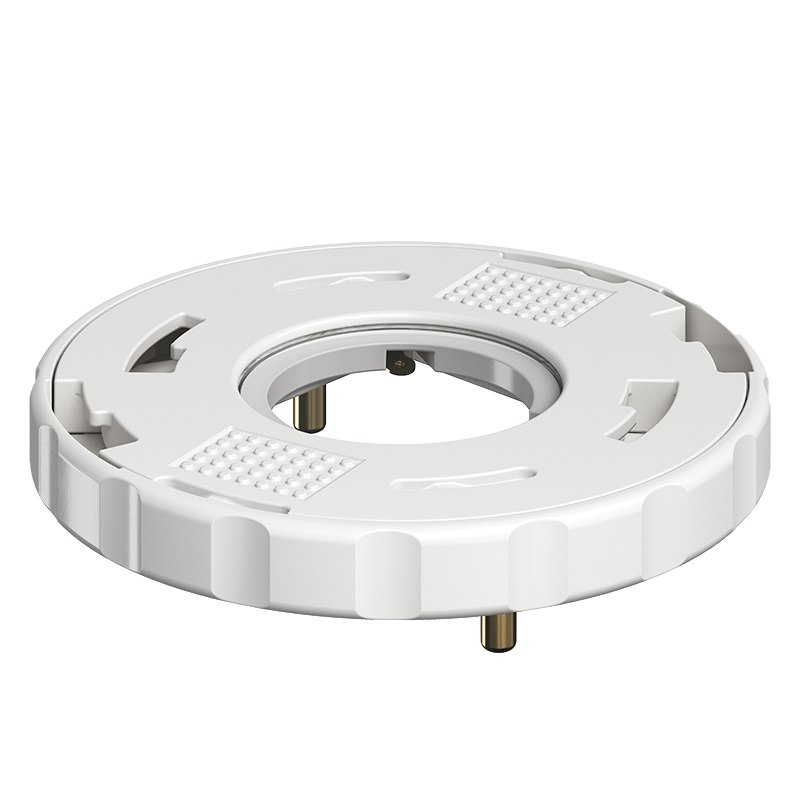

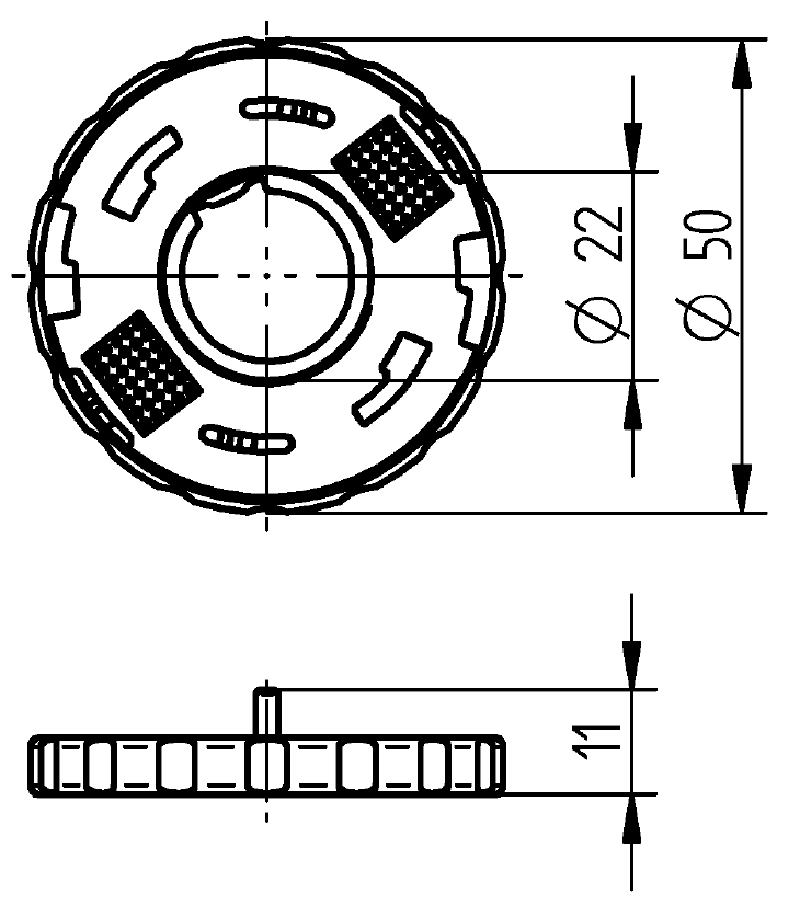

lampmodule top GH36d, D 50mm, without glascover, 2 optic interfaces analogous BJB 40 & 50 mm, COB 19 x 19, snap-in prefixing of COB New
Article number:
32.920.1101-0
EAN:
4049853
Product information "lampmodule top GH36d, D 50mm, without glascover, 2 optic interfaces analogous BJB 40 & 50 mm, COB 19 x 19, snap-in prefixing of COB"

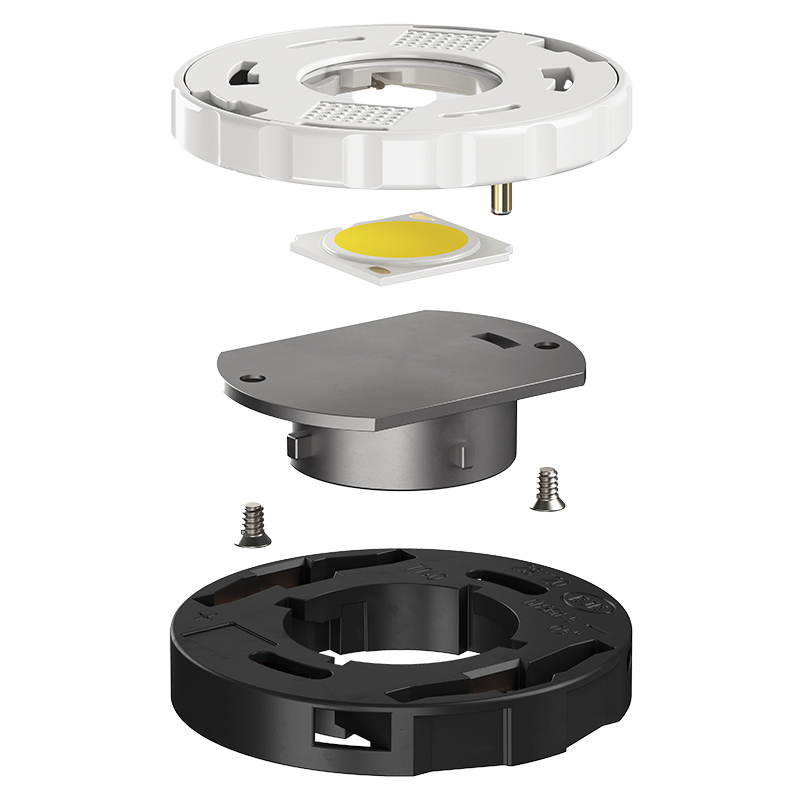

COB holder for Twist 'n' Spot LED Module
- Twist and Lock System
Maximum power depends on the respective heat sink, but max. 32 W.
Please note the polarity of the LED
Please observe the specifications of the LED manufacturer
When connecting LED modules in series, the creepage and clearance distances of the individual modules must be designed for the total voltage of the series connection
| Application areas: | 2 optic interfaces analogous BJB 40 & 50 mm |
|---|---|
| Lens: | Max. reflector weight: 30 g |
| Material: | Housing: PPTContacts COB: CuAuContacts socket: CuSn |
| Mounting cutout: | Integrated interface for reflectors |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | without glascover |
| Output: | max. 32 W |
| Packaging quantity: | 1 |
| Producttype: | Lampholders for GH36d LED Light Engines |
| Rated output current: | 2 A |
| Rated voltage: | 150 V |
| Screws: | for countersunk screws M 2,6 x 4 |
| Series: | Lampholders for GH36d LED Light Engines |

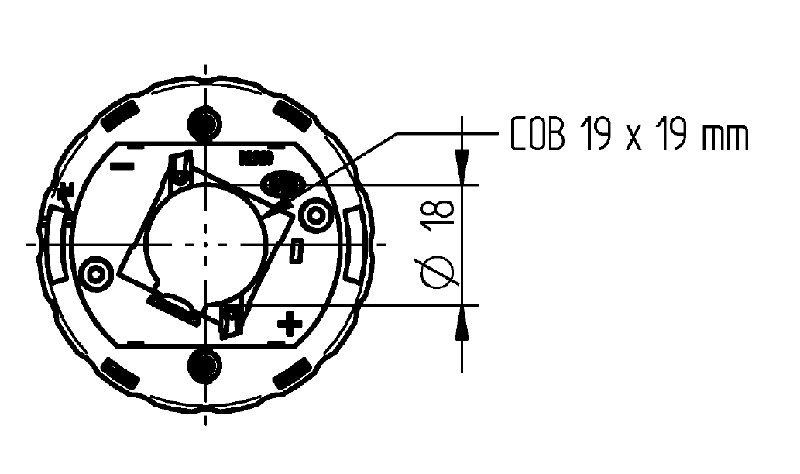

| Suitable for: | for COB 19 x 19 |
| Weight: | 6 g |
| mounting method 1: | Screw fastening with M2 screws for attaching the aluminum base to the COM module |
| mounting method 2: | snap-in prefixing of COB |
| old article number: | 32.920.1101.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|

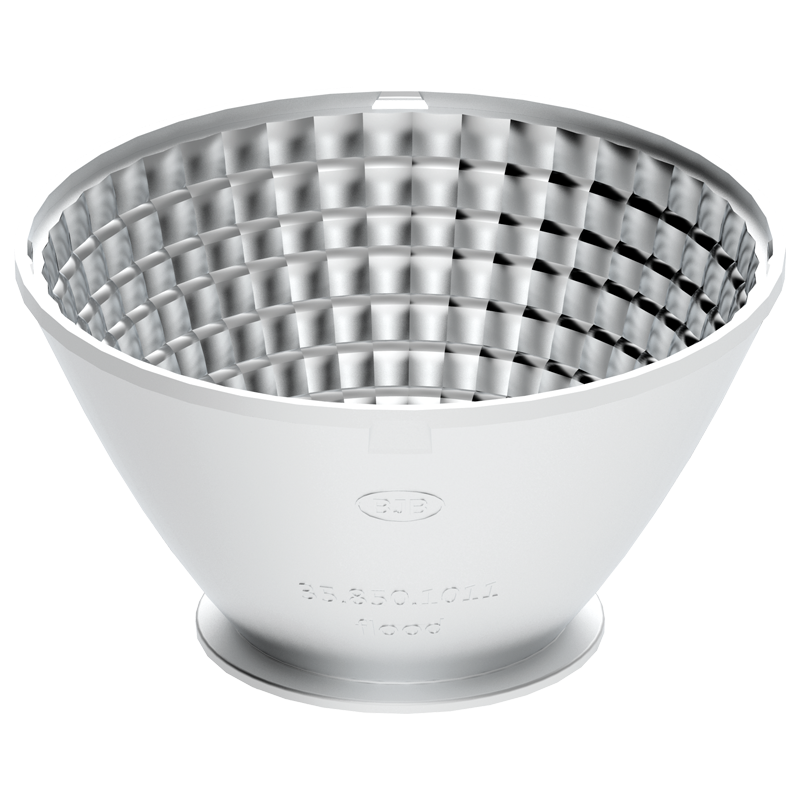

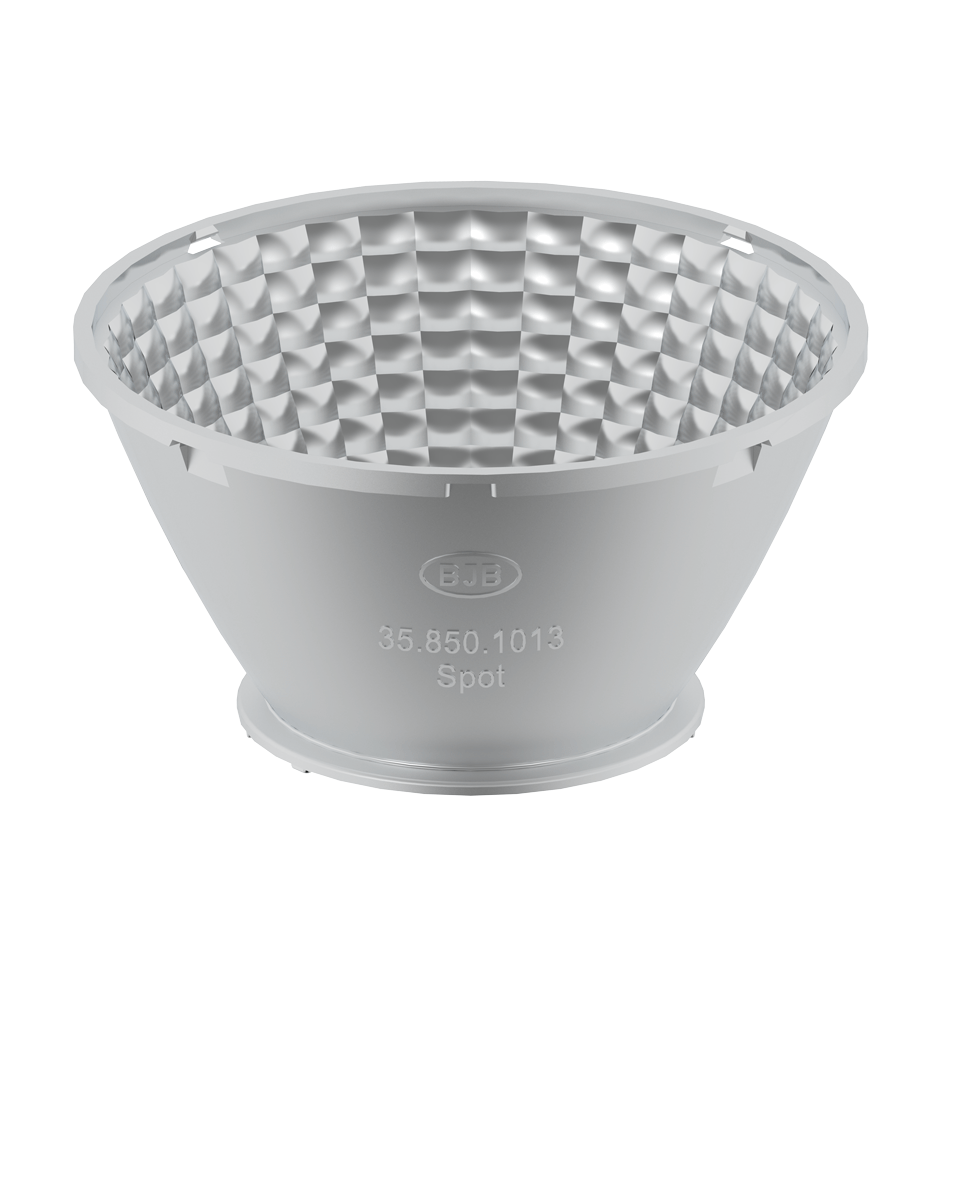

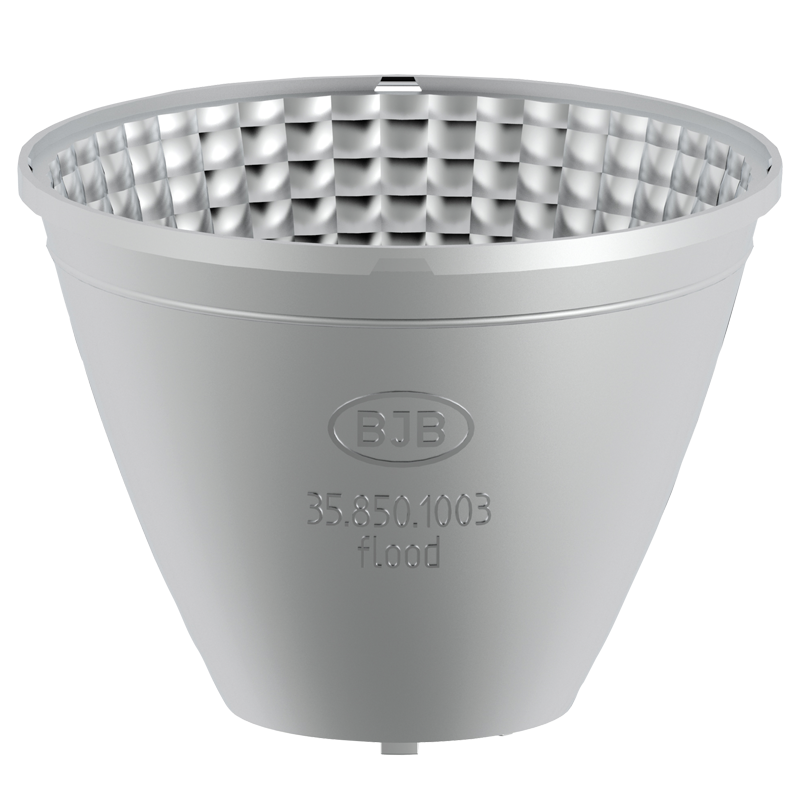

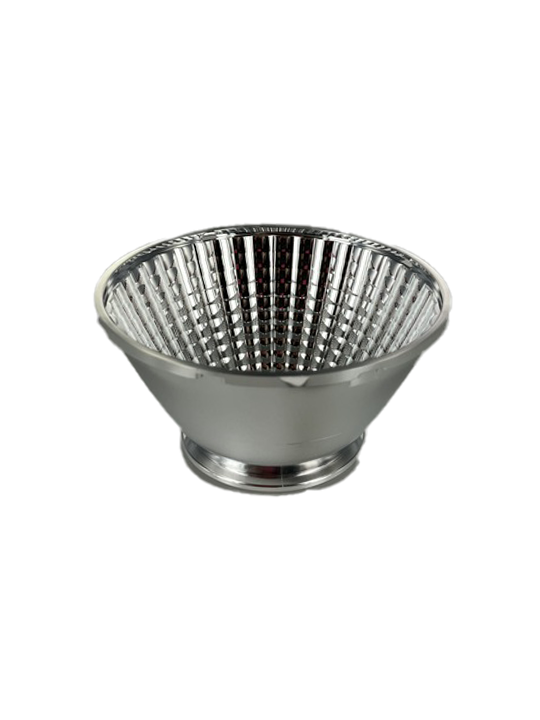

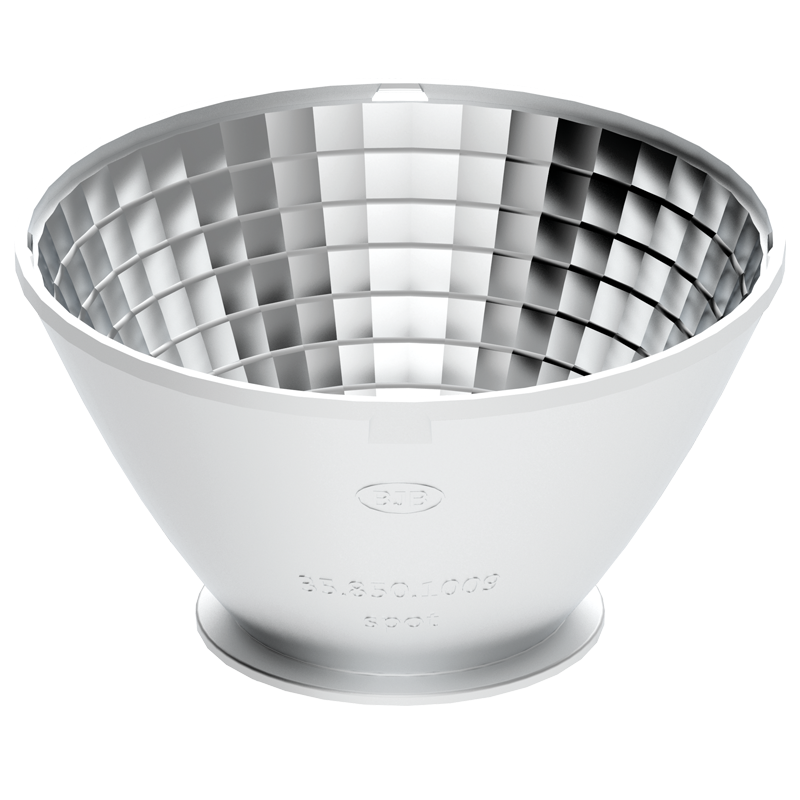

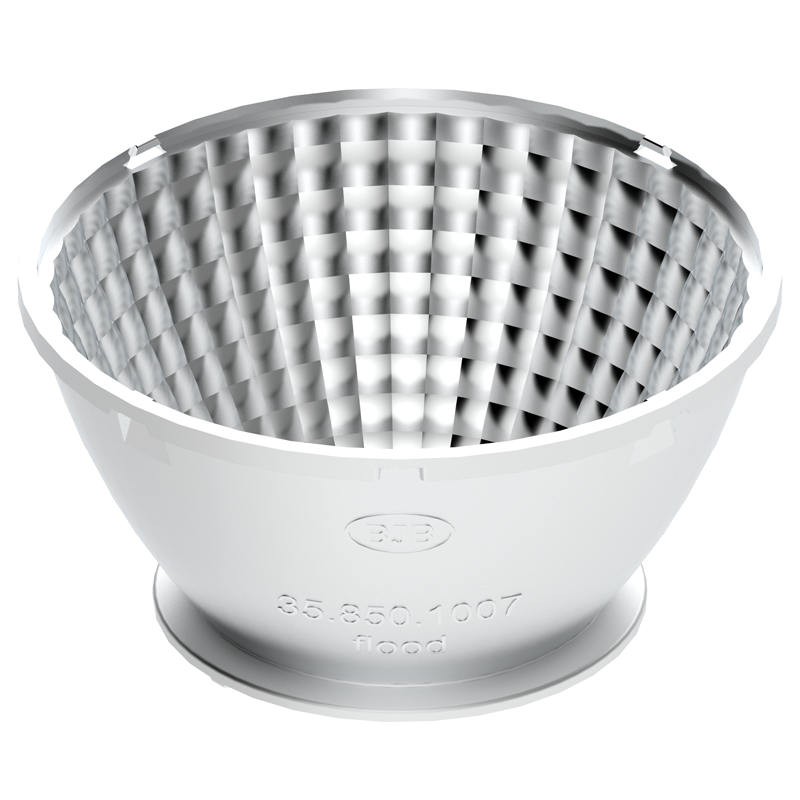

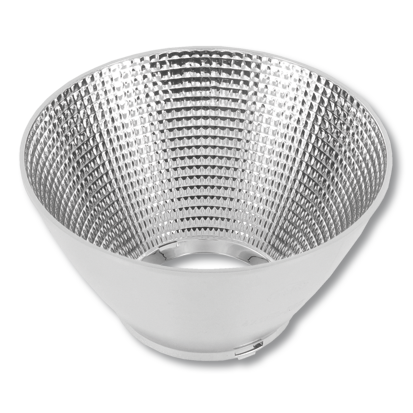

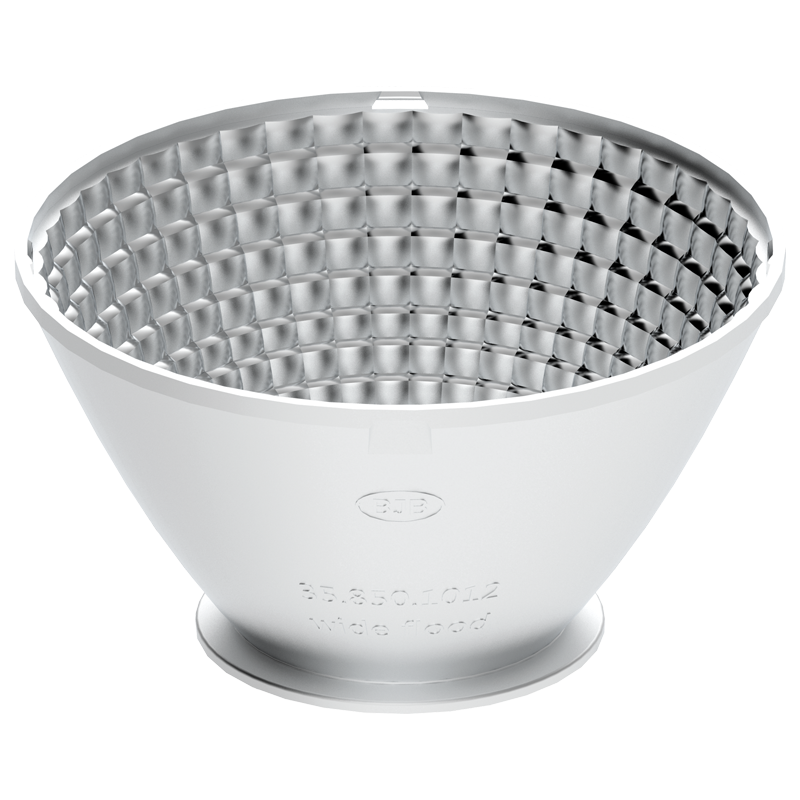

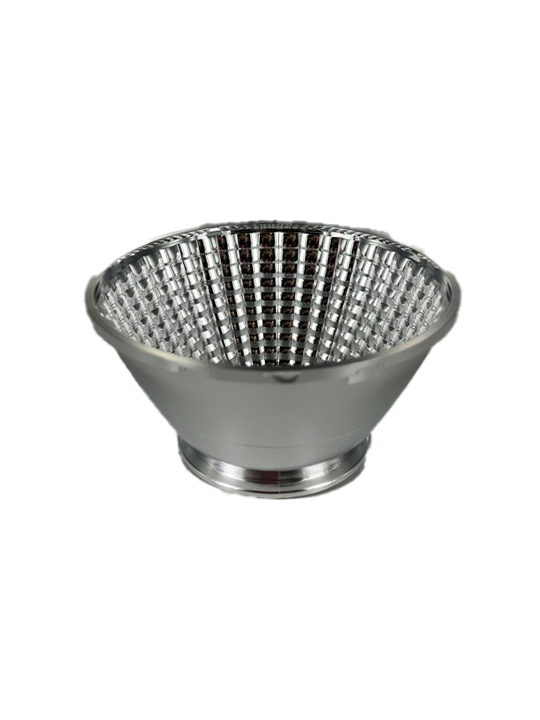

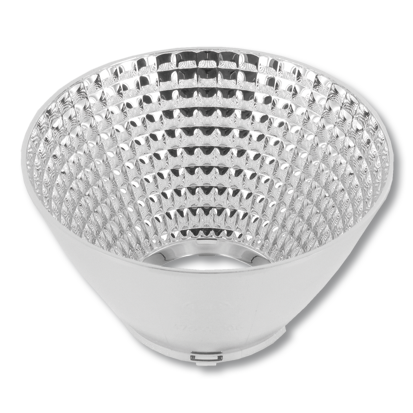

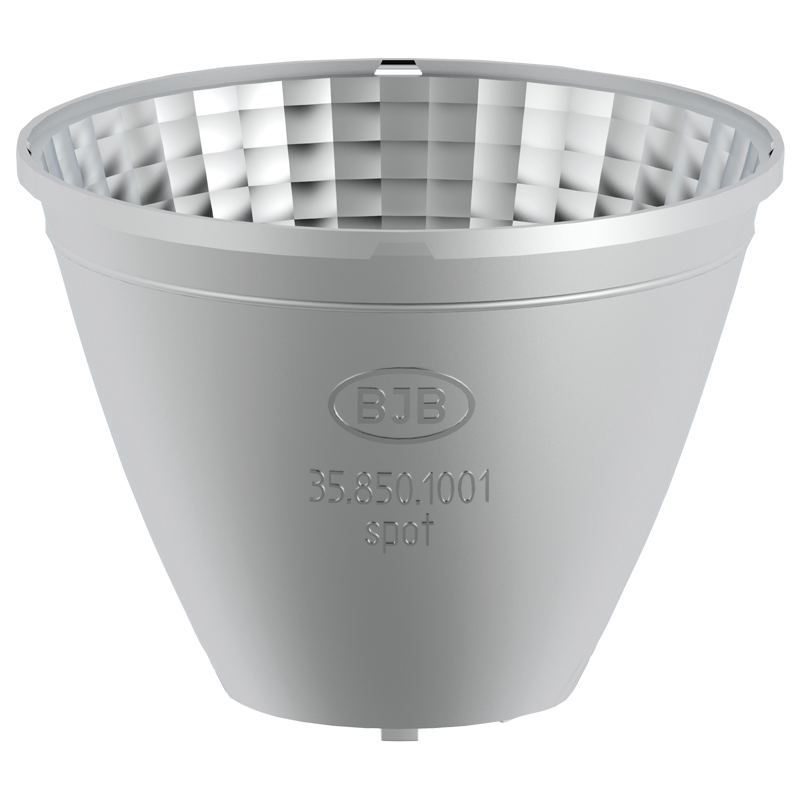

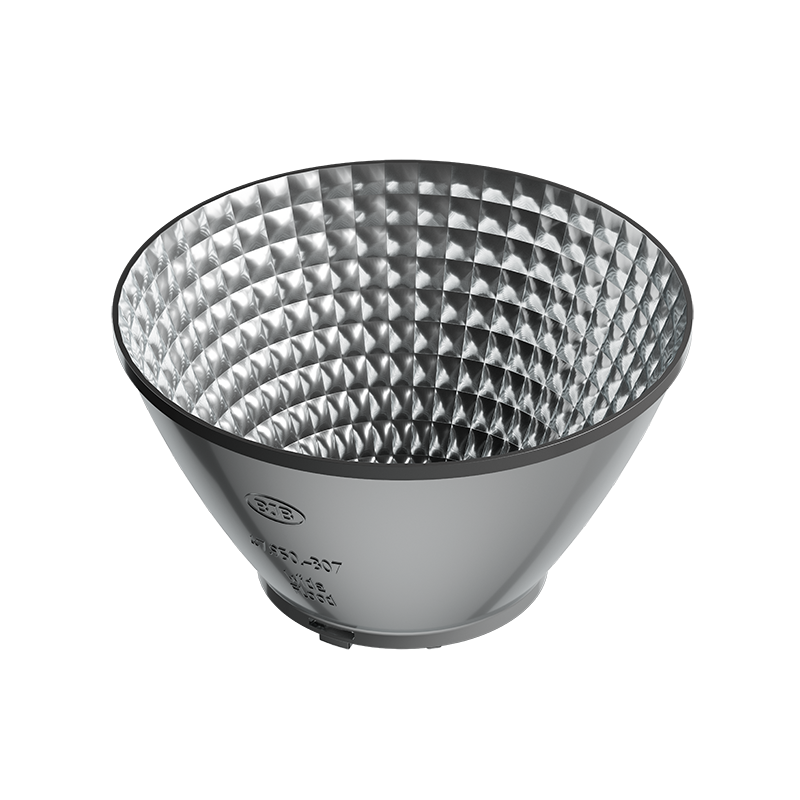

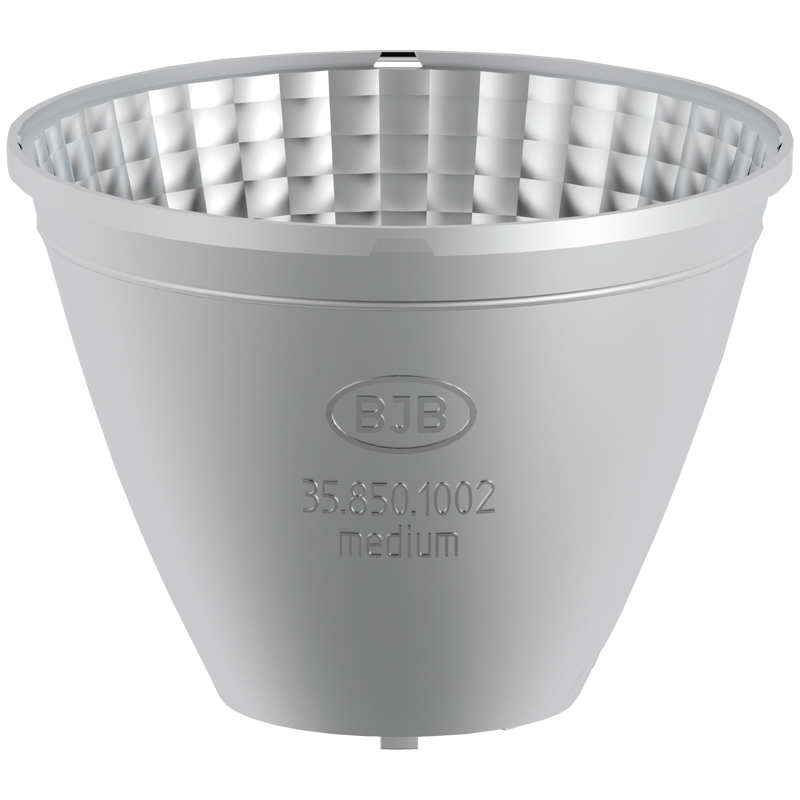

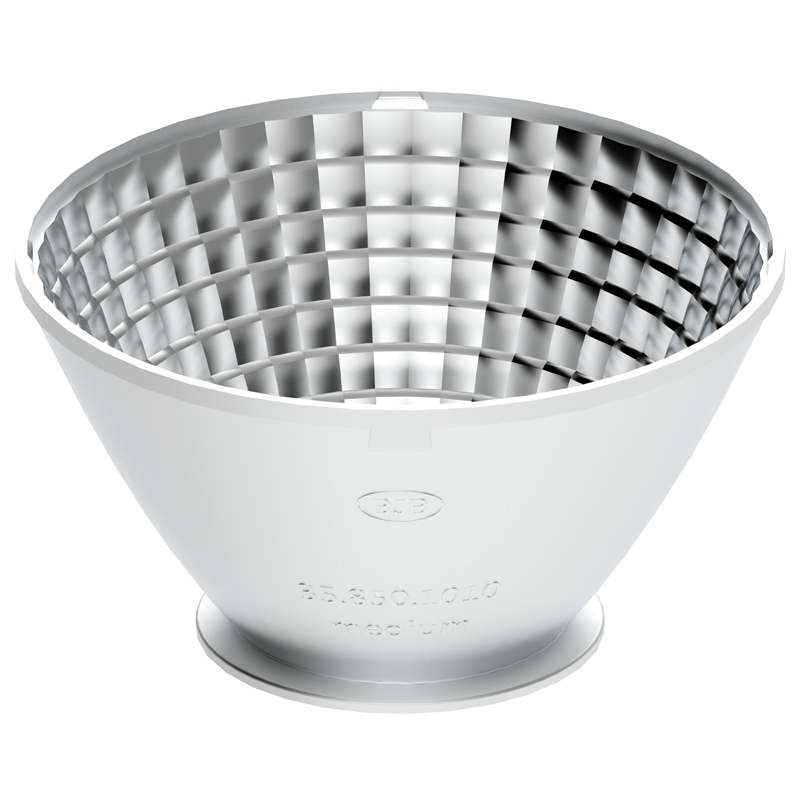

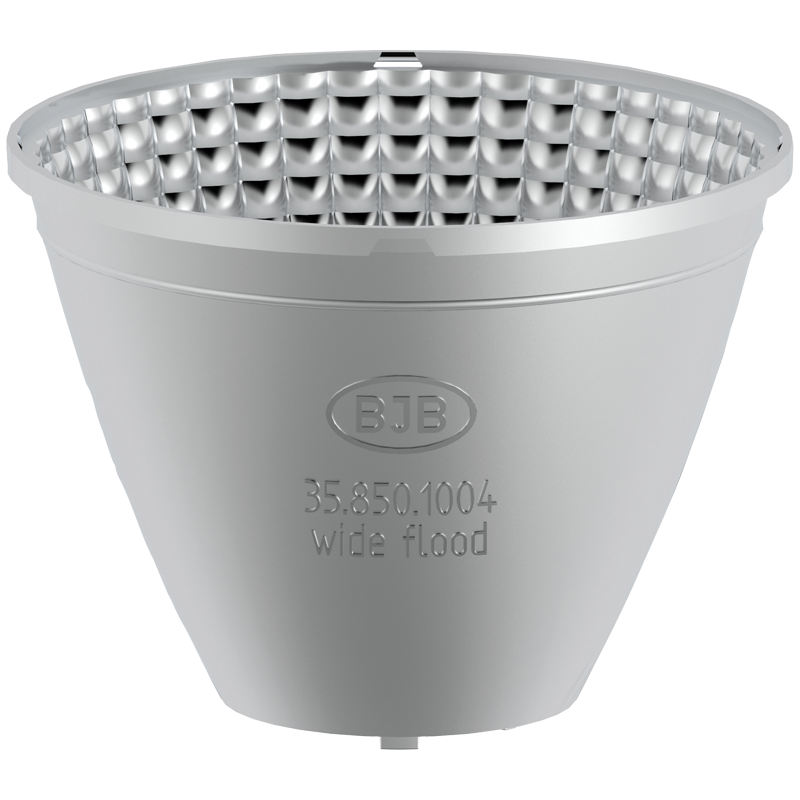

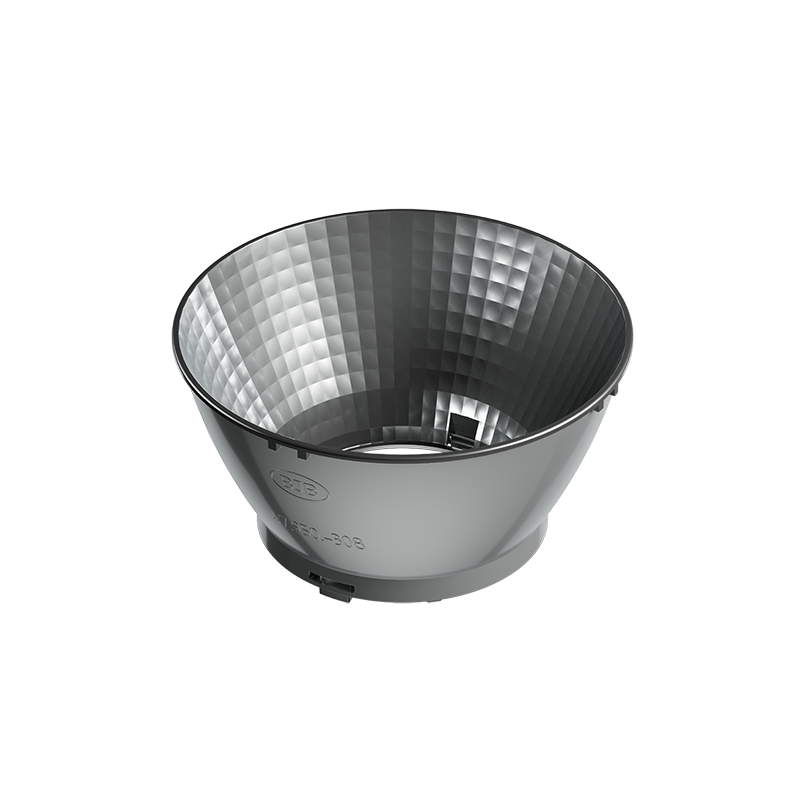

Accessories
