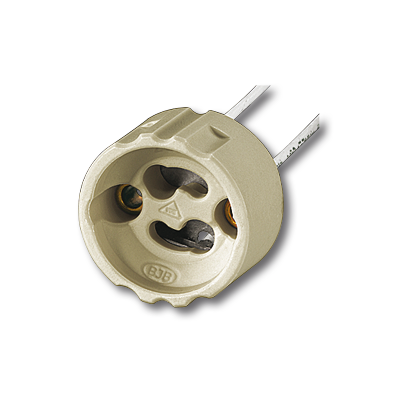

Lampholder GU10
Article number:
25.819.2901-0
EAN:
-
-
-
-
GU10
Product information "Lampholder GU10"
- cULus: File E-93328
| Ausführung: | Line Voltage Halogen Lampholder GU10 |
|---|---|
| Connector: | Rear leads |
| Halogen lamp high-voltage: | GU10 |
| Lamp: | for GU10 |
| Material: | Housing: Ceramic / Mica plateContacts: Ni |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Line Voltage Halogen Lampholder GU10 |
| Series: | Line Voltage Halogen Lampholders |
| T-marking: | 250 |
| Weight: | 16 g |
| Wires: | Cu. nickel, 0.75 mm², Insulation: PTFE (max. 250° C), with ferrule, Free cable length: 150 mm |
| mounting method 1: | Screw mount |
| old article number: | 25.819.2901.00 |
Available Downloads

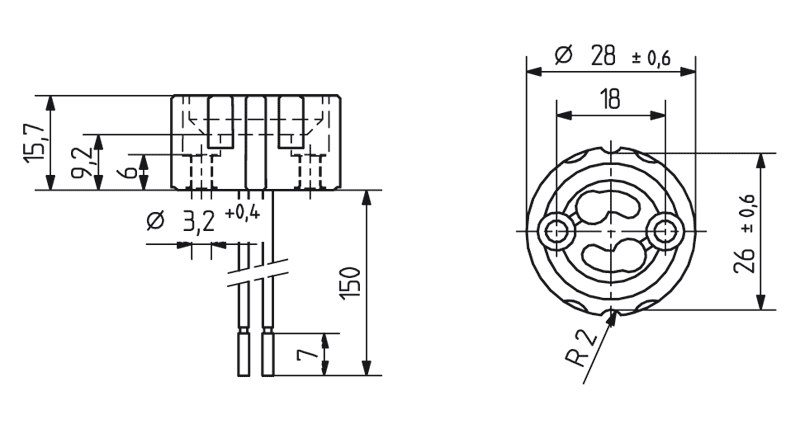

Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 25.819.2901-0 | Genehmigung_liegt_vor_--Approval_at_hand_-3500057 | ||
| 25.819.2901-0 | ENEC_Zeichen_--ENEC_Approval_-690285 | ||
| 25.819.2901-0 | Genehmigung_liegt_vor_--Approval_at_hand_-4805042 | ||
| 25.819.2901-0 | Genehmigung_liegt_vor_--Approval_at_hand_-750508 |
-
-
-
GU10

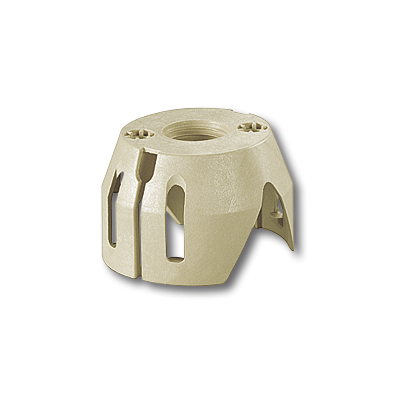

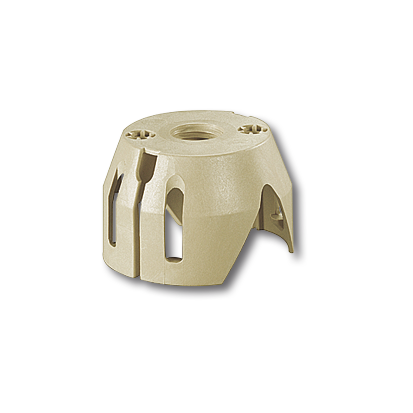

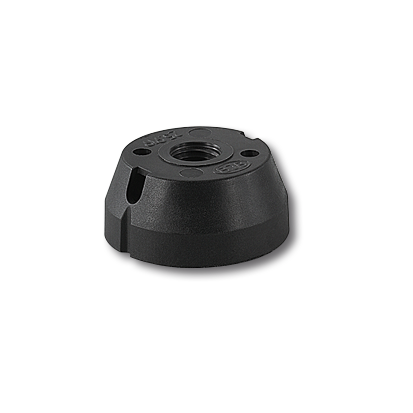

Accessories
