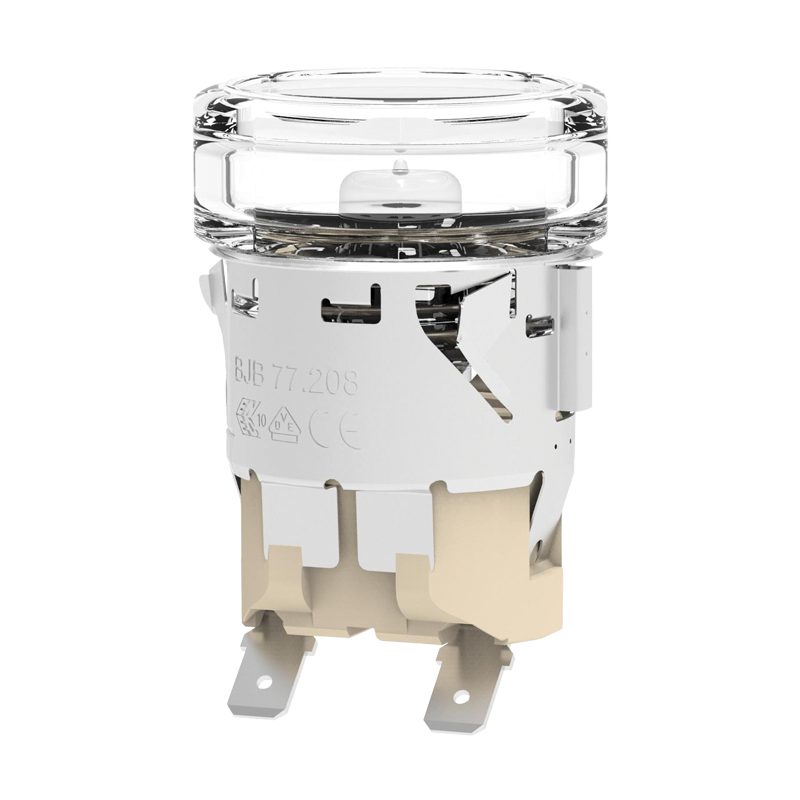

G9 Oven lamp Round ø 35,5
Article number:
77.208.0379-0
EAN:
4049853
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
Product information "G9 Oven lamp Round ø 35,5"
Different variations available
Datasheet and approval certificates on request
Please contact us!
| Application areas: | Home |
|---|---|
| Ausführung: | G9 Standard Oven Luminaire |
| Connector: | tab terminals angled 45° |
| Lamp: | G9, 25W |
| Lens: | Flat lens |
| Lens diameter: | 42 |
| Mounting cutout: | 35.5 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating mode: | Constant current |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 96 |
| Producttype: | G9 Standard Oven Luminaire |
| Series: | Standard |
| Suitable for: | Standard oven |
| old article number: | 77.208.0379.10 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.208.0379-0 | ENEC_Zeichen-ENEC_Approval741008 | ||
| 77.208.0379-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)703640 |
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
