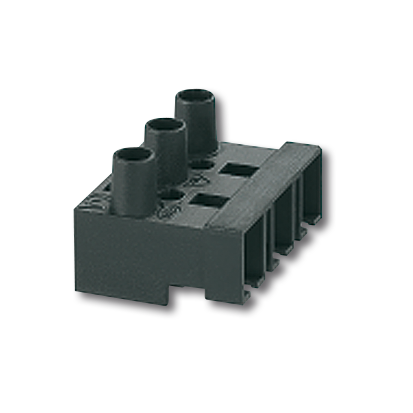

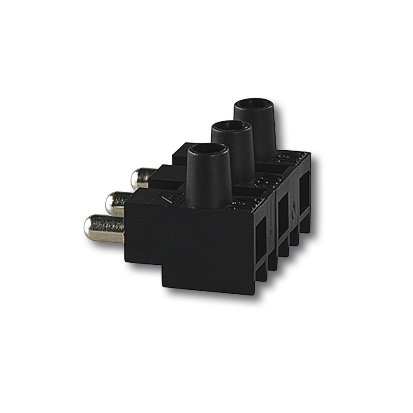

Connector 3 poles
Article number:
48.281.7300-1
EAN:
-
-
-
ø 3,4
-
-
Product information "Connector 3 poles"
Nominal cross section:1,5 mm²
Nominal current: 16 A upto ambient temperature Tu = 85° C
Nominal current: 16 A upto ambient temperature Tu = 85° C
| Ausführung: | Connecting terminal |
|---|---|
| Color: | black |
| Material: | Housing: PA 6.6 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 1000 |
| Plug/socket: | Plug |
| Producttype: | Connecting Terminals |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Screw terminals: | ø 3.4 |
| Series: | Connectors and fused terminal blocks |
| Weight: | 9 g |
| mounting method 1: | Screw mount |
| old article number: | 48.281.7300.80 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 48.281.7300-1 | Genehmigung_liegt_vor-Approval_at_hand1672006 | ||
| 48.281.7300-1 | ÜG_Überwachungsgutachten-Certificate_of_Conformity718278 | ||
| 48.281.7300-1 | Genehmigung_liegt_vor-Approval_at_hand4070828 |
-
-
ø 3,4
-
-
