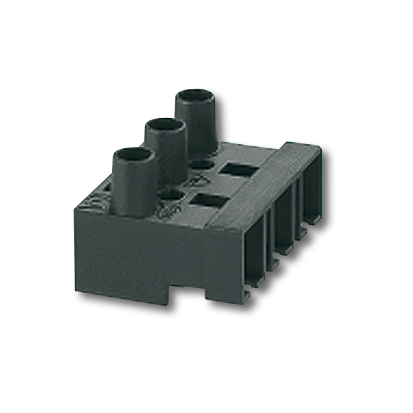

Connector 3 poles
Nominal current: 16 A upto ambient temperature Tu = 85° C
Ausführung: | Connecting terminal |
---|---|
Color: | black |
Material: | Housing: PA 6.6 |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Number of poles: | 3 |
Packaging quantity: | 1000 |
Plug/socket: | Socket |
Producttype: | Connecting Terminals |
ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
Screw terminals: | ø 3.4 |
Series: | Connectors and fused terminal blocks |
Weight: | 8 g |
mounting method 1: | Screw mount |
old article number: | 48.281.8300.80 |
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|---|---|---|
48.281.8300-1 | Genehmigung_liegt_vor-Approval_at_hand4070828 | ||
48.281.8300-1 | Genehmigung_liegt_vor-Approval_at_hand1672006 | ||
48.281.8300-1 | ÜG_Überwachungsgutachten-Certificate_of_Conformity718278 |
