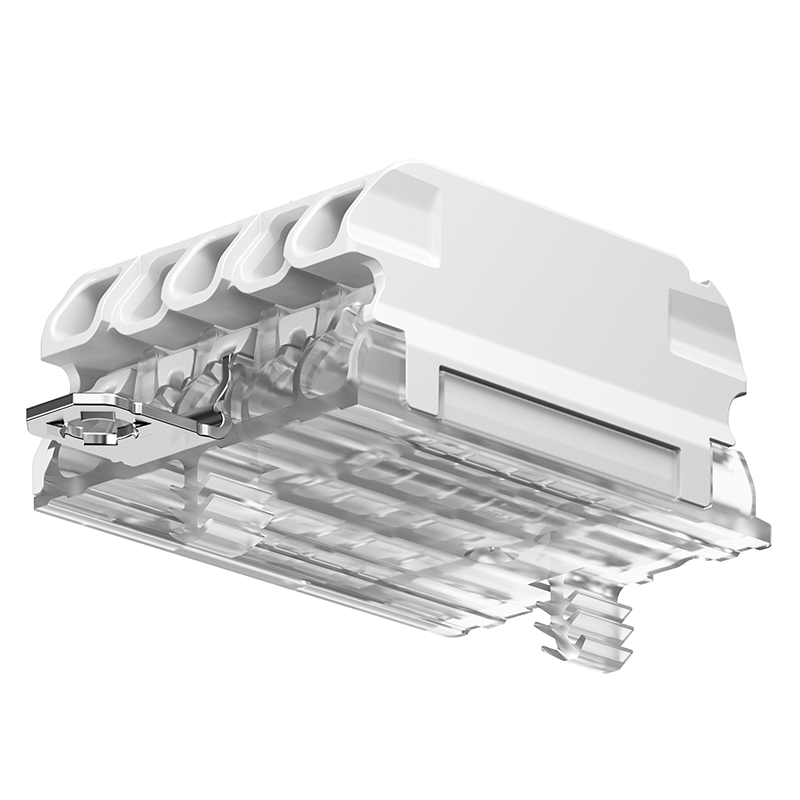

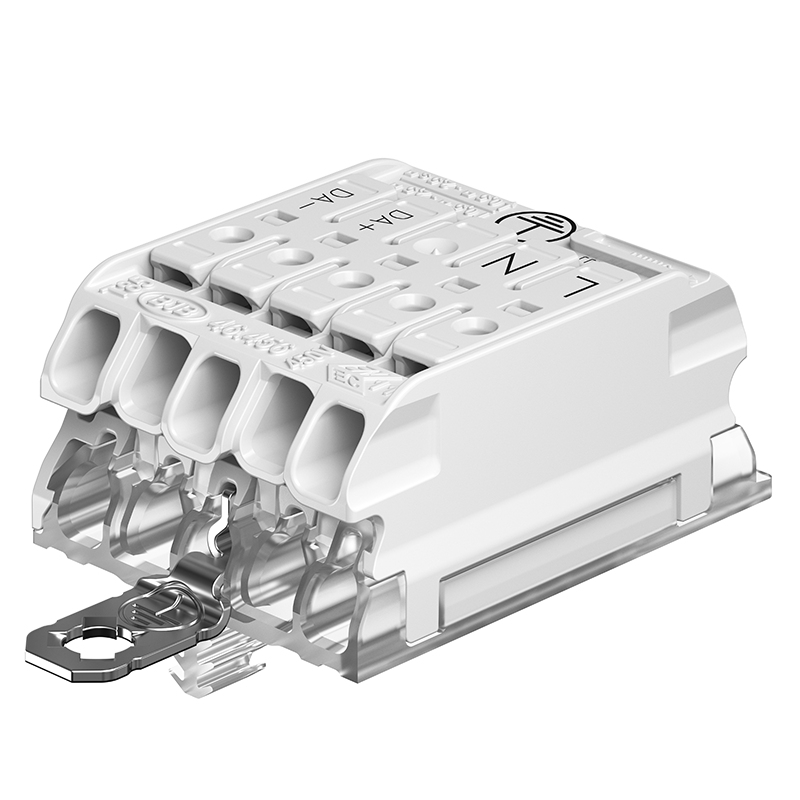

Compact Rast5 Profile Groove L-N-ES-D+-DA- EB terminal block

Product information "Compact Rast5 Profile Groove L-N-ES-D+-DA- EB terminal block"
New family of RAST5 Terminal Blocks with 16mm height, a perfect fit to all standard ECGs
  • Wire release function on both sides for top connection
  • Easy to use by push wire contacts
  • Stranded wires on top connection possible
  • Multiple earthing possibilities: earthing bracket, rapid earth contact and earthing sign
  • Different mechanical fixation methods: snap-in pins, pin for aluminum profiles and screw mounting
  • Different standard markings available, more on demand
  • Ausführung: marking L N ⏚ DA+ DA- and earthing bracket
    Certification Mark: ENEC11 Certificate License No. 19415-003
    Certification Status: active
    Conductor cross-section: 0.5 - 2.5 mm²
    Connector: push wire contact
    Contact opening: Upper connection: Conductor can be detached using a screwdriver, push and detachable Lower connection: conductor can be released using a release pin, turning and pulling
    Earth contact : Earth bracket

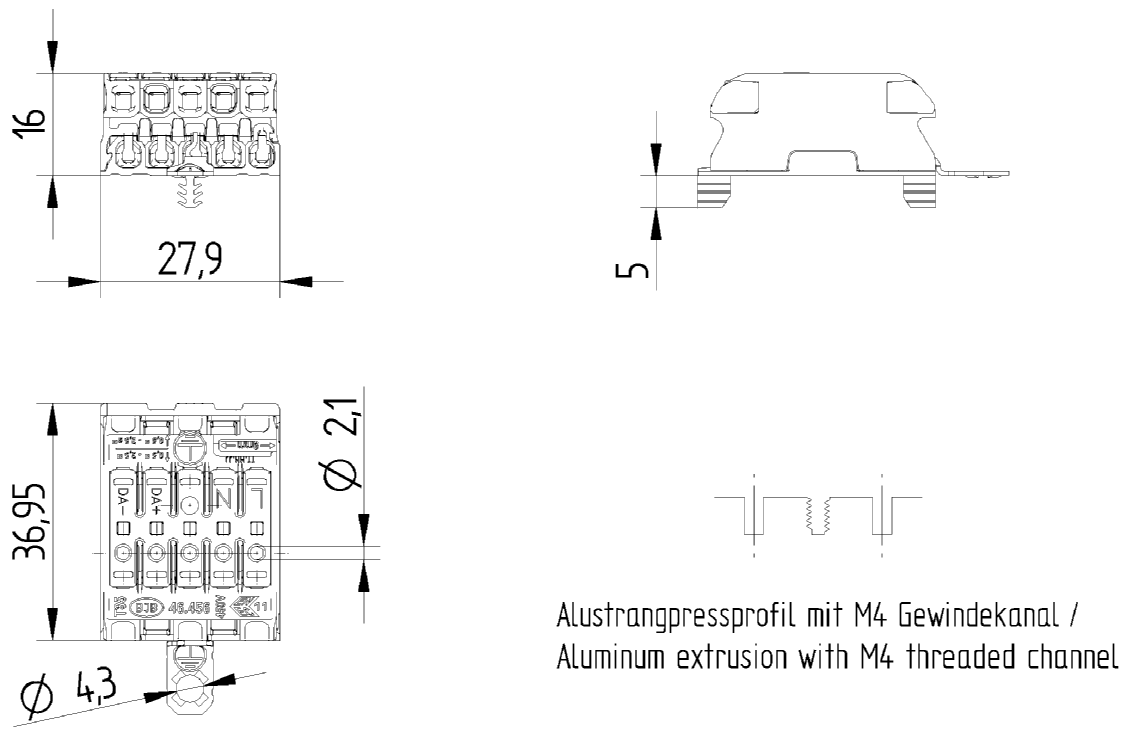

    Height: 16 mm
    Length: 37 mm
    Lettering: L N ⏚ DA+ DA-
    Material: Housing: PC white and clearContacts: Cu
    Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
    Number of poles: 5
    Operating current: 24A
    Operating temperature: -40 °C to 85 °C (at maximum testcurrent of 24 A)
    Operating voltage: 450V
    Other: Test opening Ø 2.1 ± 0.1 - Contact depth 4.2 mm
    Packaging quantity: 400
    Producttype: Compact Rast 5 terminal block
    Series: Compact Rast 5 terminal blocks
    T-marking: T85 (IEC) / T105 (UL)
    UL?: yes
    Width: 27,9 mm
    Wire length: Stripping length 9 - 10 mm
    Wiring: Push wire contact
    mounting method 1: Pin for profile groove

    Certifications

    Article Number Status Description Documents
    46.456.1012-0 ENEC_Zeichen-ENEC_Approval7066641
    46.456.1012-0 cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)7072587
    • 9 - 10 mm

    • ø 0.5 - 2.5 mm²

    • ø 0.5 - 2.5 mm²

    • ø 1.5 - 2.5 mm²
