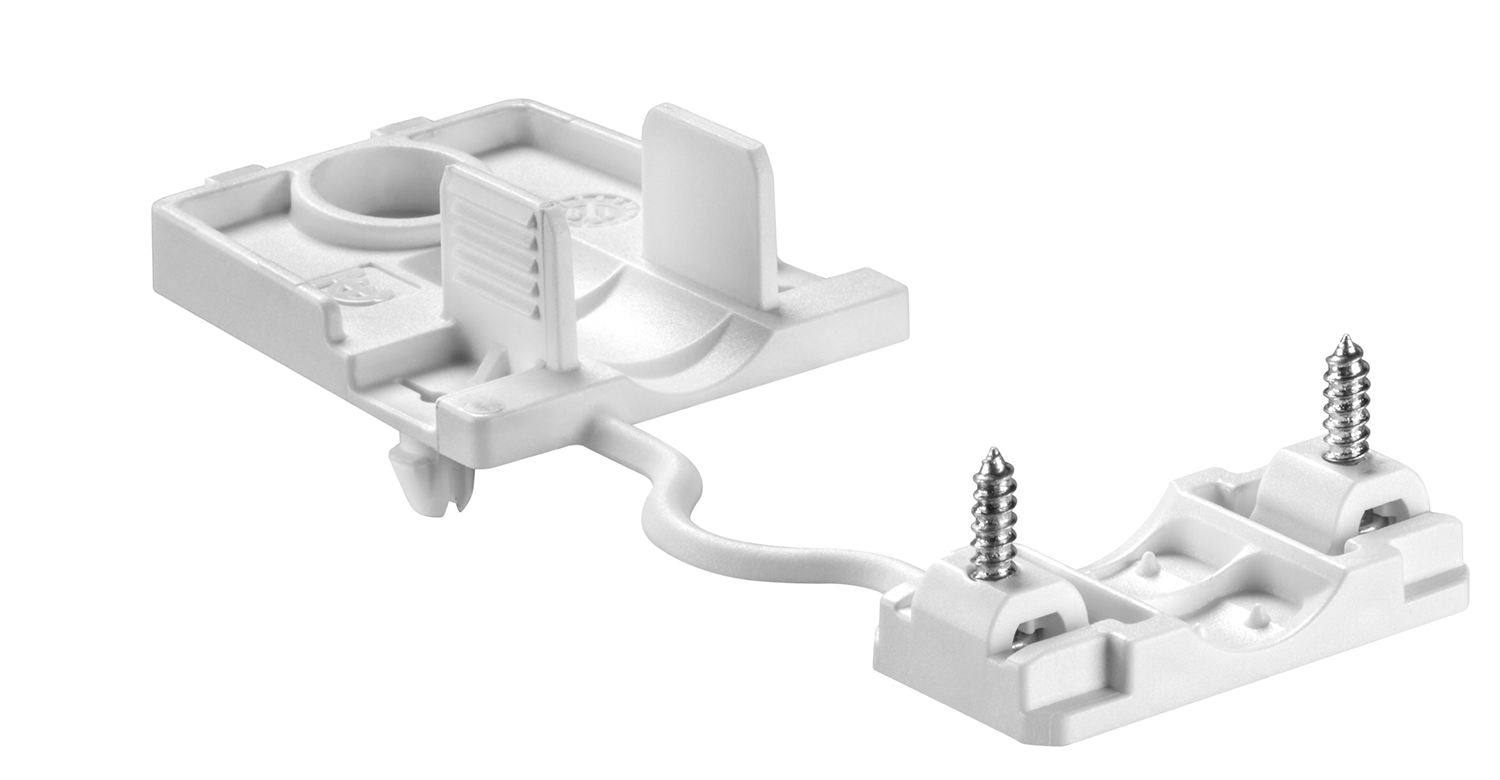

Fixing plate with strain relief
Article number:
46.903.A002-0
Product information "Fixing plate with strain relief"
Fixing plate with strain relief
Mechanical Properties:
- Cable diameter: Ø 5.0 - 9.5 mm
- Plate thickness incl. varnish: 0.5 - 1.2 mm

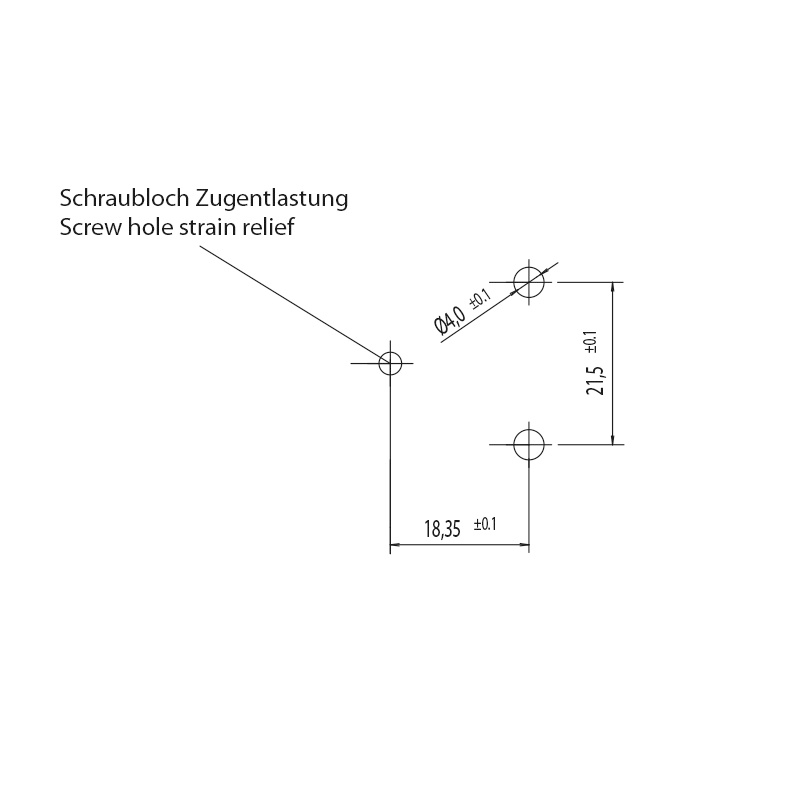

- Assembling: Ø 3.9 x 9.5 mm or DIN 7985 M4 x 6 mm
- Tightening torque: 1.2 Nm
- Tool for clamping device: PH 1 cross recess
- Tightening torque for clamping device: 0.5 Nm
| Color: | white |
|---|---|
| Packaging quantity: | 500 |
| Producttype: | Compact Rast 5 terminal block |
| Series: | Compact Rast 5 terminal blocks |
| Weight: | 4,1 g |
