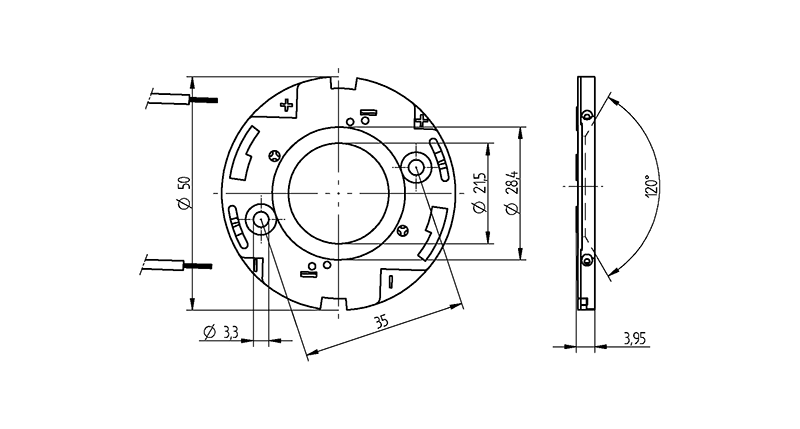

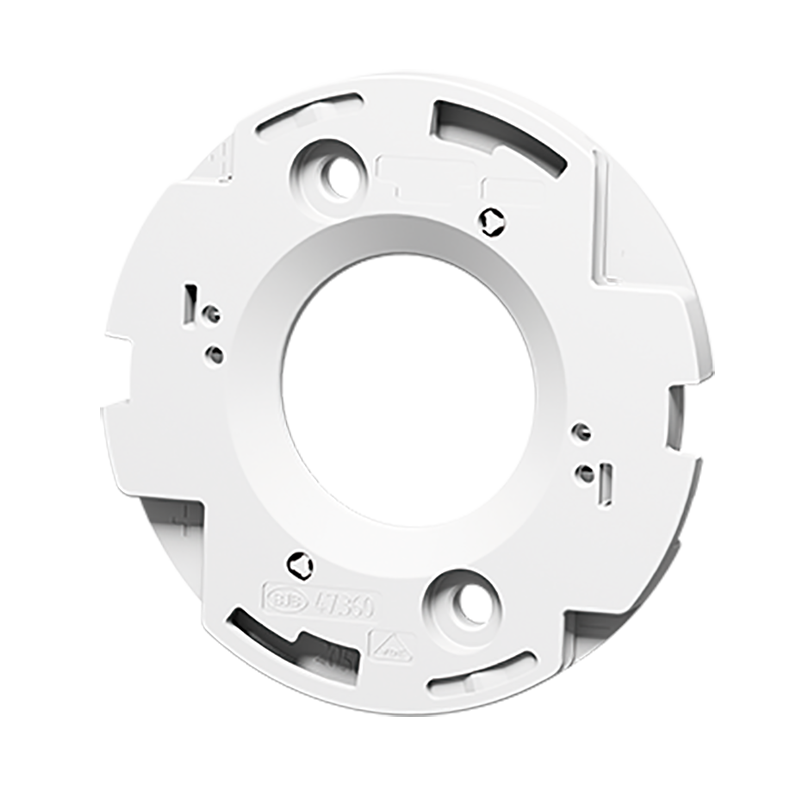

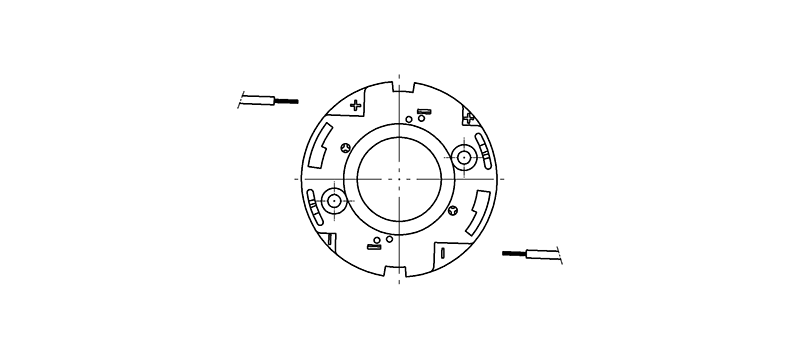

COB Connector Slim Ø50 LED array 23.85x23.85
Article number:
47.360.2050-0
EAN:
4049853
-
0,35-0,5 mm²
-
-
-
0,35-0,5 mm²
-
0.35-0.5 mm²
-
8.0 + 1 mm
Product information "COB Connector Slim Ø50 LED array 23.85x23.85"
With integrated COB holder and interface for reflectors 47.950
Easy pre-assembly of LED
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 8+1 mm
Polarity symbols of connector and LED must be observed in assembly
Specification of LED manufacturer must be observed
In a series connection of LED modules, the air gap and creepage distances has to be sized that each module covers the total voltage of the series connection
*Please note the max torque of the COB manufacturer
Easy pre-assembly of LED
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 8+1 mm
Polarity symbols of connector and LED must be observed in assembly
Specification of LED manufacturer must be observed
In a series connection of LED modules, the air gap and creepage distances has to be sized that each module covers the total voltage of the series connection
*Please note the max torque of the COB manufacturer
| Conductor cross-section: | 0.35-0.5 mm² |
|---|---|
| Country of origin: | DE |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110°C |
| Packaging quantity: | 420 |
| Pre-centring for COB: | Yes |
| Producttype: | Slim Spotlight Connectors and Accessories |
| Rating: | 3A / 150 VDC |
| Series: | COB Slim Connectors - 47.360 |
| Type of packaging: | Bag |
| Weight: | 5,3 g |
| mounting method 1: | Screw mount |
| mounting method 2: | P2F fixing with 28.902.-102 |
| mounting method 3: | Tip for fastening by screws: The screw chamber of the 47.360 series has a height of 1.9 mm. The screw head must not be higher, otherwise the reflector will fit poorly or not at all. |
| old article number: | 47.360.2050.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 47.360.2050-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity5663881 | ||
| 47.360.2050-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 |
Suitable for the following LED types
| LED manufacturer | LED designation | More information |
|---|---|---|
| Cree | CXB2540 | cree-led.com |
-
0,35-0,5 mm²
-
-
-
0,35-0,5 mm²
-
0.35-0.5 mm²
-
8.0 + 1 mm
