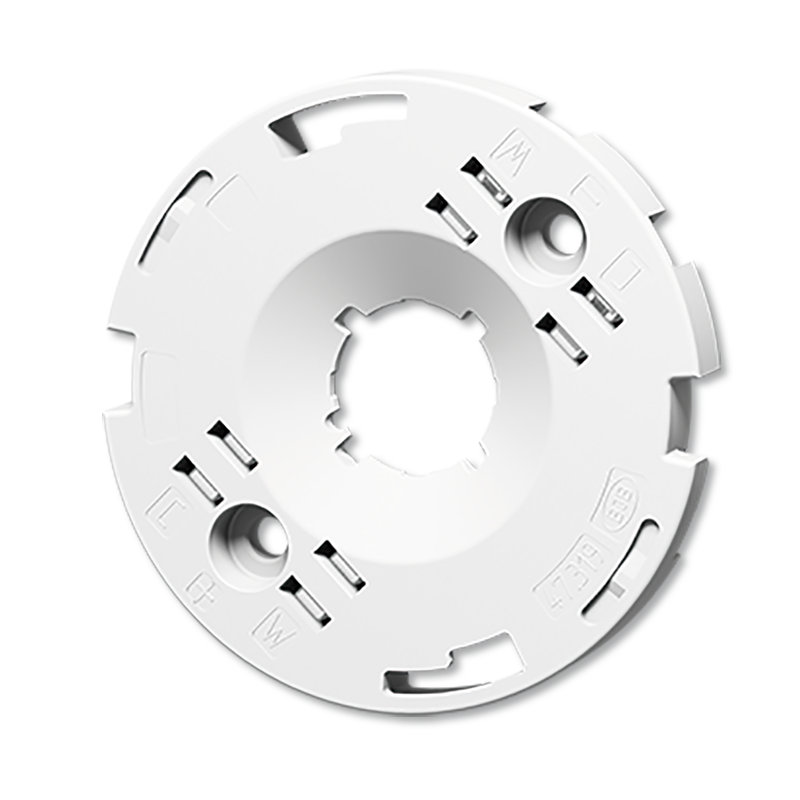

COB Connector Ø50 LED array 15.85x15.85

Article number: 47.319.2360-0

EAN: 4049853

0,25 - 0,5 mm²
0,25 - 0,5 mm²
0,5 mm²

Product information "COB Connector Ø50 LED array 15.85x15.85"

With integrated reflector interface
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer

Conductor cross-section:	0.5 mm²
Material:	Housing: PBTContacts: CuSn
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature:	max. 130°C
Packaging quantity:	504
Pre-centring for COB:	No
Producttype:	Spotlight Connectors and Accessories
Rating:	3A / 150 VDC
Series:	COB Connectors - 47.319
cURus file no.:	E-345385
mounting method 1:	Screw mount
mounting method 2:	P2F fixing with 28.902.-102
old article number:	47.319.2360.50

Available Downloads

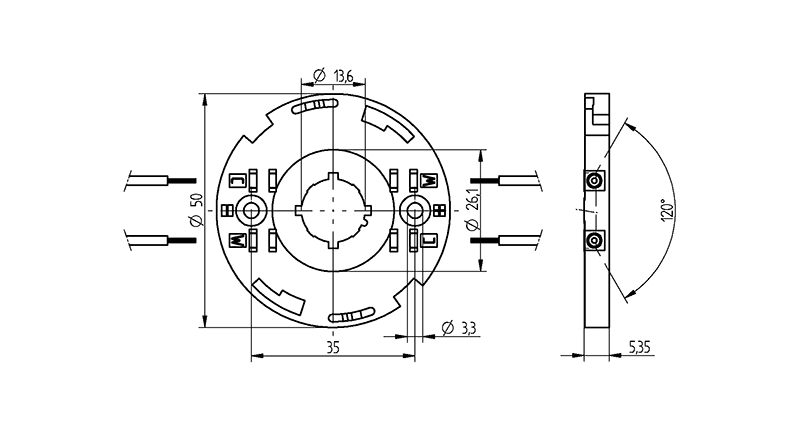

Available CAD Downloads

3D-CAD_(STEP,_Parasolid,_IGES,_3D-PDF)01T-A8E-03

Certifications

Article Number	Status	Description	Documents
47.319.2360-0			ÜG_Überwachungsgutachten-Certificate_of_Conformity5852779
47.319.2360-0			cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952
47.319.2360-0			Genehmigung_liegt_vor-Approval_at_hand5665445
