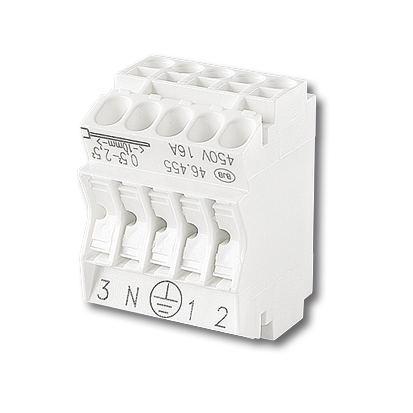

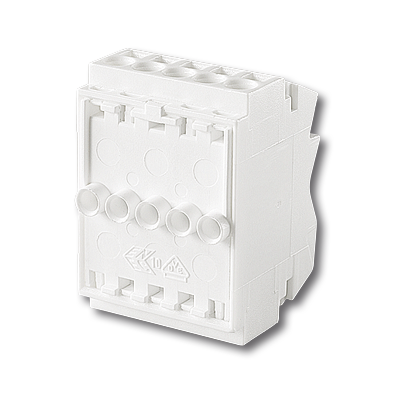

Terminal block (Rast 5)

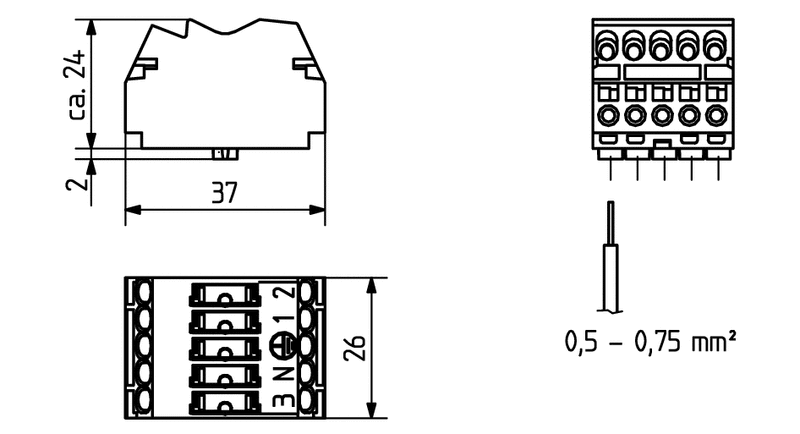

Release button on the inside for the upper connections (see drawing)
Release options for bottom connections (Wire release by twist and pull)
Color: | white |
---|---|
Lettering: | 3 N ⏚ 1 2 |
Luminaire wall thickness: | 0.5 - 1.0 |
Material: | Housing: PC (V0) |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Number of poles: | 5 |
Operating current: | 24A |
Operating voltage: | 450V |
Packaging quantity: | 250 |
Producttype: | 5 pole - Rast 5 pushwire terminal |
Series: | Rast5 pushwire terminals 5 pole |
Weight: | 17 g |
mounting method 1: | For recessed embodiment |
old article number: | 46.455.4001.50 |
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|---|---|---|
46.455.4001-0 | Genehmigung_liegt_vor-Approval_at_hand3416135 | ||
46.455.4001-0 | ENEC_Zeichen-ENEC_Approval4254164 | ||
46.455.4001-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 |
