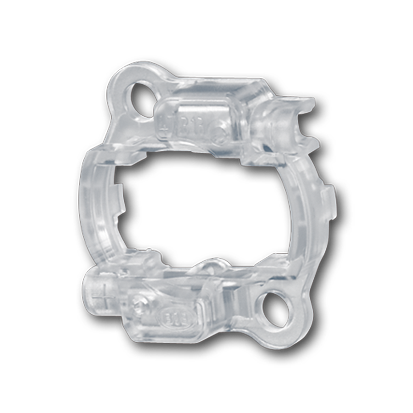

STARboard Connector for Side-Emitter LED
Article number:
47.313.1900-0
EAN:
-
-
0,5 mm²
-
-
0,25 - 0,5 mm²
-
-
Product information "STARboard Connector for Side-Emitter LED"
Not for use with lenses
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Test ports
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg - no. D060
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Test ports
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg - no. D060
*Please note the max torque of the COB manufacturer
| Color: | colorless |
|---|---|
| Conductor cross-section: | 0.5 mm² |
| LED?: | intended for the use of COBs |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 90°C |
| Packaging quantity: | 250 |
| Pre-centering for COB: | No |
| Producttype: | Connectors for Starboards and Accessories |
| Series: | Starboard Connectors - 47.313 |
| Suitable for: | without centering for Side-Emitter LED's |
| UL: | no |
| Weight: | 1 g |
| mounting method 1: | Screw mount |
| old article number: | 47.313.1900.85 |
