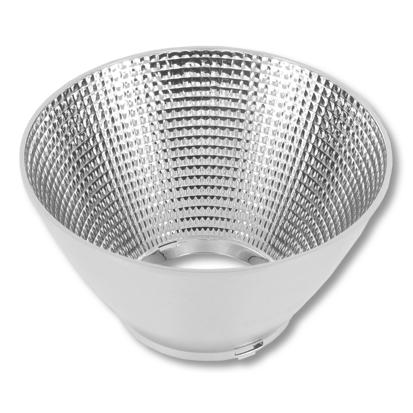

Reflector Medium, Ø 92 mm
Article number:
47.950.E305-0
EAN:
4049853
Product information "Reflector Medium, Ø 92 mm"
Reflector can only be used by screw fixing the spotlight connector with dome headed screws and locking washer
*Beam angle (FWHM) measured with Citizen CLU38 and connector 47.319.2314.50. Beam angle depends on the COB used.
*Beam angle (FWHM) measured with Citizen CLU38 and connector 47.319.2314.50. Beam angle depends on the COB used.
| Light Distribution: | Medium |
|---|---|
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 192 |
| Producttype: | OptiSpot Reflectors Ø 92 mm |
| Series: | Reflectors Ø 92 mm for Spotlight Connectors Ø 50 mm |
| Type of packaging: | Carton |
| Weight: | 32 g |
| old article number: | 47.950.-305.56 |
