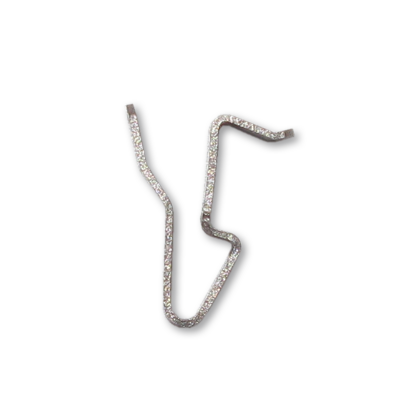

P2F Screw'n'Profile Groove P 3.5
Screw'n'ProfileGroove P2F P35 - Fixing Element for PCBs

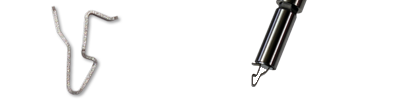

Quick, secure assembly using (manual) setting devices with magnet
No shadowing of the LED, lowest possible design above the LED module while fulfilling attachment and contact pressure functions
Coordinated system guarantees permanent contact pressure for the module by means of very strong but elastic metal spring
After installation a permanent contact force of 10N is guaranteed
Form-fitting snap-in connection
Shock and vibration resistant

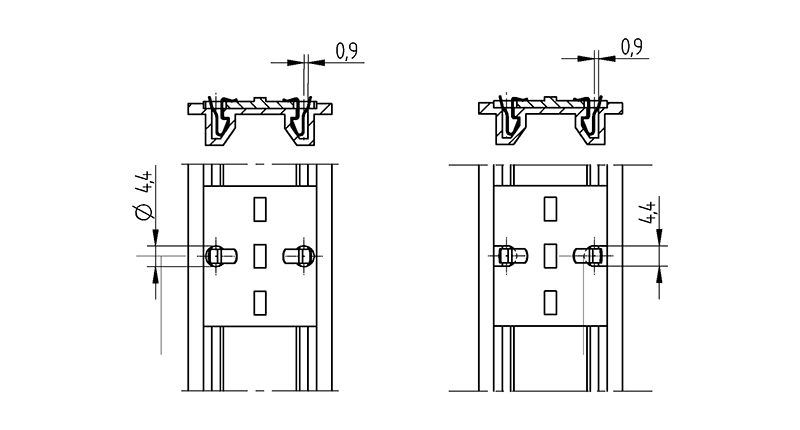

Floating connection compensates tolerances and thermal length variations

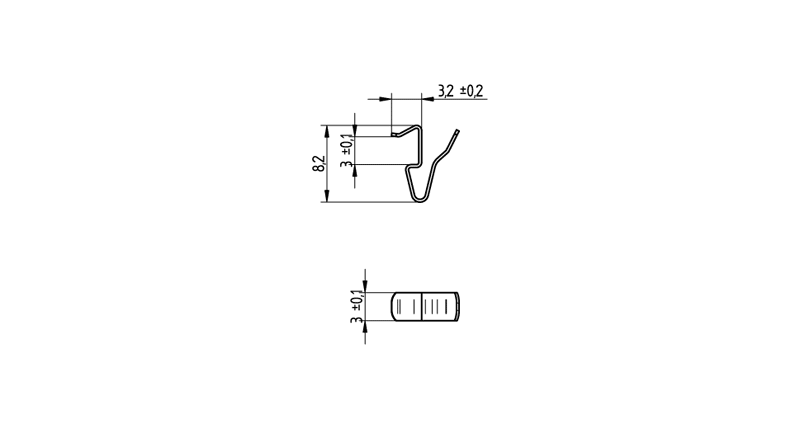

A defined clamping range 3,5mm +/-0,2 (package thickness), made up of LED module and profile step)
Lower insertion force compared to the axial force required for the screw-fixing processr
| Country of origin: | DE |
|---|---|
| Material: | CrNi |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |

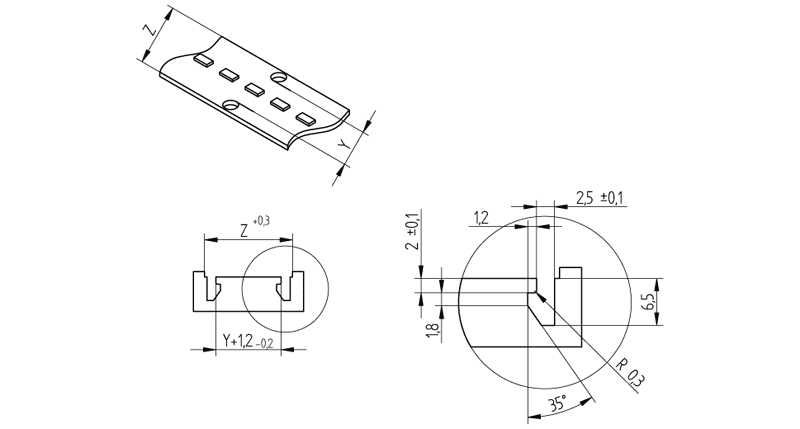

| Package thickness (X): | Thickness of LED module and aluminium profile: 3.5 ±0.2 mm |
| Packaging quantity: | 4000 |
| Producttype: | P2F Screw and Profile Grooves Fixing Elements for PCBs |
| Series: | P2F Screw'n'Profile Groove Fixing Elements for PCBs |
| Suitable for: | for Screw and Profile Grooves in PCBs |
| Type of packaging: | Bag |
| Weight: | 2 g |
| mounting method 1: | Push-in fixing for mounting PCBs |
| old article number: | 28.903.-101.10 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|

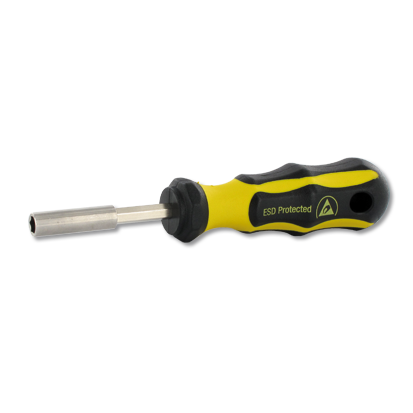

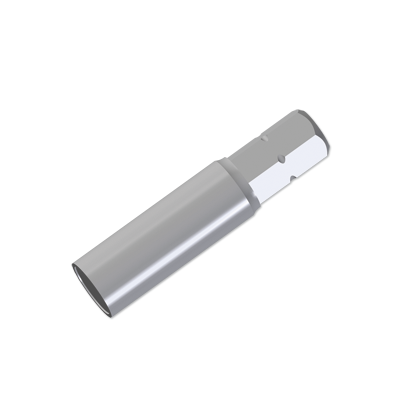

Accessories
