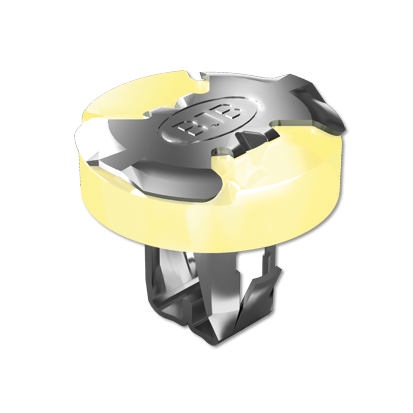

P2F (Push-to-Fix) Fixing element for LED modules
Provides consistent and constant contact pressure by elastic silicone ring
Contact pressure: min. 5 N
• Quick assembly process improves production efficiency and reduces production costs
• Eliminates potential damage from screw fixing due to low insertion forces
• CrNi and silicone materials ensure long life reliability
• Reliable heat dissipation due to a constant pressure
• Suitable for Zhaga standardised hole sizes of ø 4.7 mm in LED modules to ensure future proofed designs
• Assembly without any additional tools
• Solutions for Automation upon request
• Removable connection
Color: | transparent yellow |
---|---|
Country of origin: | DE |
Material: | CrNi with silicone ring |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |

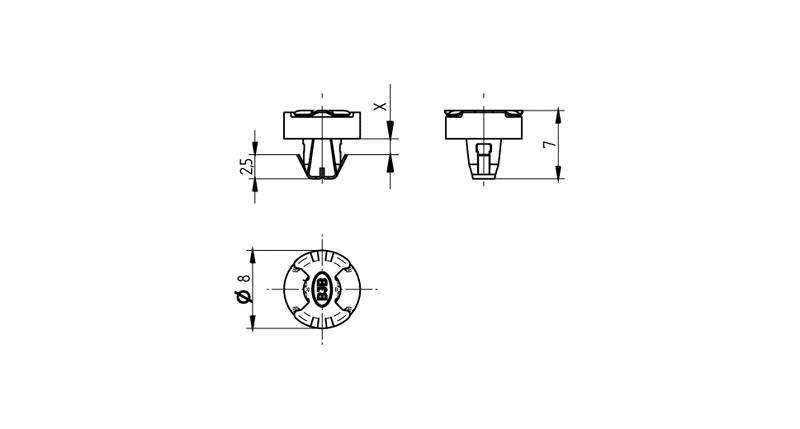

Package thickness (X): | 2.0 - 2.4 mm |
Packaging quantity: | 5000 |
Producttype: | P2F Silicone Fixing Elements for PCBs |
Series: | P2F Silicone Fixing Elements for PCBs |
Suitable for: | for PCBs, LED modules |
Weight: | 0,25 g |
mounting method 1: | Push in fixing: for hole pattern ø 4.2 mm |
old article number: | 28.901.U163.10 |
Available Downloads
- Further_Information_P2F-2
- Weitere_Informationen_P2F-2
- US_General_Information
- Allgemeine_Informationen
- BJBDE-6203428-v1-BJB_Prospekt_P2F_Befestigungselemente_UPDATE_01.2020
- BJBDE-6203428-v1-BJB_Prospekt_P2F_Befestigungselemente_UPDATE_01.2020
- BJBDE-6918384-v1-Data_Sheet_28_901_U16x_P2F_(Standard_Push_to_Fix)
- BJBDE-6918382-v1-Datenblatt_28_901_U16x_P2F_(Standard_Push_to_Fix)
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|
