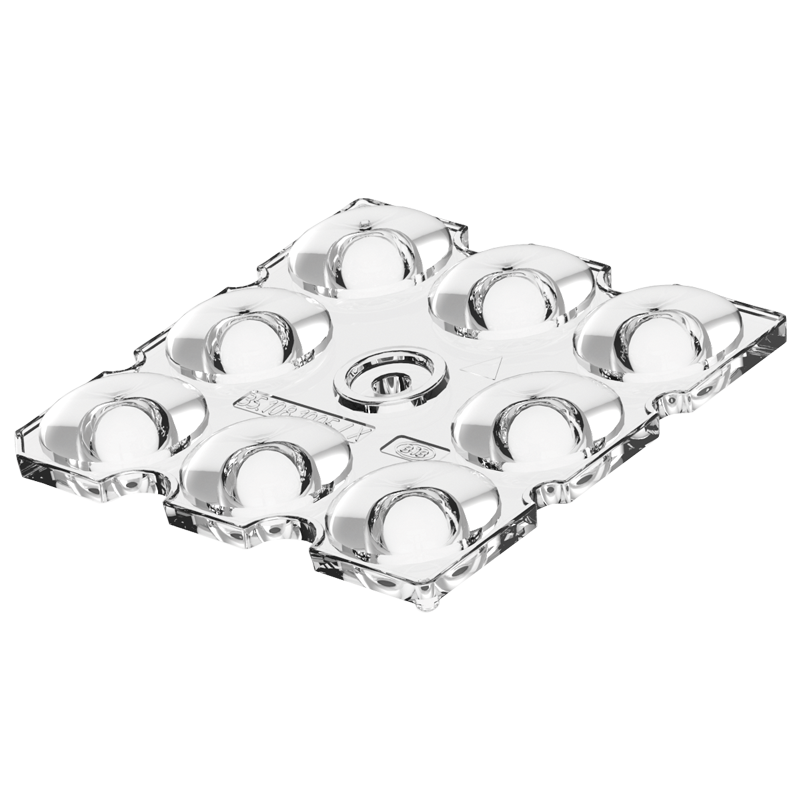

OptiSquare 8in1 - IESNA Type 5
Article number:
35.108.1005-0
EAN:
4049853
Product information "OptiSquare 8in1 - IESNA Type 5"
Typical application:
• Walkways, paths and sidewalks
• Entrance roadways
• Loading and access ramps
• General road and street lighting
• Car parks and parking area lighting
• Perimeter of parking areas
• Center of roadways and intersections
• Walkways, paths and sidewalks
• Entrance roadways
• Loading and access ramps
• General road and street lighting
• Car parks and parking area lighting
• Perimeter of parking areas
• Center of roadways and intersections

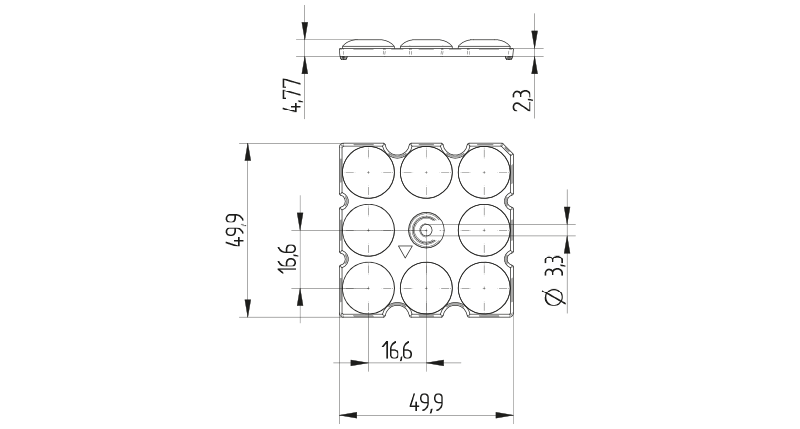

| Ausführung: | according to Zhaga Book 15 |
|---|---|
| Color: | clear |
| Height: | 4.77 mm |
| Length: | 49.9 mm |

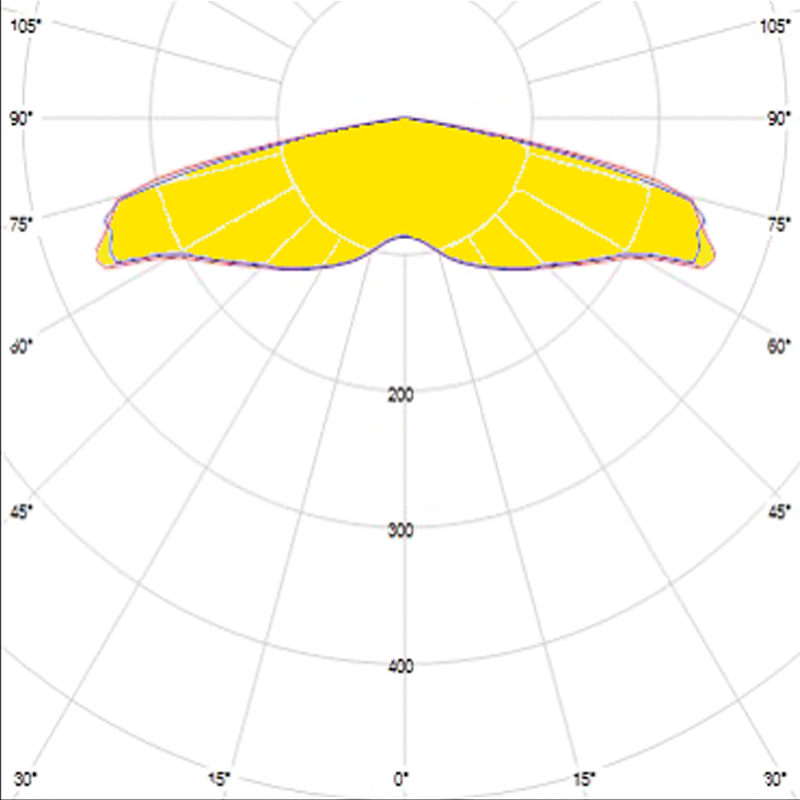

| Light Distribution: | IESNA Type 5 |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40°C up to +80°C |
| Packaging quantity: | 500 |
| Pitch distance: | 16.6 mm |
| Producttype: | 8-in-1 Optics for LED Street and Area Lighting |
| Series: | 8-in-1 Optics for Street and Area Lighting |
| Suitable for: | Suitable for CSP (Chip Scale Package) LED chips andLED modules according to Zhaga Book 15 |
| Surface: | Lens surface: highly polished |
| Weight: | 8,3 g |
| Width: | 49.9 mm |
| mounting method 1: | Screw fixing: (0.5 Nm) for screws M3 |
| old article number: | 35.108.1005.85 |
