OptiSpot Reflector Ø 110 mm - Flood
Article number:
35.850.1003-0
EAN:
-
-
-
Flood
Product information "OptiSpot Reflector Ø 110 mm - Flood"
Reflector is optimized for use with connectors 47.319.2013 / 2021 / 2025 / 2026 / 2345 and 47.360.5010 with Ø 50 mm

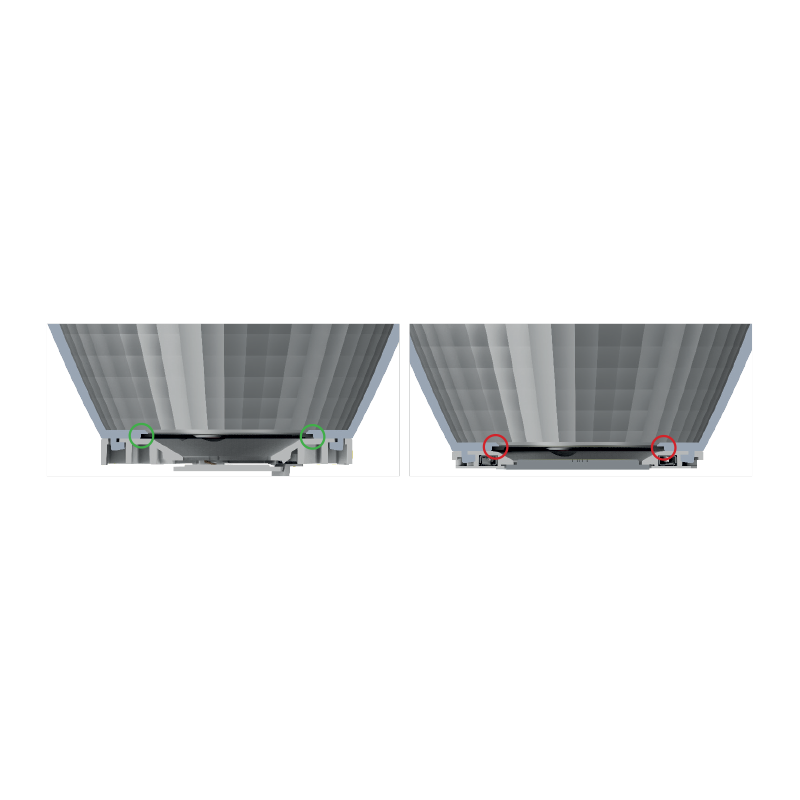

• Reflector interface is adapted to the mixing cone of the connector
• Possibly visually disruptive openings of the connector are partly covered
Recommended for COB's with LES < 17 mm

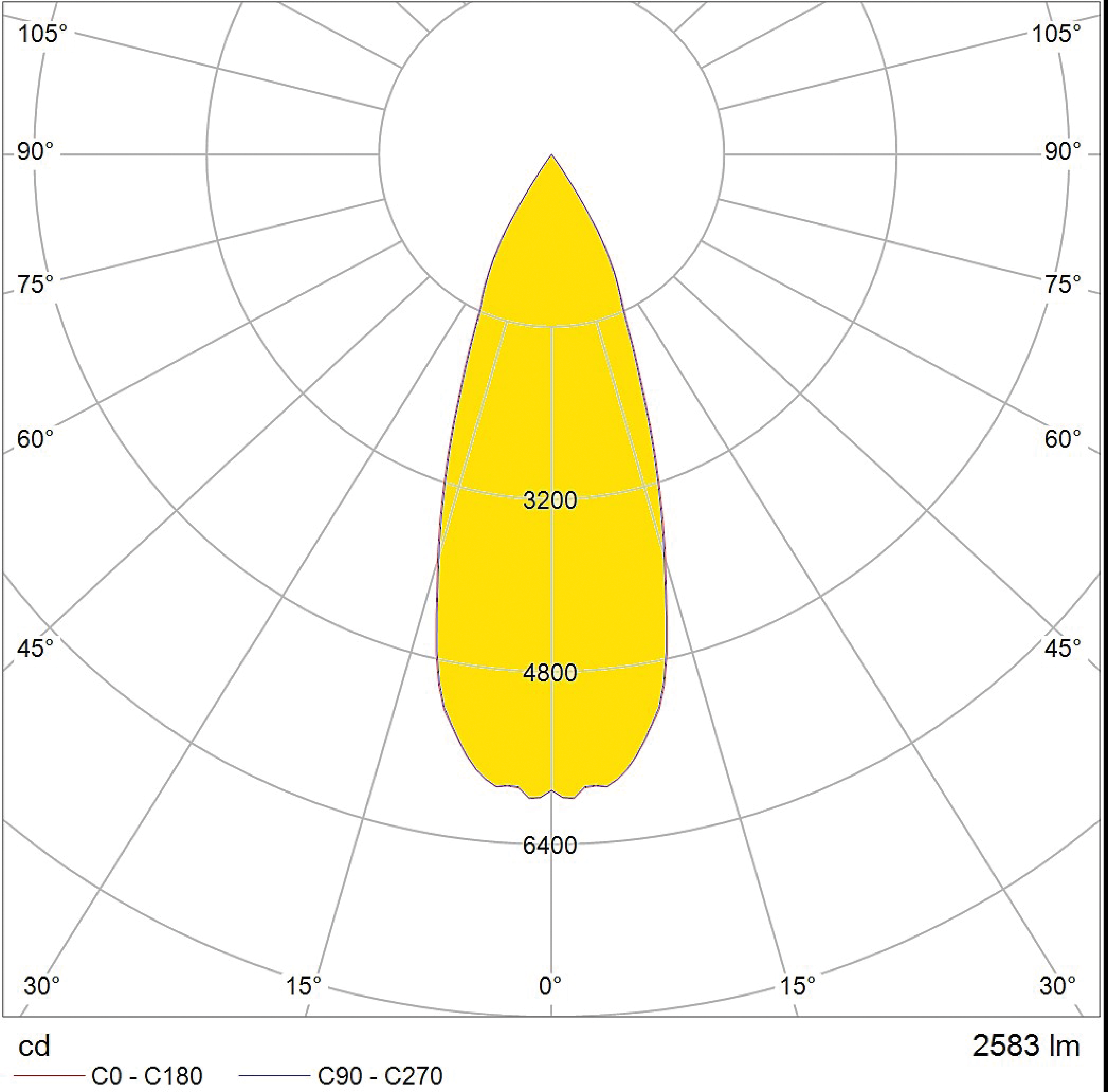

Beam angle (FWHM) measured with Citizen CLU38 and connector 47.319.2025
Beam angle depends on used COB and its LES.

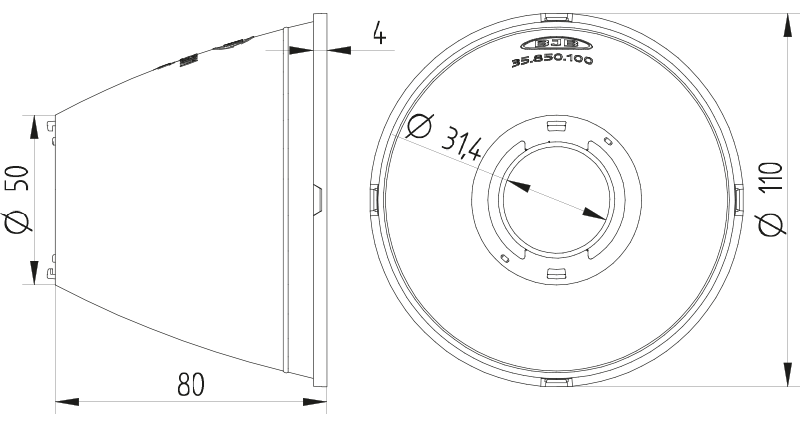

| Height: | 80 mm |
|---|---|
| Light Distribution: | Flood |
| Material: | PC, Aluminium coated |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 100 °C |

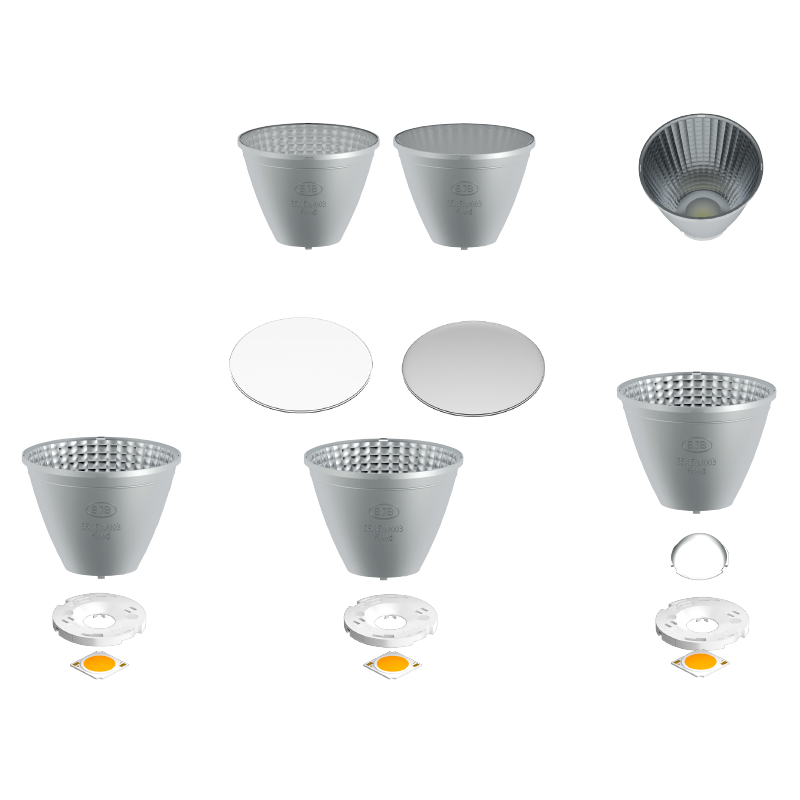

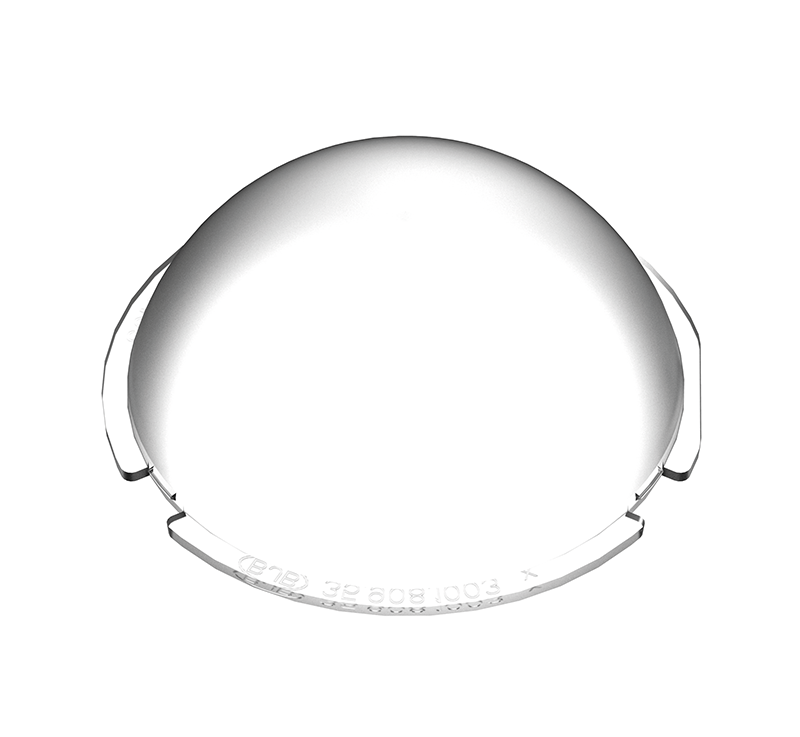

| Other: | cover and diffusor plates optionally available as an accessory |
| Packaging quantity: | 108 |
| Producttype: | OptiSpot Reflectors Ø 110 mm |
| Series: | Reflectors Ø 110 mm for Spotlight Connectors Ø 50 mm |
| Weight: | 65,1 g |
| mounting method 1: | Bayonet fixing by Twist & Lock action |
| old article number: | 35.850.1003.56 |
Available Downloads
- 35.850.1003_BJB_Reflector_D110mm_Flood_Citizen_CLU038_-_Mixing_Lens_IES
- 35.850.1003_BJB_Reflector_D110mm_Flood_Citizen_CLU038_-_Diffusor_IES
- 35.850.1003_BJB_Reflector_D110mm_Flood_Citizen_CLU038_-_Clear_cover_IES
- 35.850.1003_BJB_Reflector_D110mm_Flood_Citizen_CLU038_-_Mixing_Lens_LDT
- Weitere_Informationen_Spotlight_Connectoren
- 35.850.1003_BJB_Reflector_D110mm_Flood_Citizen_CLU038_-_Clear_cover_LDT
- 35.850.1003_BJB_Reflector_D110mm_Flood_Citizen_CLU038_-_Diffusor_LDT
- BJB_Datasheet_35_850_1003_56_Reflector_110mm_Flood_and_35_908
- BJB_Datenblatt_35_850_1003_56_Reflektor_110mm_Flood_und_35_908
