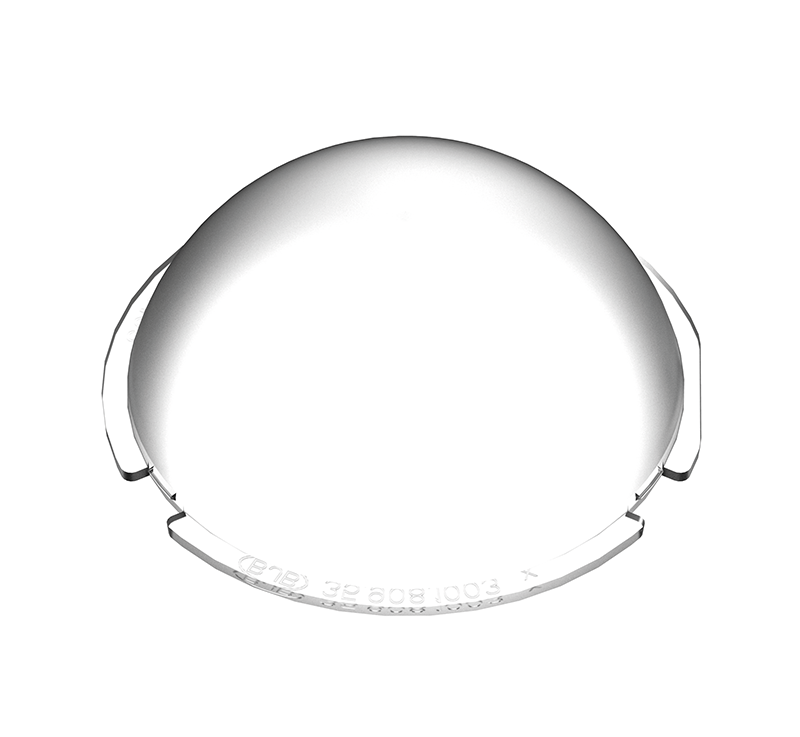

OptiSpot R lens - Diffusor lens
Article number:
35.908.1003-0
EAN:
4049853
Product information "OptiSpot R lens - Diffusor lens"
For use with reflectors
35.850.1005 - 1008.56 with Ø 74 mm
35.850.1009 - 1012.56 with Ø 92 mm
35.850.1001 - 1004.56 with Ø 110 mm
The following product properties are achieved by combining a reflector with a diffusor lens:
• Soft transition of the color fringes
• Possibly visually disruptive openings of the connector are partly covered
• Visible reflector design
Additional properties:
• Dust proof
• Insect protection
• Contact protection (COB)
| Material: | PC, clear, satined surface |
|---|---|
| Operating temperature: | max. 100°C |
| Packaging quantity: | 270 |
| Series: | Reflectors Ø 74 mm for Spotlight Connectors Ø 50 mm |
| Weight: | 2,4 g |
| mounting method 1: | Snap-in fixing onto bottom side of the reflector |
| old article number: | 35.908.1003.89 |
