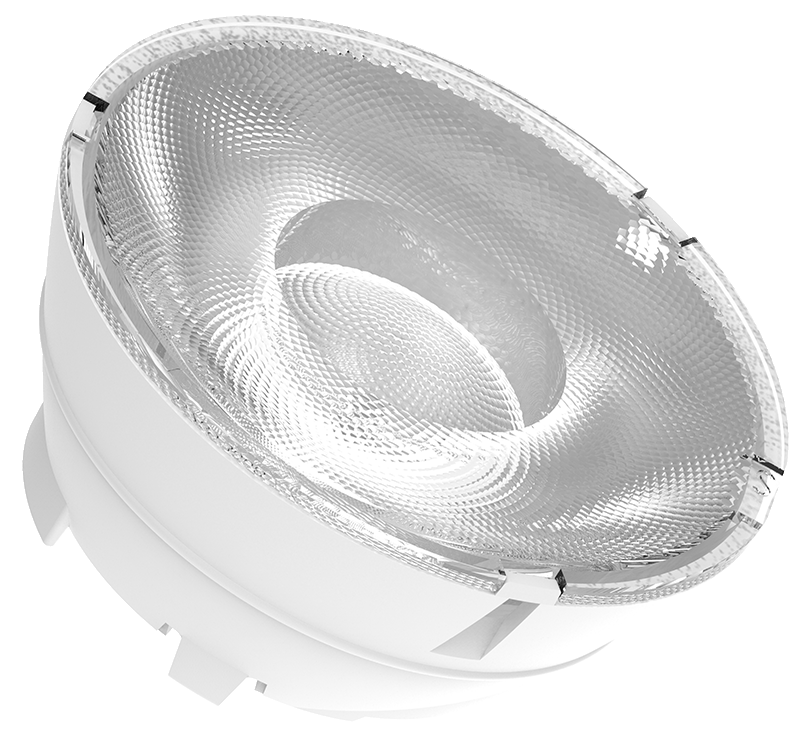

OptiSpot Lens Ø 69 mm - Spot New
Article number:
35.269.B009-0
EAN:
-
-
-
Spot
Product information "OptiSpot Lens Ø 69 mm - Spot"
OptiSpot Lens Ø 69 mm with holder in white or black - Spot
Bayonet fixing by Twist & Lock action
OptiSpot Lens for use with connectors 47.360.5010 0, 47.360.5015 0, 47.360.5084 0, 47.360.5090 0 with Ø 44 mm.
| Color: | white |
|---|---|
| Diameter: | 69 mm |
| Efficiency: | 92% |
| Height: | 29 mm |
| Light Distribution: | Spot |
| Material: | Holder: PC; Lens: PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40°C up to +80°C |
| Packaging quantity: | 150 |
| Producttype: | OptiSpot Lens Ø 69 mm |
| Series: | Lenses Ø 69 mm for Spotlight Connectors Ø 44 mm |
| Weight: | 62,4 g |
| mounting method 1: | Bayonet fixing by Twist & Lock action into cob connector |
