OptiLine Slim 20 - 24 - DA 560
Article number:
35.301.1013-0
EAN:
-
-
Double asymmetrical
Product information "OptiLine Slim 20 - 24 - DA 560"
Linear extrusion optic
• Extremely slim
• For application directly above the LED
• No additional profile for guidance required

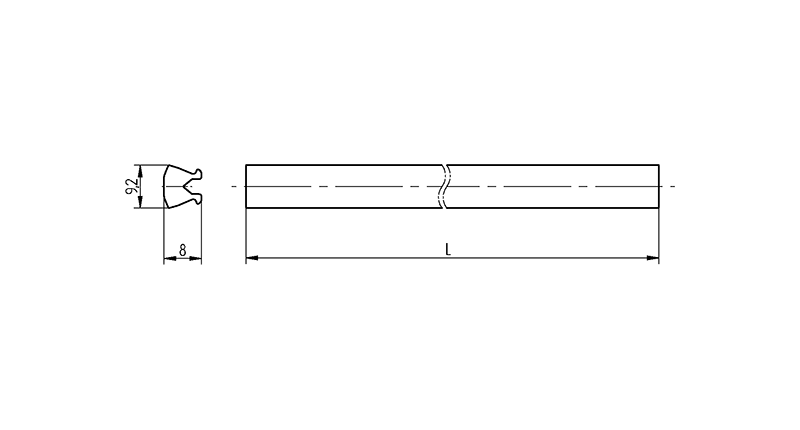

• Standard length: 560 and 1.120 mm
• Height: 7.9 mm
• Width: 10.3 mm
• Optics provides room for thermal expansion of the LED module
• For use as primary optics in linear and area lighting applications
• Uniform light distribution
• Additional versions on request
| Color: | clear |
|---|---|
| Length: | 560 mm |
| Light Distribution: | Double asymmetrical +/- 30° |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 100 |
| Producttype: | OptiLine Slim - 20 / 24 mm LED-System |
| Series: | OptiLine Slim - 20 / 24 mm LED-System |
| Suitable for: | LED Type 2835, 3030 and 5630 |
| mounting method 1: | Snap-in fixing into holder 31.930.-34X |
| old article number: | 35.301.1013.85 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|
-
Double asymmetrical
