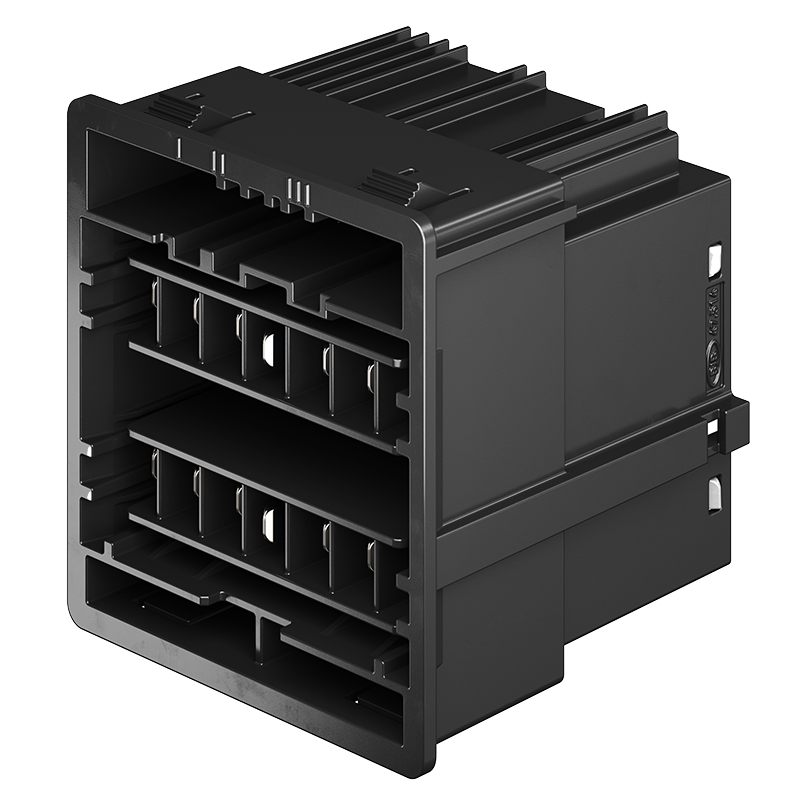

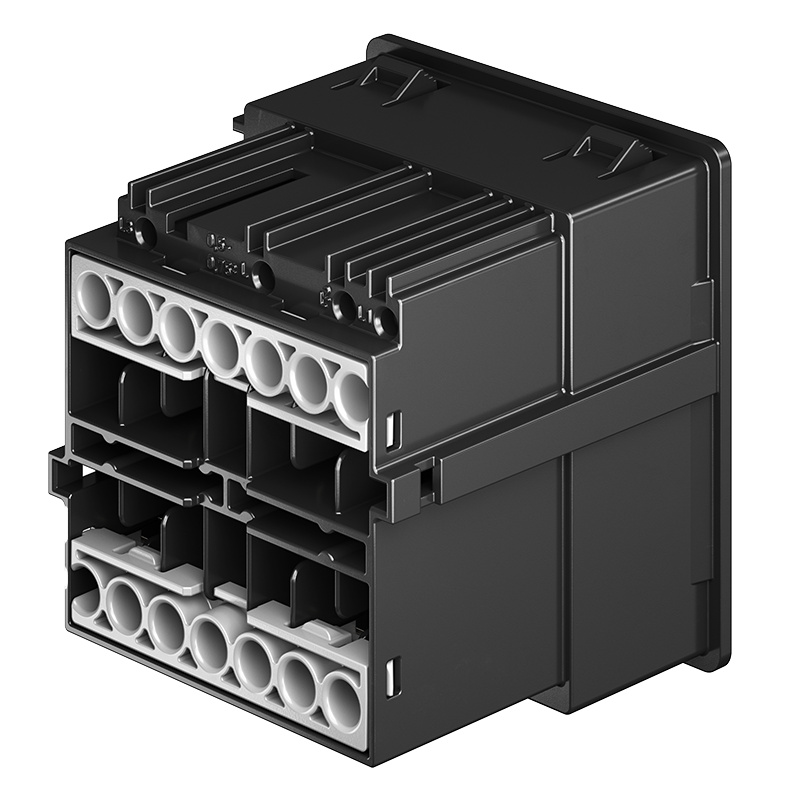

Male Mains Connector 14 pole
Article number:
47.514.4114-0
EAN:
-
Product information "Male Mains Connector 14 pole"

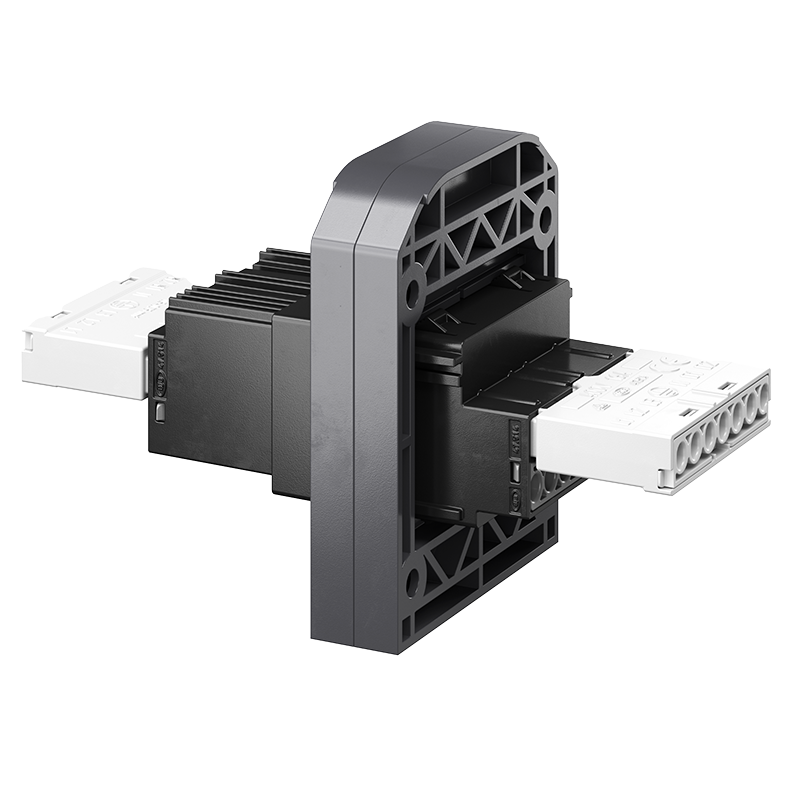

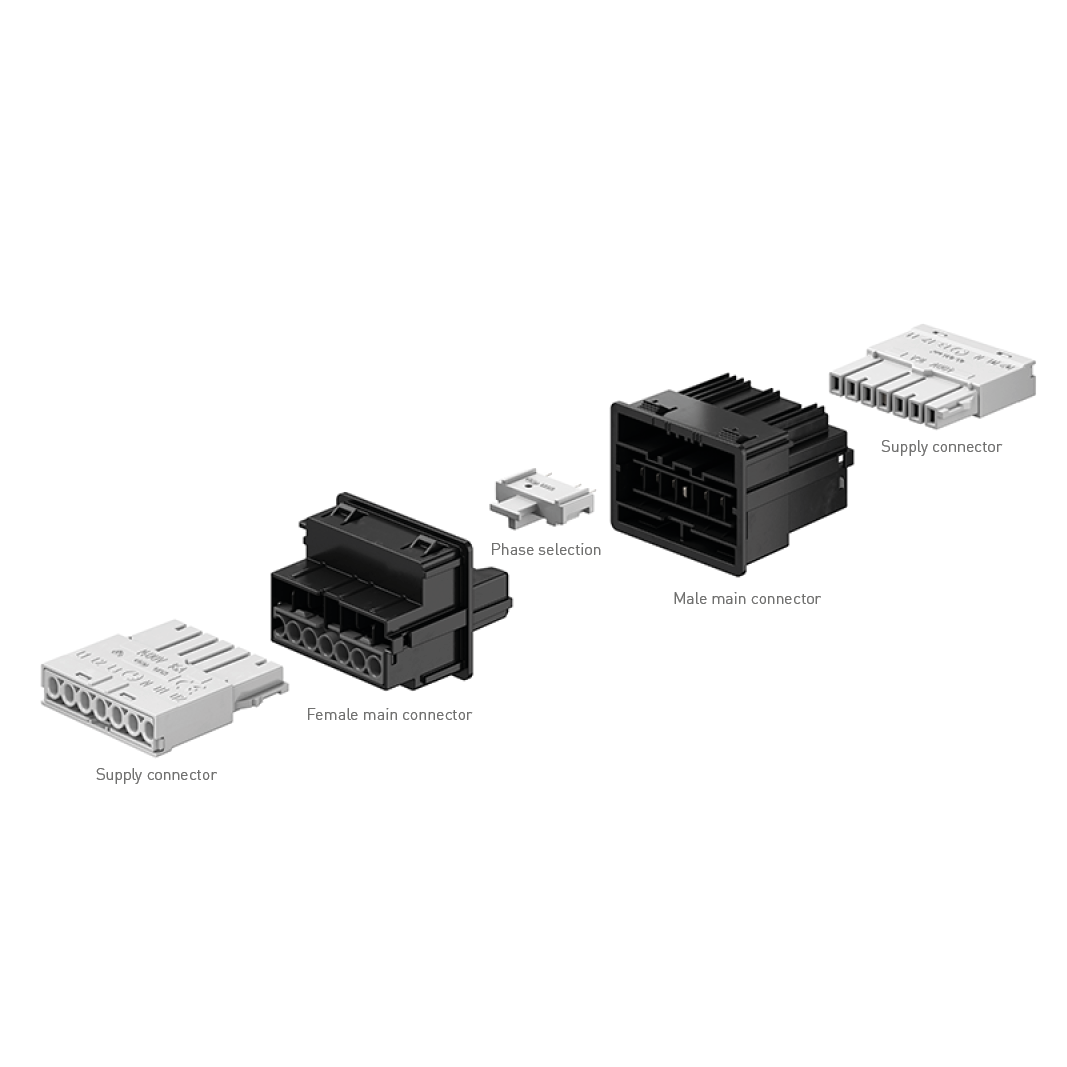

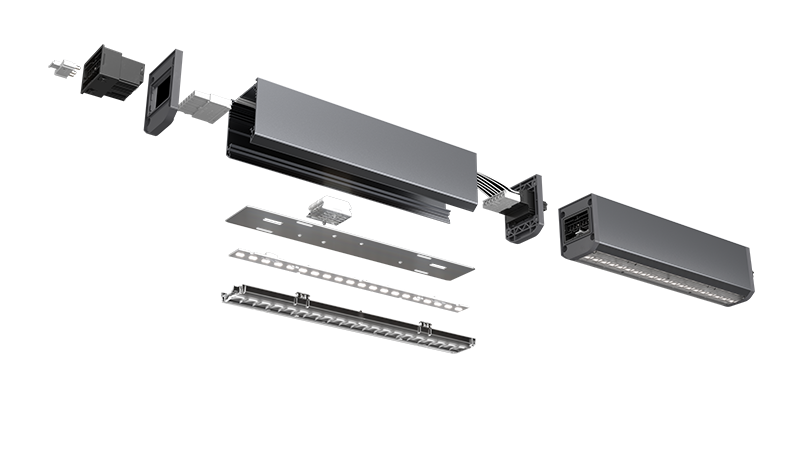

Male Mains Connector 14 pole standard connector system for trunking systems
- Standard connector system for integration into individual endcaps
- Versatile in usage for all type of endcaps that is needed within a full integrated trunking system or single luminaire solution
- Push-in contacts for all electrical connections
- Plug and play solution
| Certification Mark: | VDE MARKS APPROVAL for Connector (COC) 47.514 |
|---|---|
| Certification Status: | active |
| Conductor cross-section: | 1.5 - 2.5 mm² |
| Connector: | push wire contact |
| Contact opening: | not releasable |
| Earth contact : | Earth Sign central positioned |

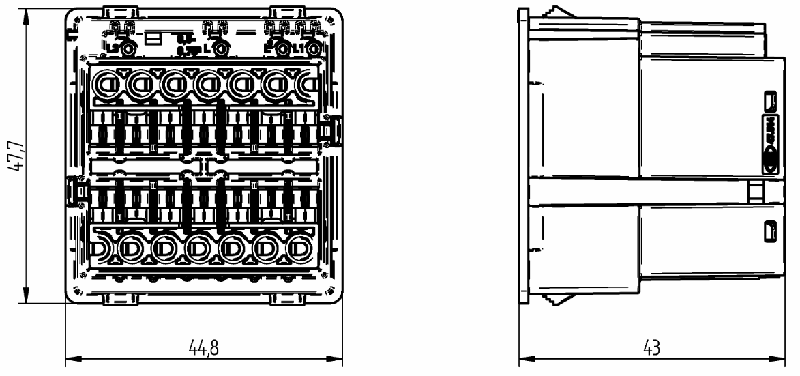

| Height: | 47,7 |
| IP-Protection type: | IP 20 |
| Length: | 41,6 |
| Material: | Housing: PA 6.6 |
| Max. operating current : | 16 A |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 14 |
| Operating temperature: | Surroundings temperature from -40°C up to +125°C |
| Other: | Mating - / Unamting cycles: 10 |
| Packaging quantity: | 1 |
| Producttype: | Connector System for trunking systems |
| Rated voltage: | 500 V |
| Resistance: | Glow wire resistance: 850°C |
| Seal: | no |
| Series: | Connector System |
| Weight: | 52,72 g |
| Width: | 44,8 |
| Wire length: | 12 - 15 mm |
| Wires: | Solid wires |
| mounting method: | Click-in fastening |
| old article number: | 47.514.4114.80 |
