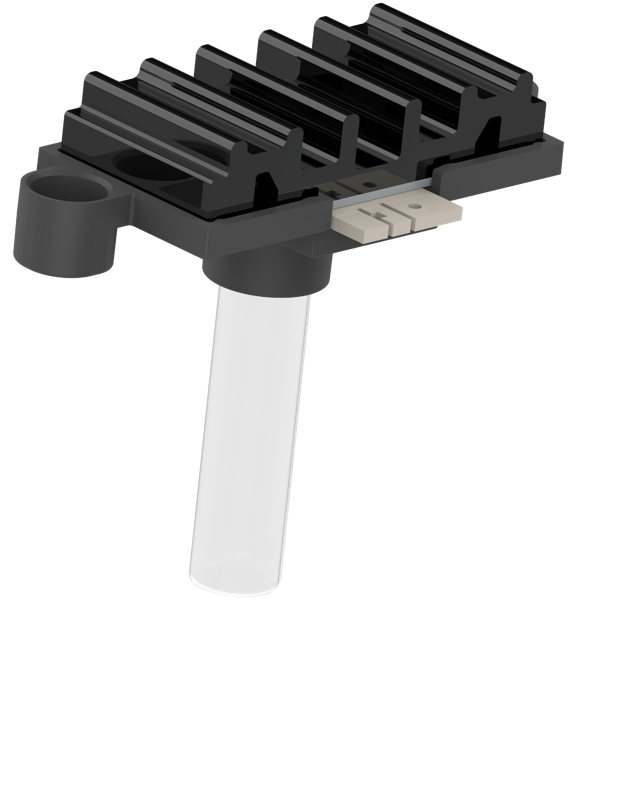

LED oven light with glass light guide rod New
Article number:
77.131.1001-0
EAN:
-
Product information "LED oven light with glass light guide rod"
• Symmetrical light distribution
• Screw fastening: for M3 screws
• Alternative fastening: with BJB P2F fastening element 28.905
• The variable length of the glass light guide rod allows for flexible installation heights within the appliance.
• Variable LED parameters (CCT, CRI, quantity)
• Protection class III due to operation with SELV voltage
• The maximum permissible current draw of the luminaire must be determined under the most unfavorable operating condition.
• The user is responsible for selecting suitable products and ensuring proper technical installation in accordance with the relevant standards (e.g., IEC 62031 and IEC 60335).
• Custom versions for higher requirements—such as vapor-tight designs, microwave shielding, or suitability for pyrolysis—are available on request.
• Screw fastening: for M3 screws
• Alternative fastening: with BJB P2F fastening element 28.905
• The variable length of the glass light guide rod allows for flexible installation heights within the appliance.
• Variable LED parameters (CCT, CRI, quantity)
• Protection class III due to operation with SELV voltage
• The maximum permissible current draw of the luminaire must be determined under the most unfavorable operating condition.
• The user is responsible for selecting suitable products and ensuring proper technical installation in accordance with the relevant standards (e.g., IEC 62031 and IEC 60335).
• Custom versions for higher requirements—such as vapor-tight designs, microwave shielding, or suitability for pyrolysis—are available on request.
| Application areas: | Home + Professional |
|---|---|
| Ausführung: | Dimmable with suitable control gear |
| Colour temperature: | 3500 K |
| Durability: | Average life time (L70 / B50) = 6.000 h (according to BJB test requirements) |
| Lamp: | LED |
| Luminous flux Ta25° C If typical: | 270 lm |
| Max. Temperature at Tc point: | 110° C |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 1000 mA |
| Operating mode: | Constant current |
| Output: | 3 W |
| Packaging quantity: | 48 |
| Producttype: | LED Oven Lamp |
| Series: | LED |
| Weight: | 38 g |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.131.1001-0 | ENEC_Zeichen-ENEC_Approval5772810 |
