LED oven lamp Spot
-
-
0,5 - 1,0
-

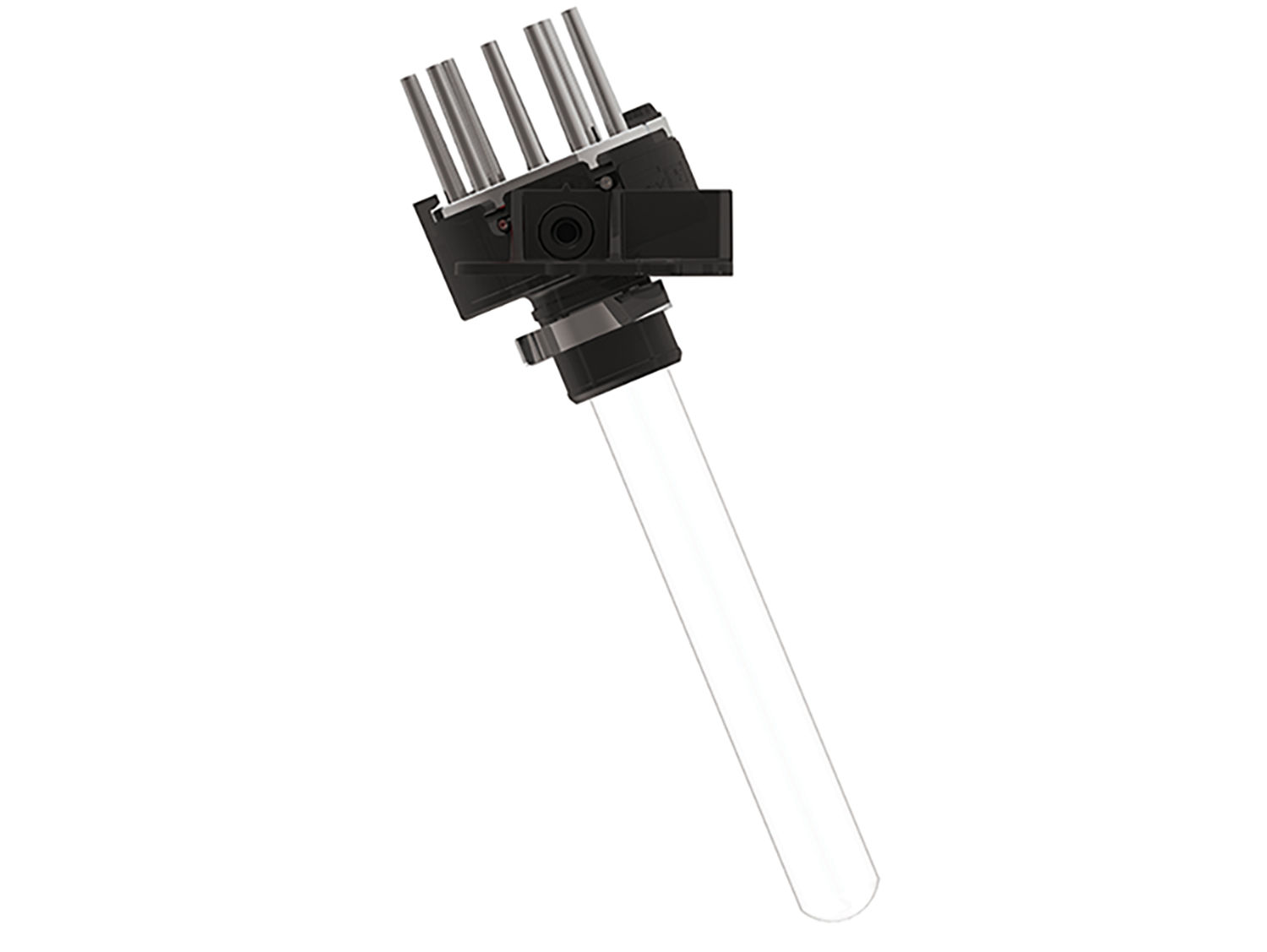

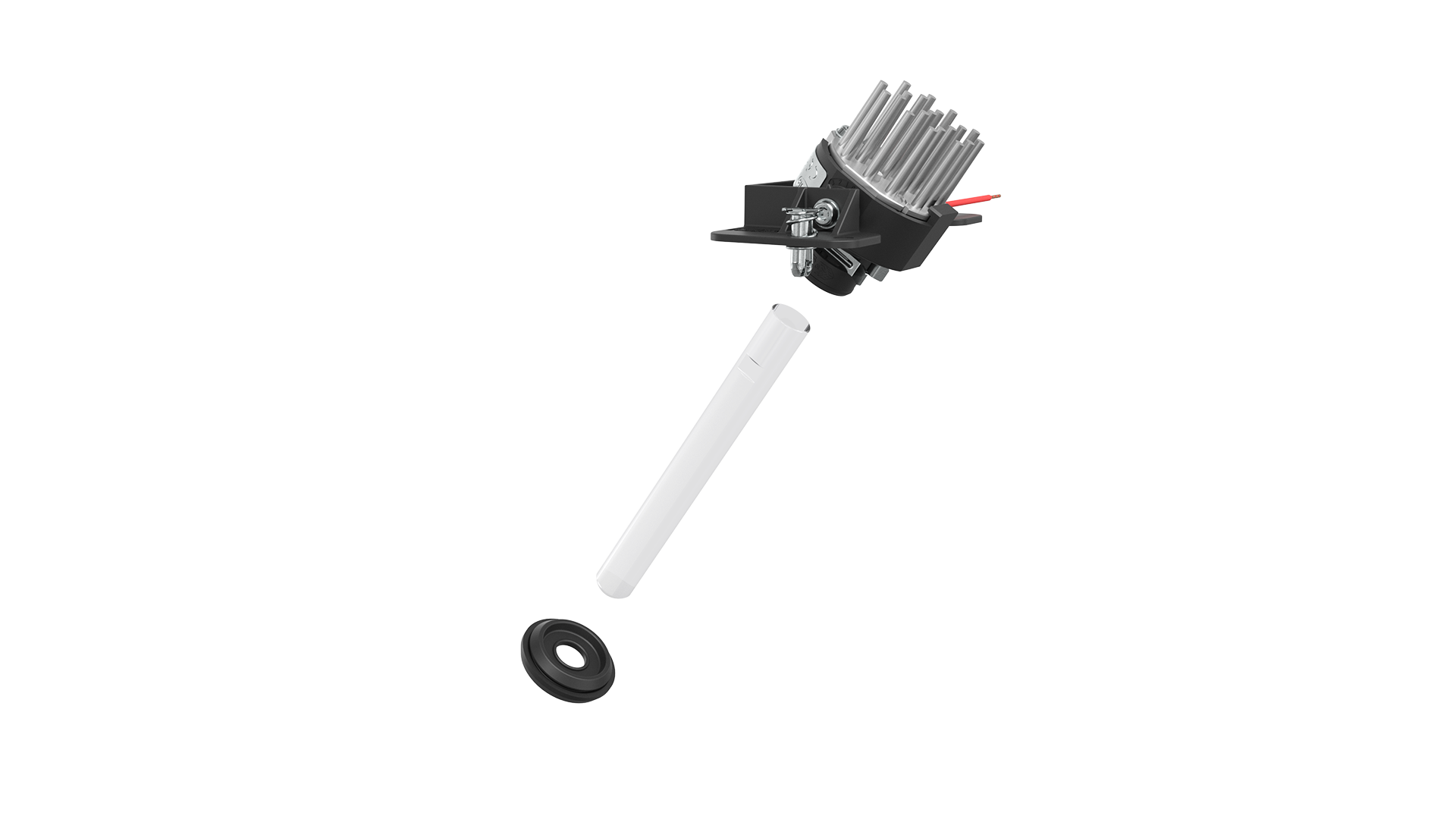

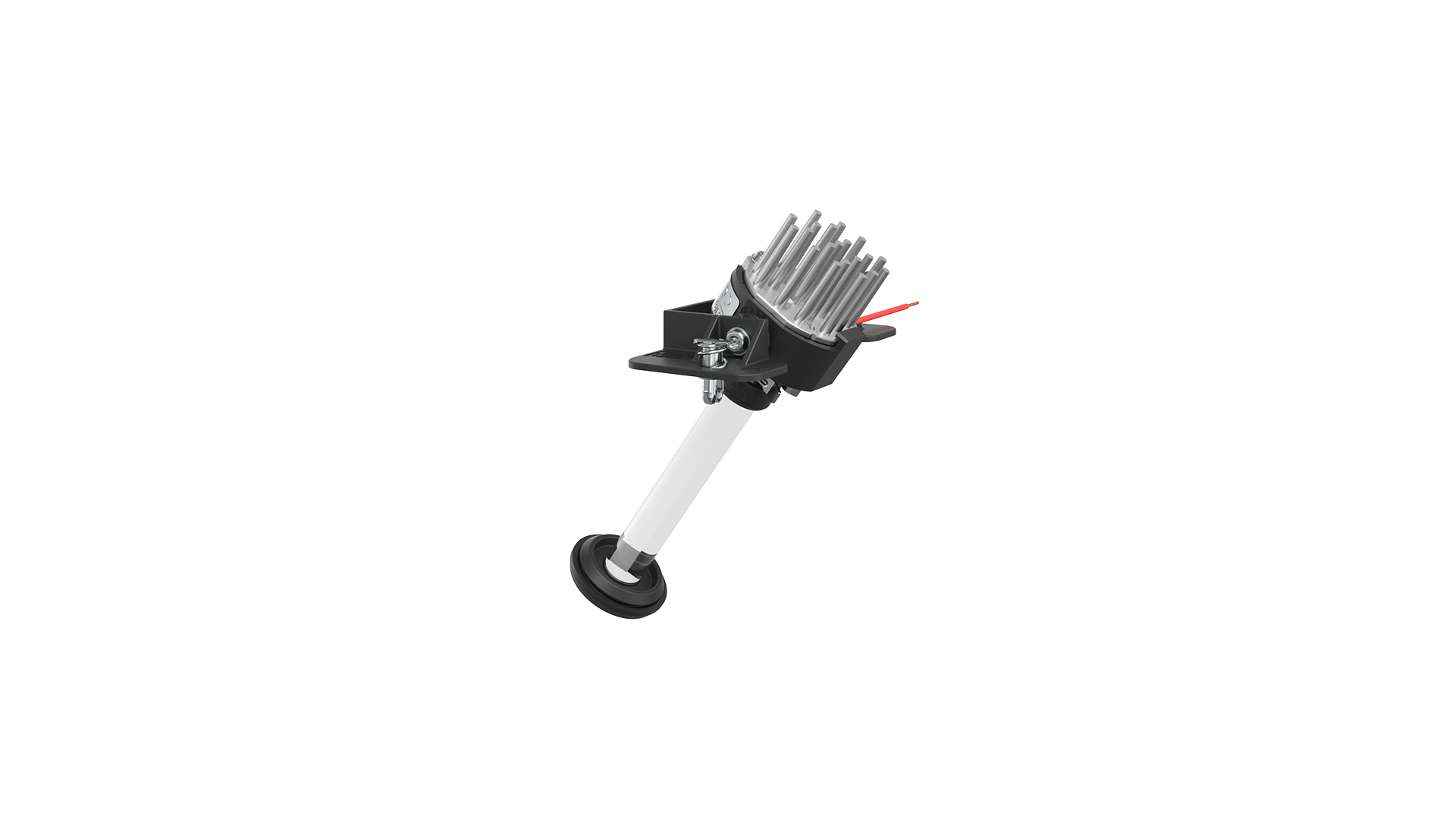

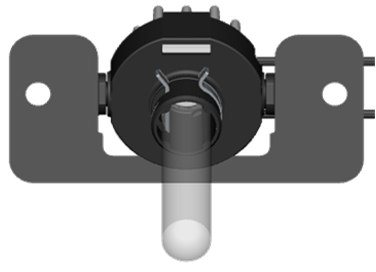

Tiltable LED oven lamp with light conducting glass rod

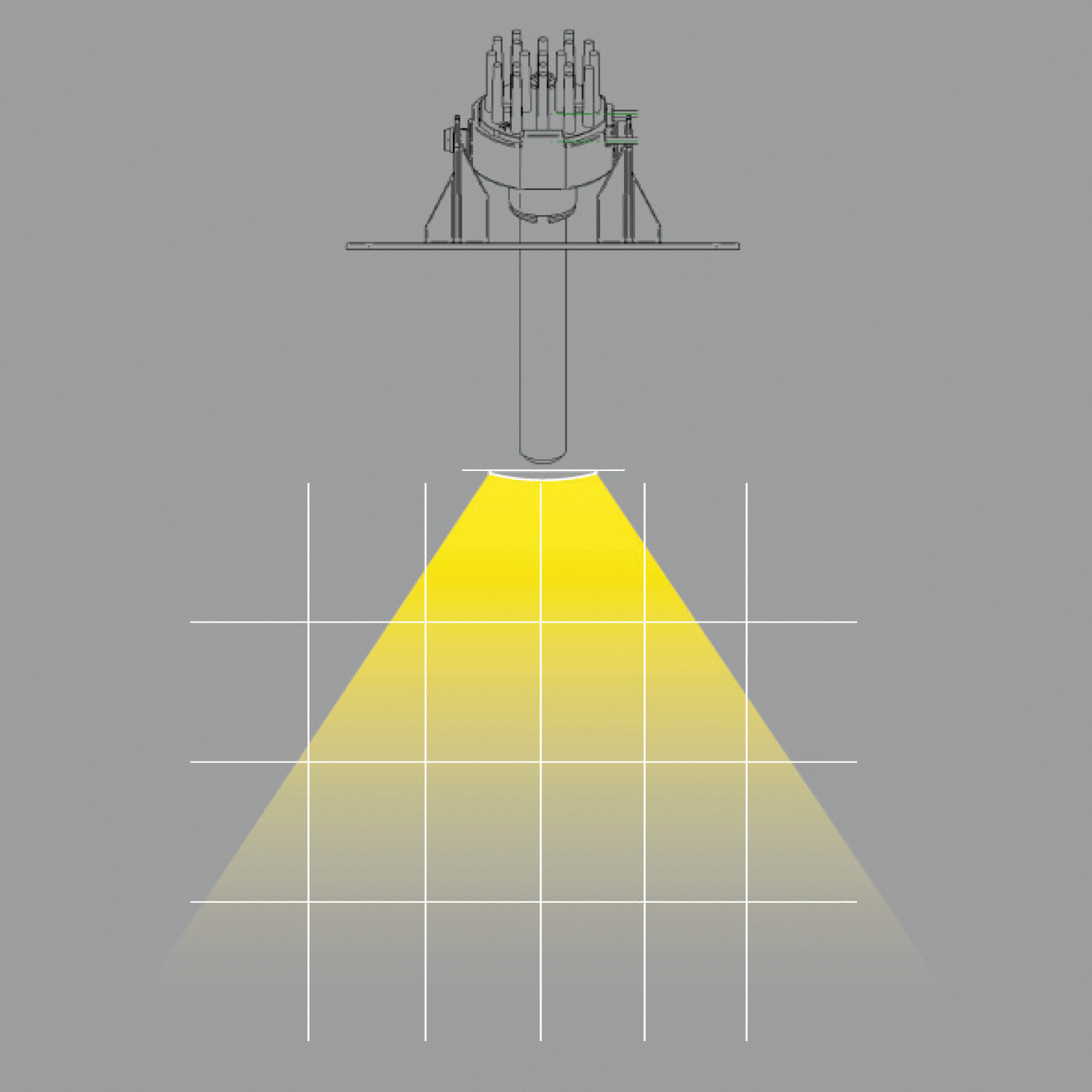

Symmetrical light characteristic

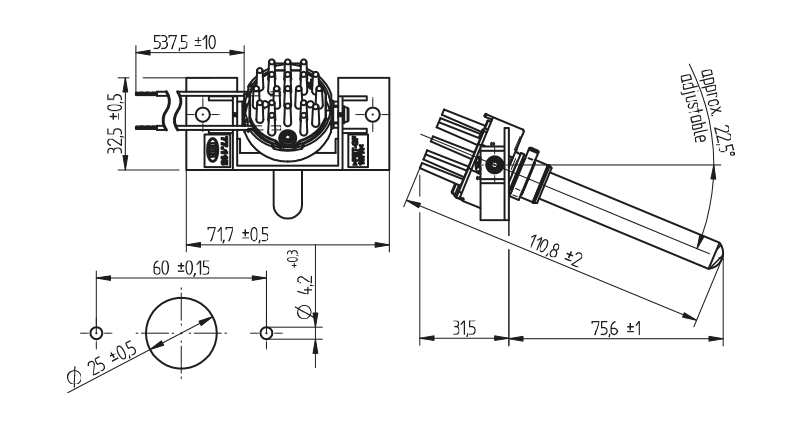

Screw fixing: for M3 screws

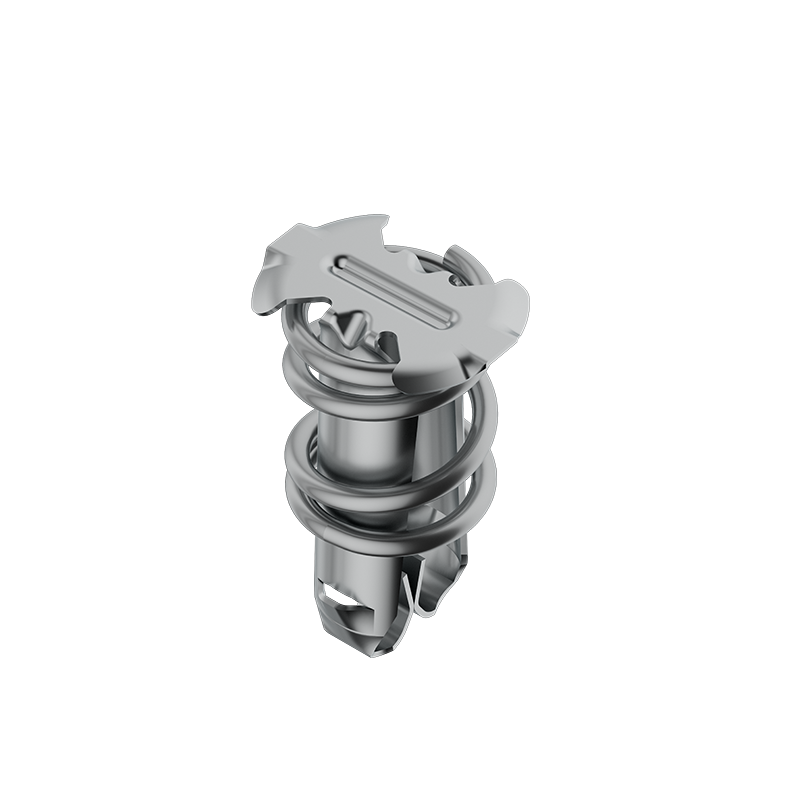

alternatively: push in fixing by using the P2F fixing element 28.905

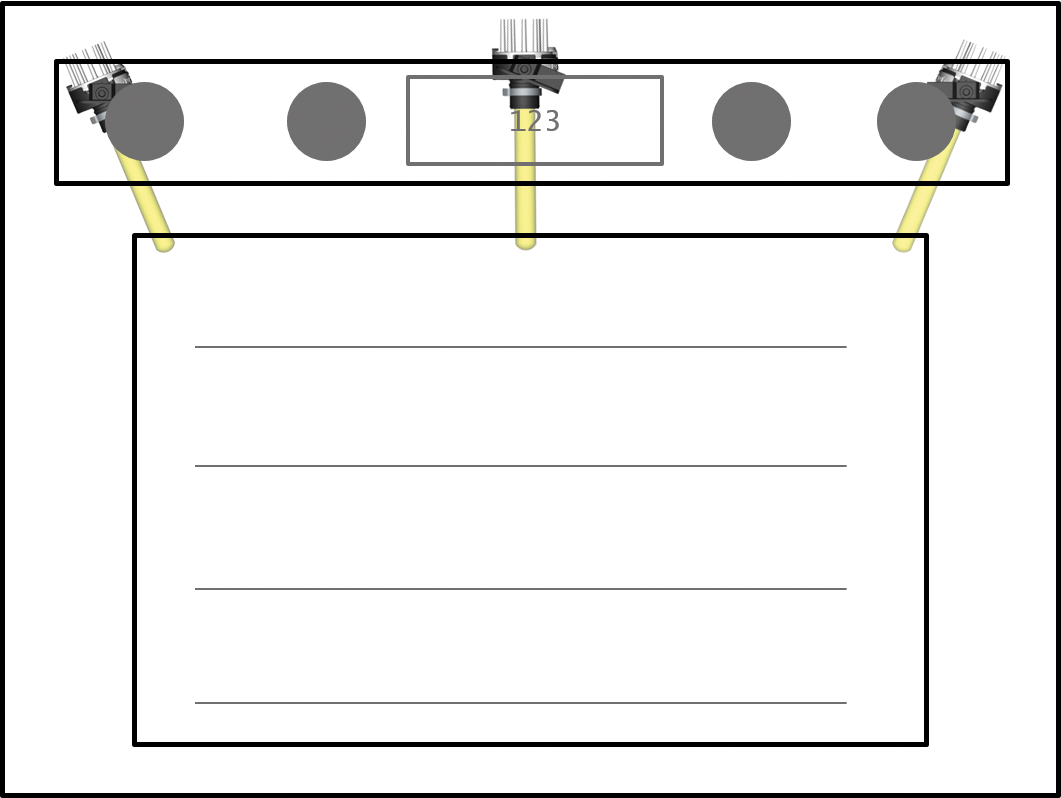

• Due to the variable length of the light conducting glass rod, different installation heights in the oven are possible.
• Variable LED parameters (CCT, CRI, number)
• Protection class III due to operation on SELV voltage
• Max. possible current of the lamp is to be determined in the most unfavorable operating condition
• The choice of our products, as well as the technically correct installation according to the relevant regulations (e.g. IEC 62031 and IEC60335) , are the sole responsibility of the user.
Special versions with higher requirements such as steam tightness, with microwave shielding or pyrolysis suitability on request.
| Application areas: | Home + Professional |
|---|---|
| Ausführung: | Dimmable with suitable control gear |
| Colour temperature: | 3.500 K |
| Durability: | Average life time (L70 / B50) = 5.000 h (according to BJB test requirements) |
| LED?: | yes |
| Lamp: | LED |
| Luminous flux Ta25° C If typical: | 190 lm |
| Material: | Heat sink: Aluminium, anodized; Housing: PET; Glass light guide rod: Borosilicate glass |
| Max. Temperature at Tc point: | 110° C |
| Note on electrical and optical tolerances: | Tolerances of optical and electrical data: ±10 %. |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 1.000 mA |
| Operating mode: | Constant current |
| Other: | Output: 3.0 W - Luminous flux @Ta25° C @ If typical: 190 lm |
| Output: | 3.0 W |
| Packaging quantity: | 54 |
| Producttype: | LED Oven Lamp |
| Series: | LED |
| Suitable for: | Combined ovens - Microwaves - Pyro - Steam |
| number of LEDs per module: | 1 |
| old article number: | 77.115.2001.00 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.115.2001-0 | ENEC_Zeichen-ENEC_Approval5772810 |
-
-
0,5 - 1,0
-

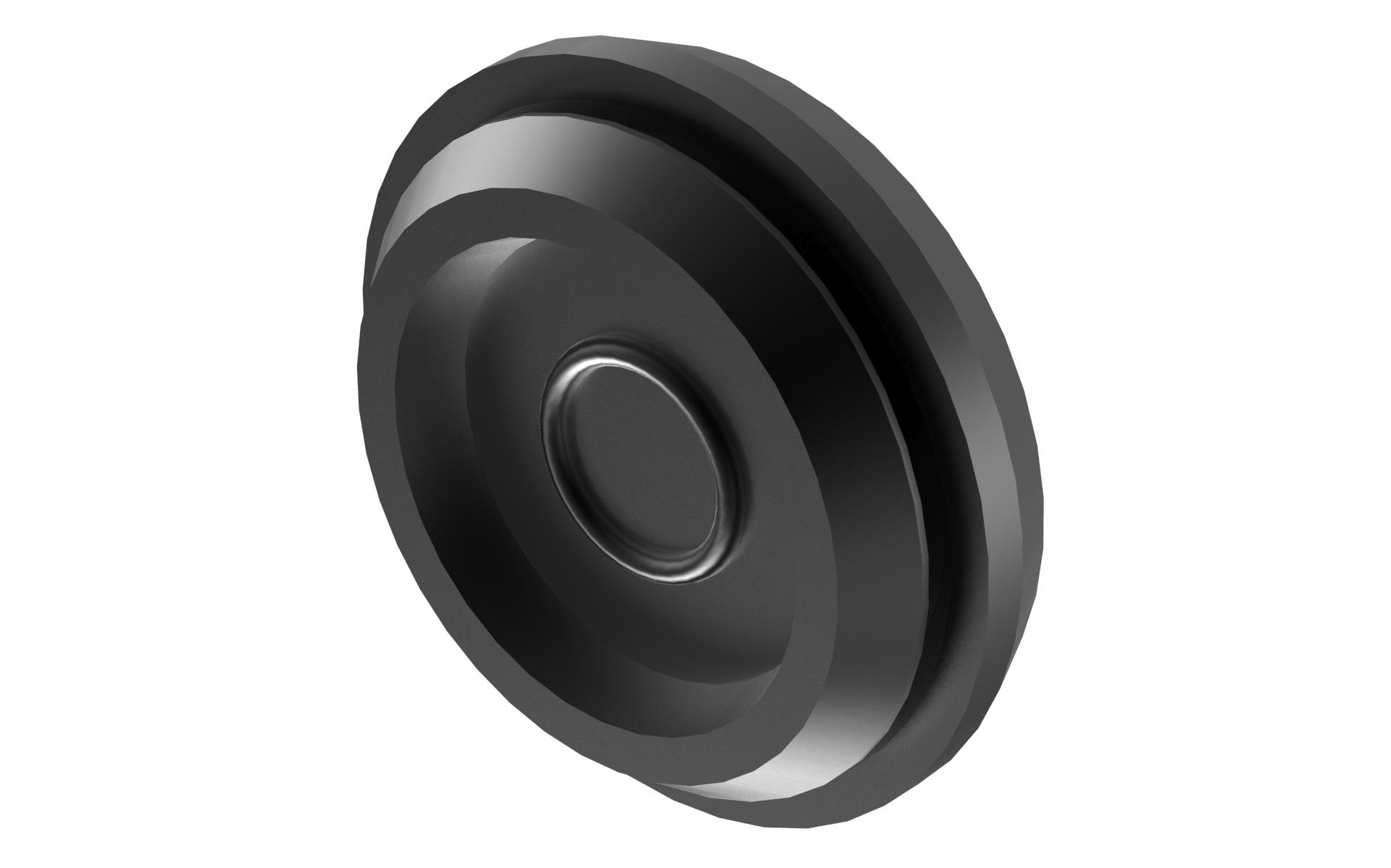

Accessories
