LED oven lamp Round ø 35,5
Article number:
77.110.1001-0
EAN:
-
-
-
-
-
1.0 - 2.0 mm
Product information "LED oven lamp Round ø 35,5"

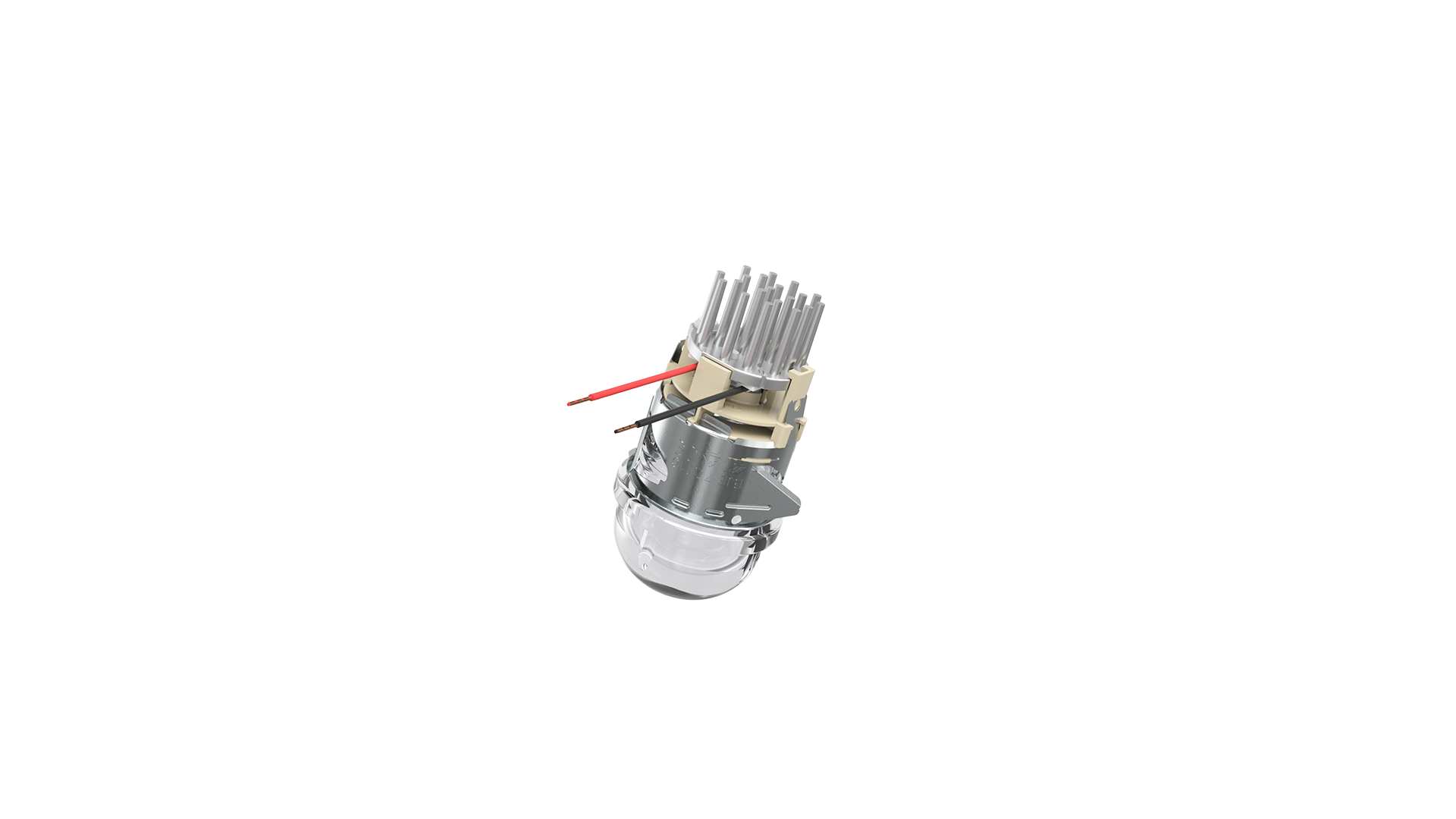

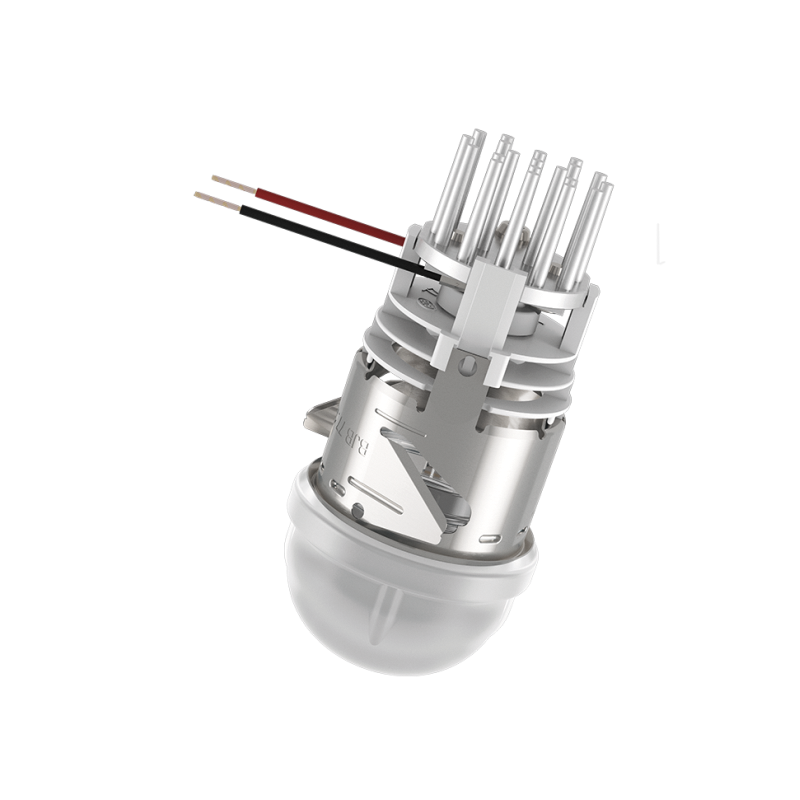

LED oven lamp
with thermal management by AIRPASS technology
Push in fixing into standard cutouts ø 35.5 mm Material thickness: 0.6 - 2.5 mm
• Variable LED parameters (CCT, CRI, number)
• Protection class III due to operation on SELV voltage
• Max. possible current of the lamp is to be determined in the most unfavorable operating condition
• The choice of our products, as well as the technically correct installation according to the relevant regulations (e.g. IEC 62031 and IEC60335) , are the sole responsibility of the user.
Special versions with higher requirements such as steam tightness, with microwave shielding or pyrolysis suitability on request.
| Application areas: | Home |
|---|---|
| Ausführung: | Dimmable with suitable control gear |
| Colour temperature: | 3500 K |
| Durability: | Average life time (L70 / B50)= 5000 h (according to BJB test requirements) |
| Energy efficiency class (A-G) : | E |
| LED?: | yes |
| Lamp: | LED |
| Lens: | round |
| Lens diameter: | 41 mm |

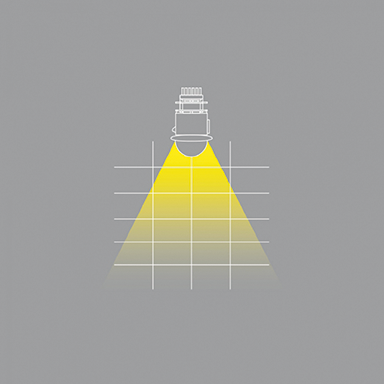

| Luminous flux Ta25° C If typical: | 190 lm |

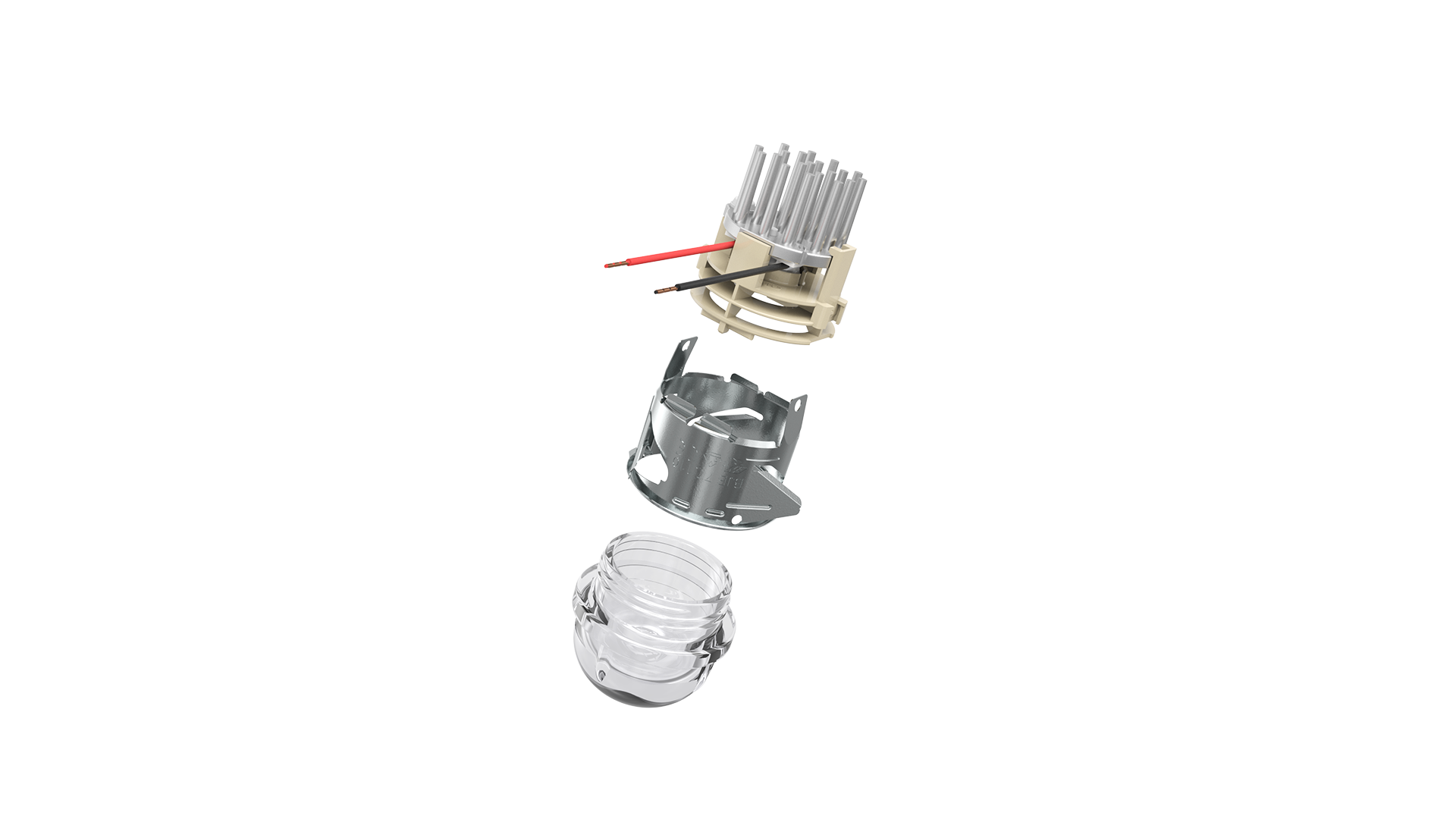

| Material: | Protective glass with screw thread: Soda-lime glass - Sleeve: CrNi - Housing: PET - Heat sink: Aluminium |
| Max. Temperature at Tc point: | 110° C |

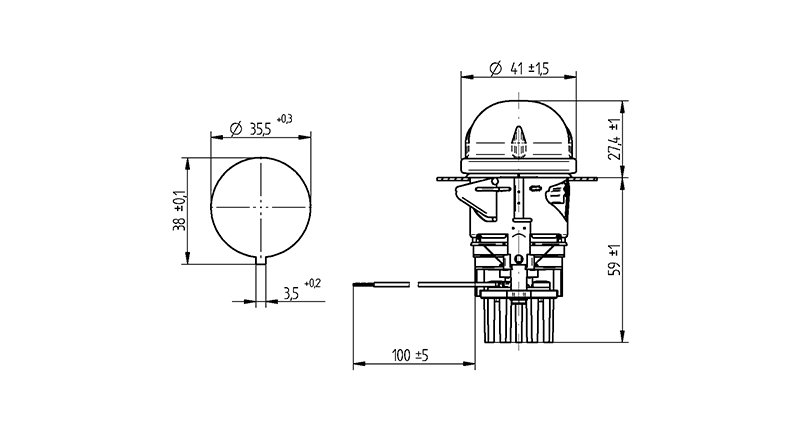

| Mounting cutout: | 35.5 mm |
| Note on electrical and optical tolerances: | Tolerances of optical and electrical data: ±10 %. |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 1000 mA |
| Operating mode: | Constant current |
| Operating voltage: | 3V |
| Other: | Output: 3.0 W - Luminous flux @Ta25° C @ If typical: 190 lm |
| Output: | 3.0 W |
| Packaging quantity: | 42 |
| Producttype: | LED Oven Lamp |
| Series: | LED |
| Suitable for: | Standard oven |
| UL: | yes |
| Weight: | 58 g |
| Wire length: | 100 mm |
| Wires: | black: PVC 0.35 mm², 100 mm - red: PVC 0.35 mm², 100 mm |
| mounting method: | Series connection (max. 60 V DC SELV) (EN 62031:1008 + A1:2013 + A2:2015) |
| number of LEDs per module: | 1 |
| old article number: | 77.110.1001.10 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.110.1001-0 | cURus_(USA_and_Kanada)--4838719 | ||
| 77.110.1001-0 | ENEC_Zeichen_--ENEC_Approval_-5772810 |
-
-
-
-
