LED oven lamp MultiLevel

Product information "LED oven lamp MultiLevel"

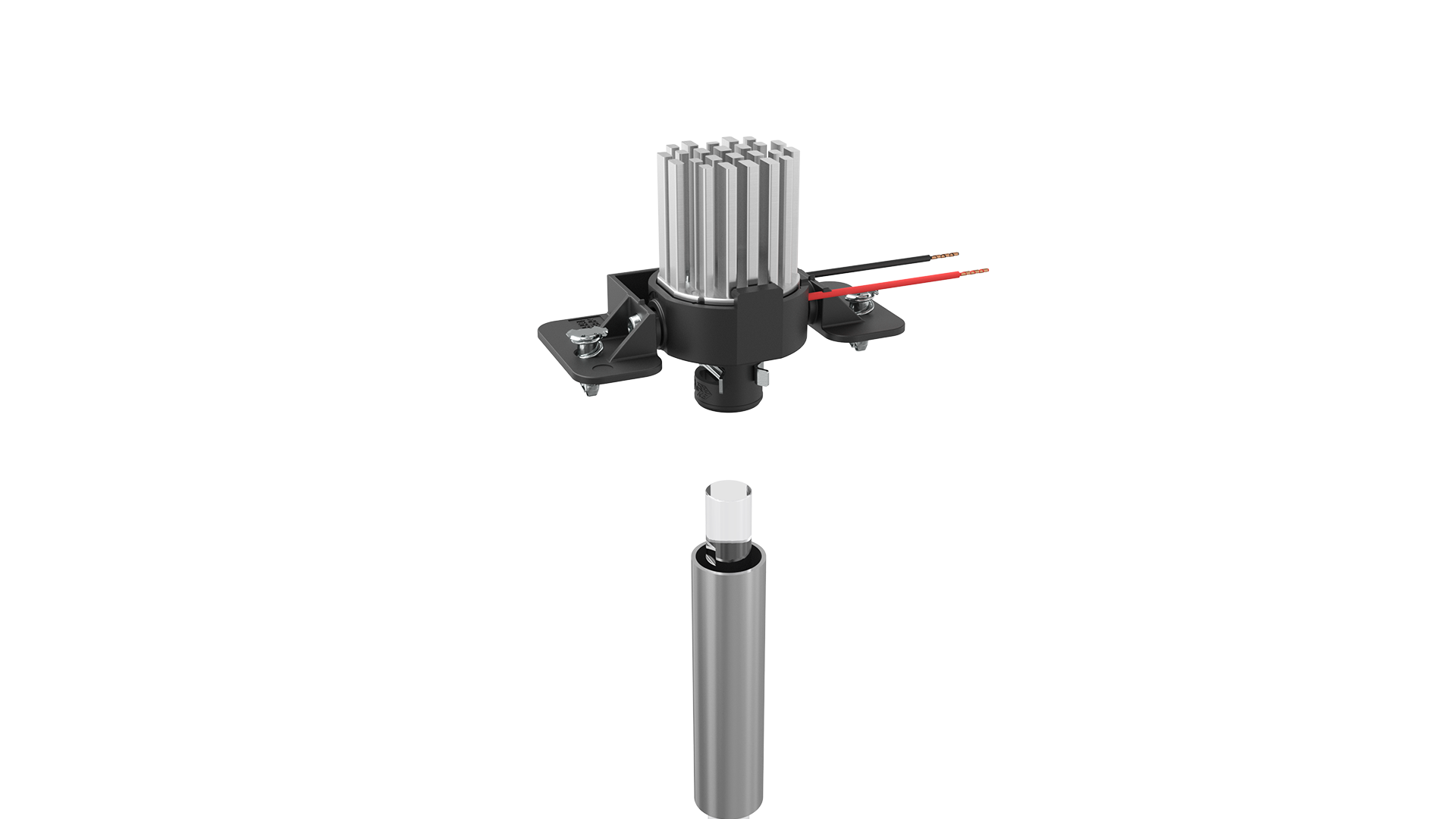

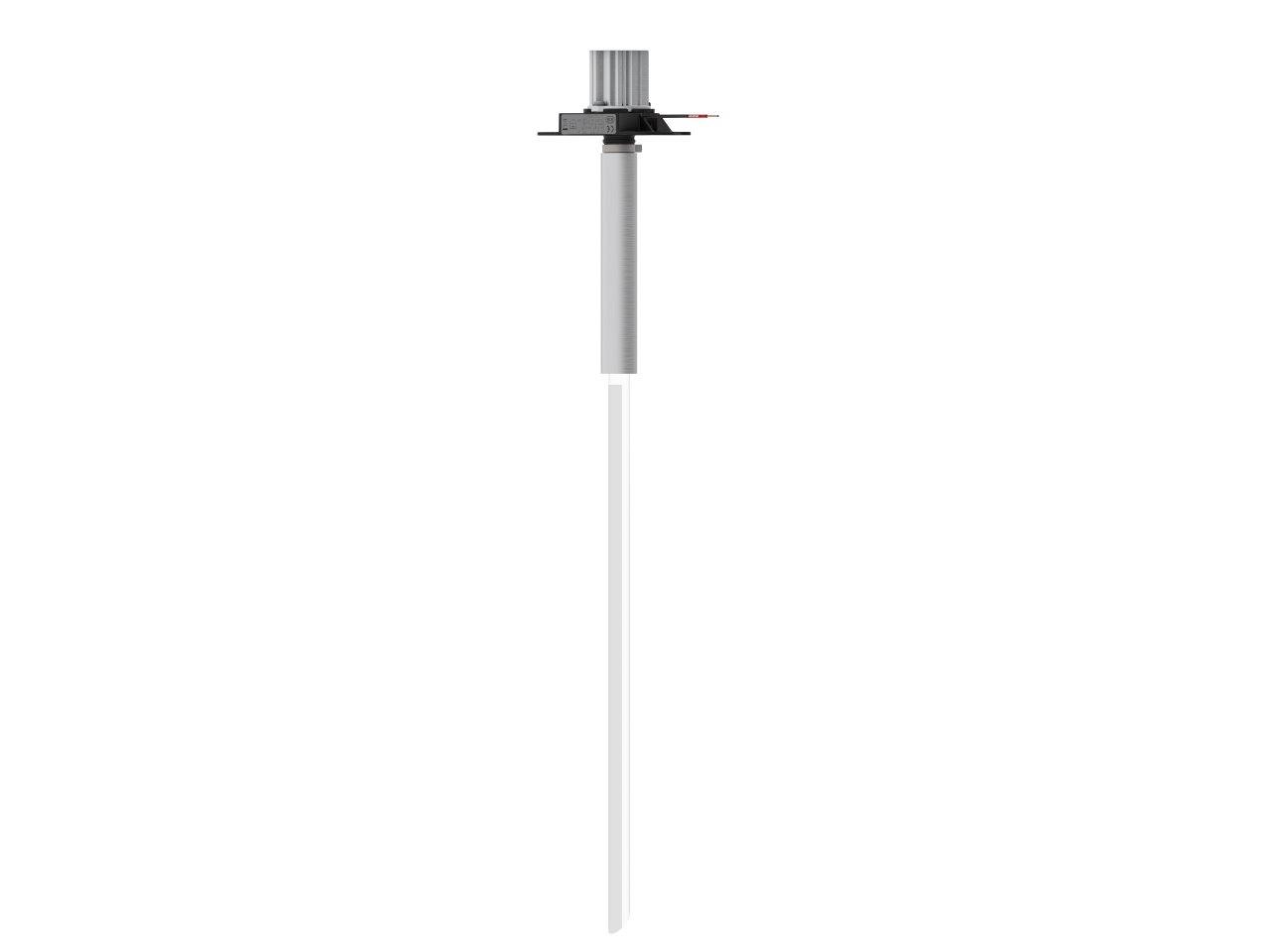

LED oven lamp with light conducting glass rod, partially satinized surface

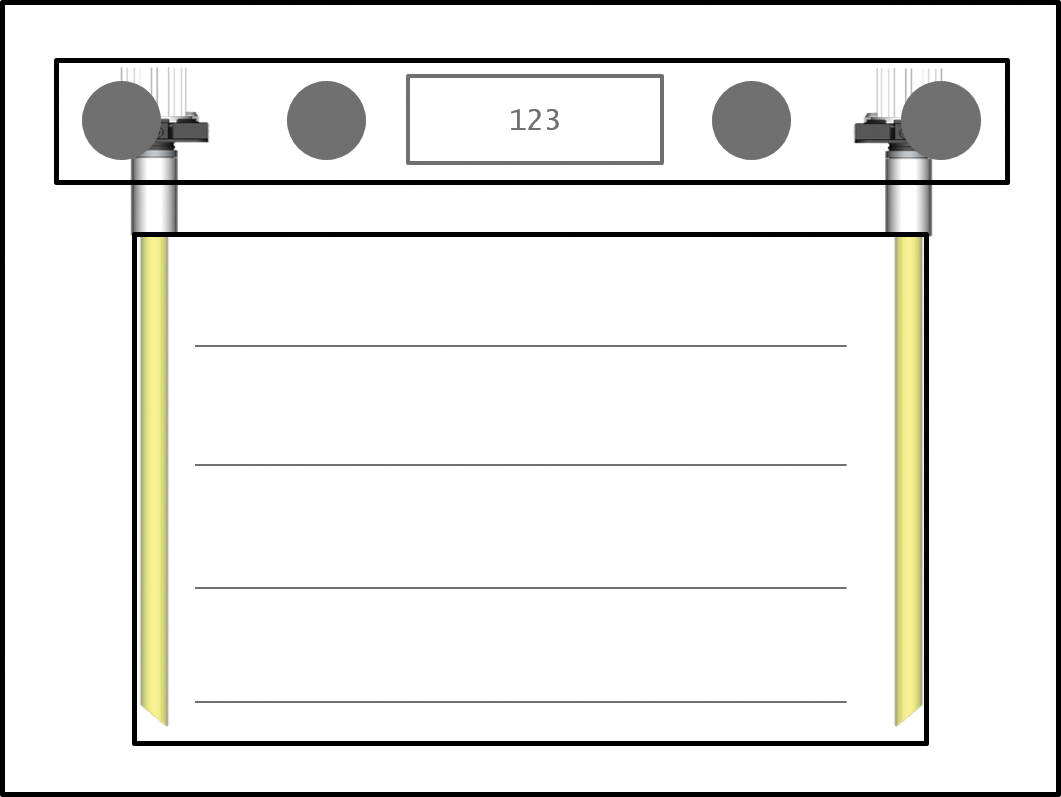

• Side installation in the oven

Symmetrical light characteristic

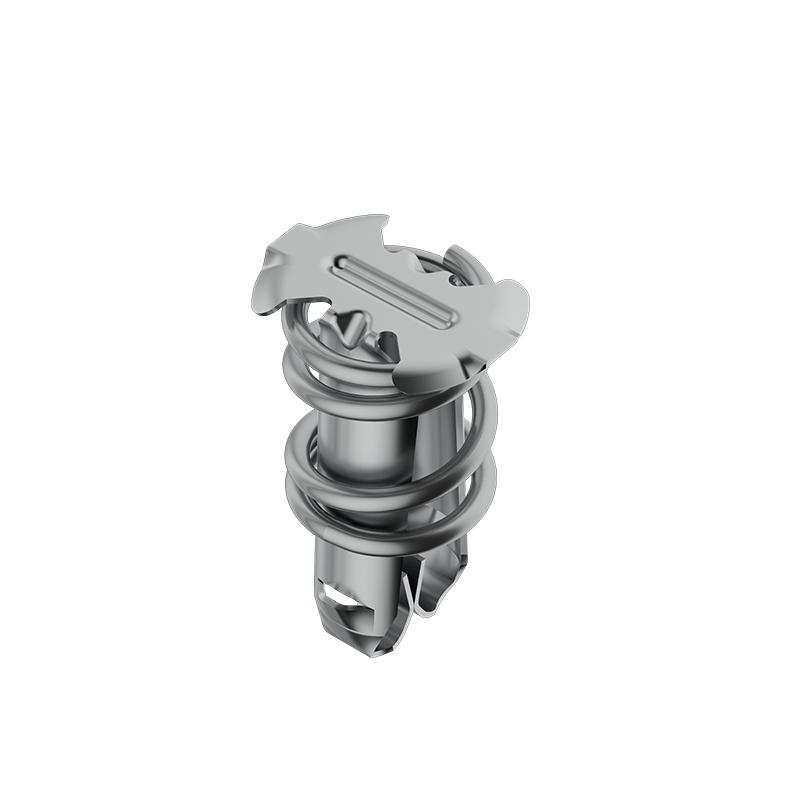

Screw fixing: for M3 screws alternatively: push in fixing by using the P2F fixing element 28.905

• Due to the variable length of the light conducting glass rod, different installation heights in the oven are possible.

• Variable LED parameters (CCT, CRI, number)
• Protection class III due to operation on SELV voltage
• Max. possible current of the lamp is to be determined in the most unfavorable operating condition
• The choice of our products, as well as the technically correct installation according to the relevant regulations (e.g. IEC 62031 and IEC60335) , are the sole responsibility of the user.

Special versions with higher requirements such as steam tightness, with microwave shielding or pyrolysis suitability on request.

Application areas: Home + Professional
Ausführung: Dimmable with suitable ballast
Colour temperature: 3.500 K
Durability: Average life time (L70 / B50) = 5.000 h (according to BJB test requirements)
Energy efficiency class (A-G) : E
LED?: yes
Lamp: LED
Luminous flux Ta25° C If typical: 430 lm
Material: Heat sink and Protective tube: Aluminum, anodized; Housing: PET; Glass light guide rod: Borosilicate glass
Max. Temperature at Tc point: 110° C
Note on electrical and optical tolerances: Tolerances of optical and electrical data: ±10 %.
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating current: 1.000 mA
Operating mode: Constant current
Other: Output: 6.0 W - Luminous flux @Ta25° C @ If typical: 430 lm
Output: 6.0 W
Packaging quantity: 1
Producttype: LED Oven Lamp
Series: LED
Suitable for: Combined ovens - Microwaves - Pyro - Steam
number of LEDs per module: 2
old article number: 77.115.8100.00
