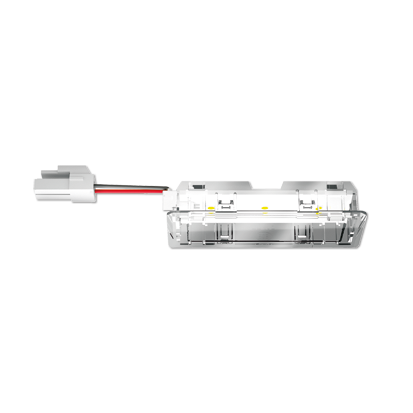

LED appliance lamp Square 63.5 x 25.6

Product information "LED appliance lamp Square 63.5 x 25.6"
Suitable as halogen replacement
Good illumination of the work surface
No glaring due to low light density
Cut-out optionally with coding for correct installation
Variable LED parameters (light color, type, power)
Connection and wires on request Protection class III by operating with SELV voltage
IP20
Max. temperature of cooker hood (bottom side): 100°C
The choise of our products, as well as the technical correct installation in accordance with the relevant regulations (for example IEC 60598 / VDE 0711, IEC 60335 / VDE700) is the sole responsible of the user
Application areas: Home
Colour temperature: 3000 K
Durability: 50.000 h
Forward current (lf): 125 mA
LED?: yes
Lamp: LED 15 W
Material: PC
Max. Temperature at Tc point: max. 100° C

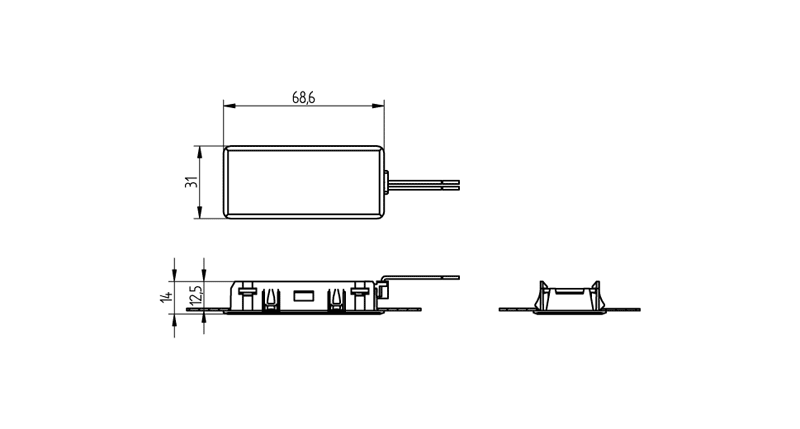

Mounting cutout: 63.5 x 25.6 mm
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Packaging quantity: 128
Power consumption (W) at Tc 50° C: 1.5 W
Producttype: LED Luminaire for cooker hoods and refridgerators
Protection class: Class III due to operation with SELV power source
ROHS REACH Information: This product contains the following REACH SVHC substances:Lead in electrical / electronic components on the PCB boardFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH
Series: AIR
Storage temperature: - 30°C bis + 45°C
Suitable for: cooker hoods and refridgerators
Typical forward voltage Uf (V) +- 7%: 12V CV
Weight: 12 g
Wire length: 100 mm
Wires: FEP, 0.35 mm2
directional characteristic: Symmetrical
mounting method 1: Snap-in mounting
number of LEDs per module: 3
old article number: 77.105.1003.89
