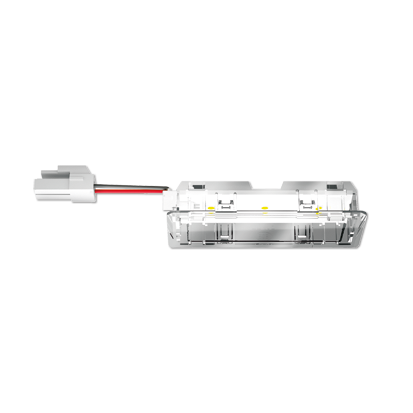

LED appliance lamp Square 63.5 x 25.6, symmetrical
Article number:
77.105.1002-1
EAN:
4049853
-
-
0,5 - 1,0
Product information "LED appliance lamp Square 63.5 x 25.6, symmetrical"
Suitable as halogen replacement
Good illumination of the work surface
No glaring due to low light density
Cut-out optionally with coding for correct installation
Variable LED parameters (light color, type, power)
Connection and wires on request
Protection class III by operating with SELV voltage
IP20
Max. temperature of cooker hood (bottom side): 100°C
The choise of our products, as well as the technical correct installation in accordance with the relevant regulations (for example IEC 60598 / VDE 0711, IEC 60335 / VDE700) is the sole responsible of the user
Good illumination of the work surface
No glaring due to low light density
Cut-out optionally with coding for correct installation
Variable LED parameters (light color, type, power)
Connection and wires on request
Protection class III by operating with SELV voltage
IP20
Max. temperature of cooker hood (bottom side): 100°C
The choise of our products, as well as the technical correct installation in accordance with the relevant regulations (for example IEC 60598 / VDE 0711, IEC 60335 / VDE700) is the sole responsible of the user
| Application areas: | Home |
|---|---|
| Colour temperature: | 3000 K |
| Durability: | 50.000 h |
| Forward current (lf): | 125 mA |
| LED?: | yes |
| Lamp: | LED, 1.5 W |
| Material: | PC |
| Max. Temperature at Tc point: | max. 100° C |

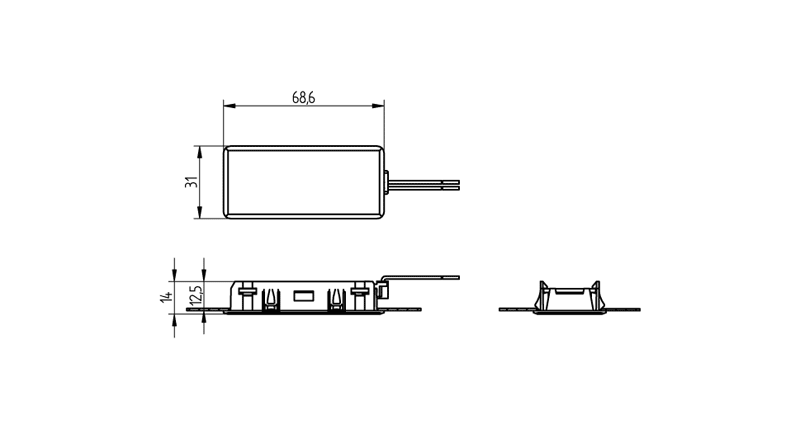

| Mounting cutout: | 63.5 x 25.6 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 128 |
| Power consumption (W) at Tc 50° C: | 1.5 W |
| Producttype: | LED Luminaire for cooker hoods |
| Protection class: | Class III due to operation with SELV power source |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in electrical / electronic components on the PCB boardFor more information, please refer to:https://www.bjb.com/en/help-service/information-rohs-reach/ |
| Series: | AIR |
| Storage temperature: | - 30°C bis + 45°C |
| Suitable for: | cooker hoods and refridgerators |
| Typical forward voltage Uf (V) +- 7%: | 12V CV |
| Weight: | 12 g |
| Wire length: | 100 mm |
| Wires: | FEP, 0.35 mm2 |
| directional characteristic: | Symmetrical |
| mounting method 1: | Snap-in mounting |
| number of LEDs per module: | 3 |
| old article number: | 77.105.1002.89 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.105.1002-1 | ENEC_Zeichen-ENEC_Approval5772810 |
-
-
