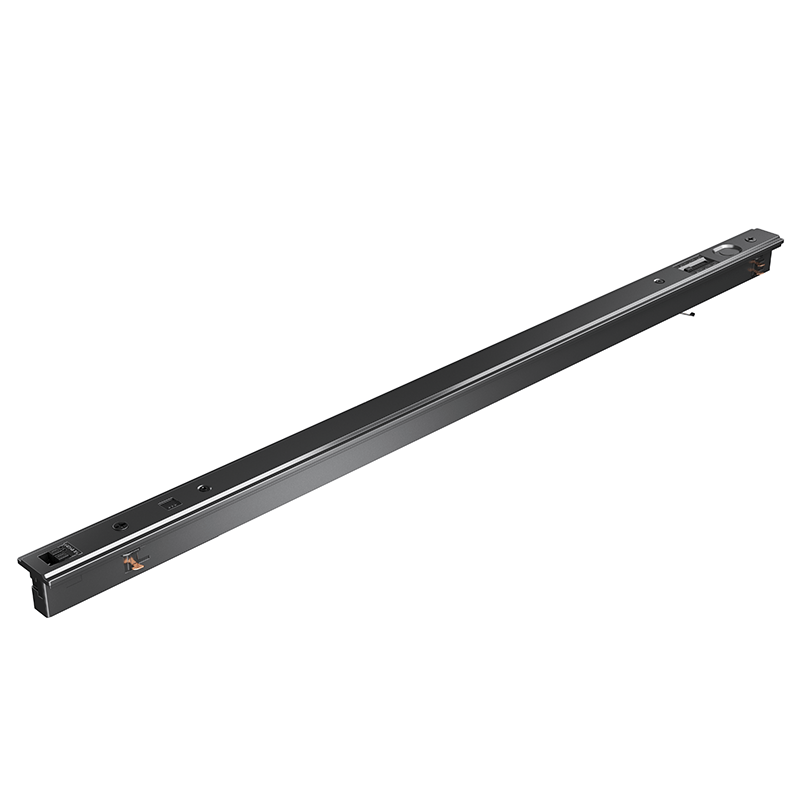

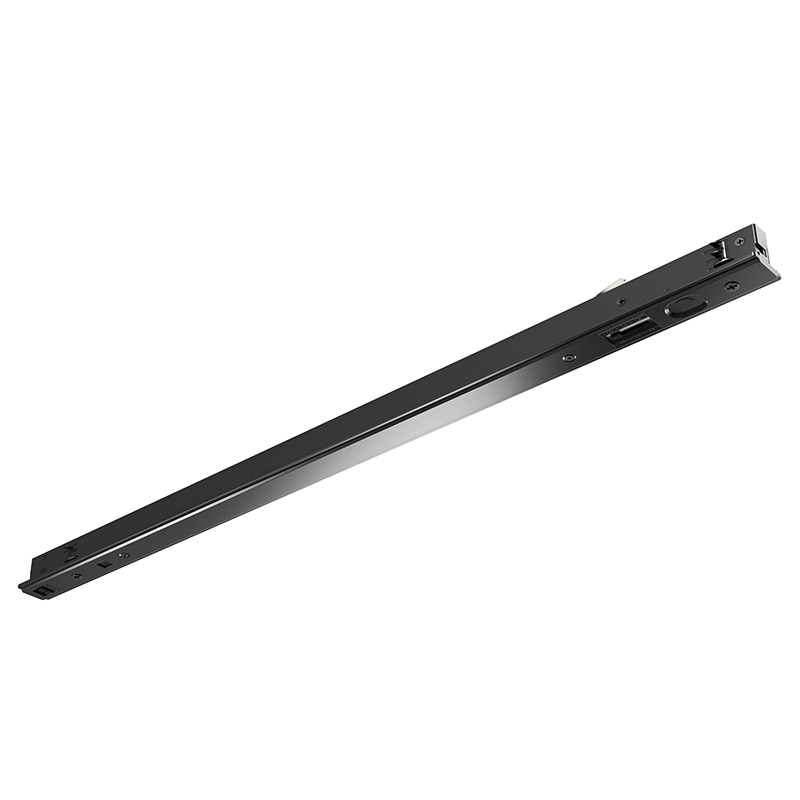

Inlineadapter GR6d-4 ON - OFF for 3 phase power tracks
Article number:
32.901.3004-1
EAN:
4049853
Product information "Inlineadapter GR6d-4 ON - OFF for 3 phase power tracks"
Inlineadapter ON - OFF
with lampholder GR6d-3 and integretad, electronic ballast for 3-phase power tracks according to EN 60570 in combination with linear GR6d LED modules.
With the light sources, the correct pairing of the contact material must be observed. We recommend silver points.
Available in white and black.
• Relative movements are to be avoided
For further technical data, please refer to the technical data sheet under menu item downloads.
| Ausführung: | not dimmable |
|---|---|
| Color: | black |
| Durability: | @Ta 25°C: >50.000 hrs |
| Key: | GR6d-4 |
| Length: | 672 mm |
| Material: | Housing: PC / Aluminium |
| Max. Temperature at Tc point: | 75° C |
| Note on electrical and optical tolerances: | +/- 10% |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating mode: | Constant current |
| Operating voltage: | AC 198 - 264 V |
| Other: | Safety: EN 61347-1, EN 61347-2-13 / EMV: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 / Performance: EN 62384 / GR6d lamp holder: EN 60061-1 |
| Packaging quantity: | 20 |
| Producttype: | Inlineadapter (ECG) Universal 3 Phase Track System |
| Protection class: | SK I |
| Rated output current: | 1.050 mA |
| Rated voltage: | 220 - 240 V |
| Series: | Inlineadapter (ECG) Universal 3 Phase Track System |
| Temperature rating: | Surroundings temperature from -20°C up to +40°C - Max. Tc-temperature 75° C |
| Weight: | 310 g |
| old article number: | 32.901.3004.80 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 32.901.3004-1 | ENEC_Zeichen-ENEC_Approval6906659 |
