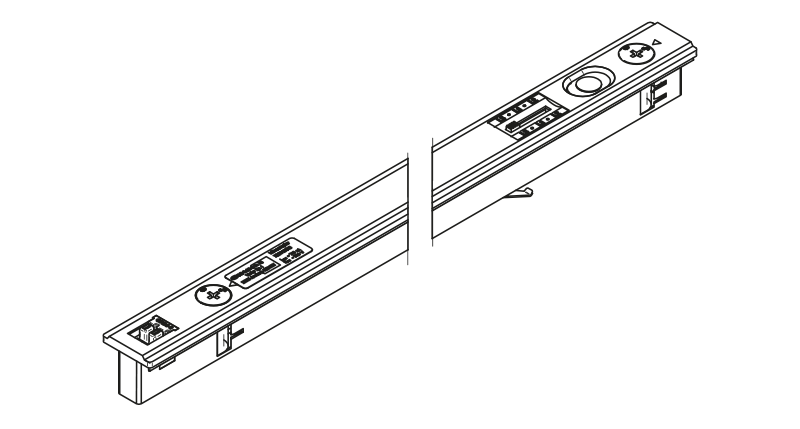

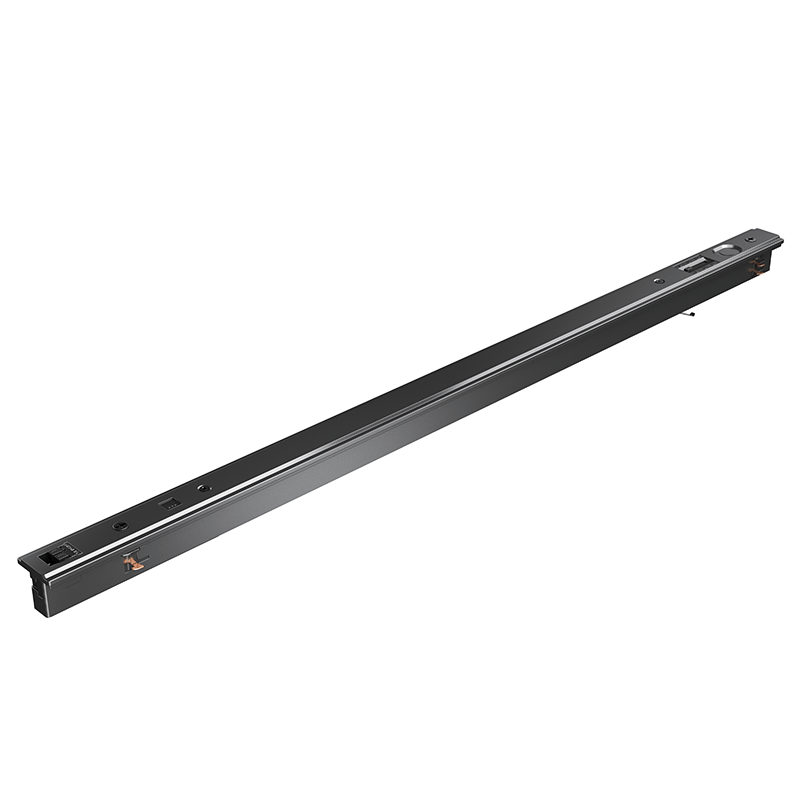

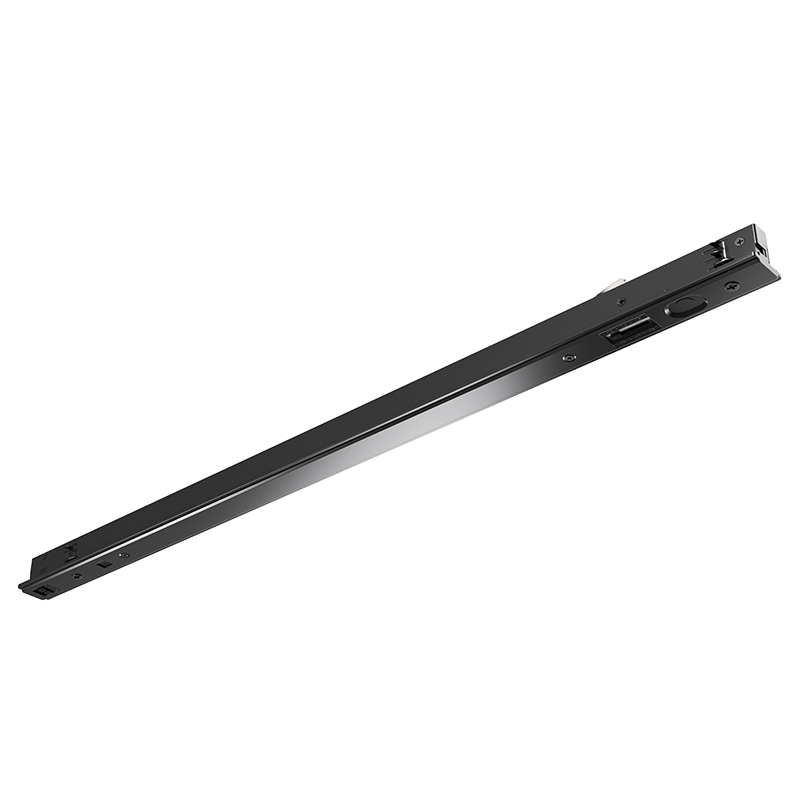

Inlineadapter GR6d-3 ON - OFF for 3 phase power tracks
Article number:
32.901.3003-1
EAN:
4049853
Product information "Inlineadapter GR6d-3 ON - OFF for 3 phase power tracks"
Inlineadapter ON - OFF

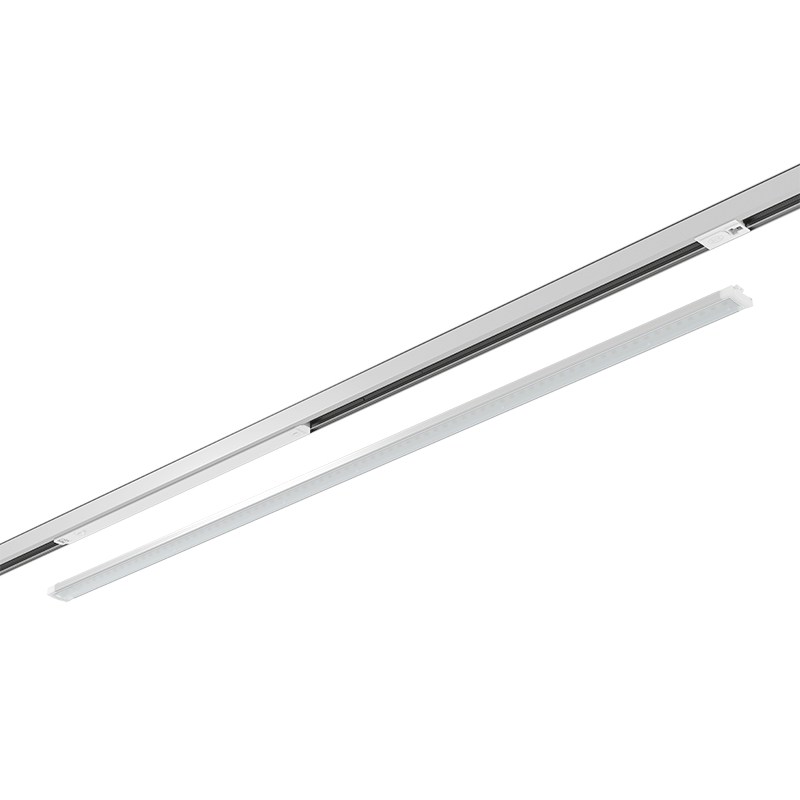

mit Lampenfassung GR6d-3 und integriertem, elektronischen Vorschaltgerät für 3-Phasen Stromschienen nach EN 60570 in Kombination mit linearen GR6d LED-Modulen
With the light sources, the correct pairing of the contact material must be observed. We recommend silver points.
Available in white and black.
• Relative movements are to be avoided
For further technical data, please refer to the technical data sheet under menu item downloads.
| Ausführung: | not dimmable |
|---|---|
| Color: | black |
| Durability: | @Ta 25°C: >50.000 hrs |
| Key: | GR6d-3 |

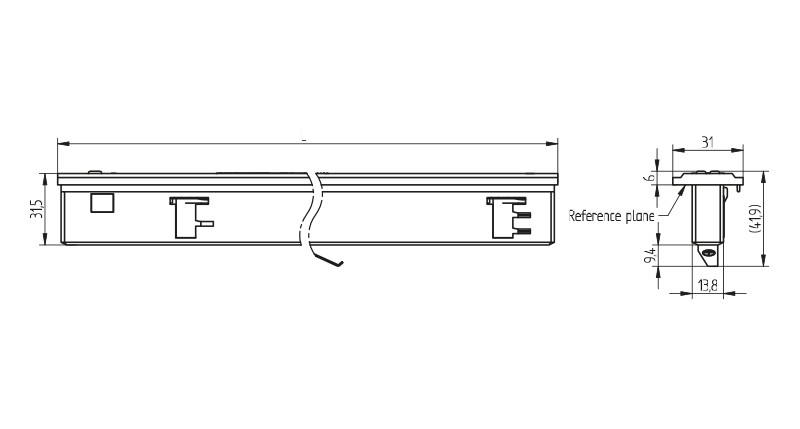

| Length: | 672 mm |
| Material: | Housing: PC / Aluminium |
| Max. Temperature at Tc point: | 75° C |
| Note on electrical and optical tolerances: | +/- 10% |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating mode: | Constant current |
| Operating voltage: | AC 198 - 264 V |
| Other: | Safety: EN 61347-1, EN 61347-2-13 / EMV: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 / Performance: EN 62384 / GR6d lamp holder: EN 60061-1 |
| Packaging quantity: | 20 |
| Producttype: | Inlineadapter (ECG) Universal 3 Phase Track System |
| Protection class: | SK I |
| Rated current: | 34 W |
| Rated output current: | 700 mA |
| Rated voltage: | 220 - 240 V |
| Series: | Inlineadapter (ECG) Universal 3 Phase Track System |
| Temperature rating: | Surroundings temperature from -20°C up to +40°C - Max. Tc-temperature 75° C |
| Weight: | 310 g |
| old article number: | 32.901.3003.80 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 32.901.3003-1 | ENEC_Zeichen-ENEC_Approval6906659 |
