G4 Oven lamp Round ø 35,5
Article number:
77.912.2105-0
EAN:
-
-
-
-
0,6 - 2,5 mm
-
G4, 20W, 12V
-
Product information "G4 Oven lamp Round ø 35,5"
Other cable versions on request
cURus on request
cURus on request
| Application areas: | Home |
|---|---|
| Ausführung: | Inserted lamp only for use in oven application |
| Lamp: | G4, 20W |

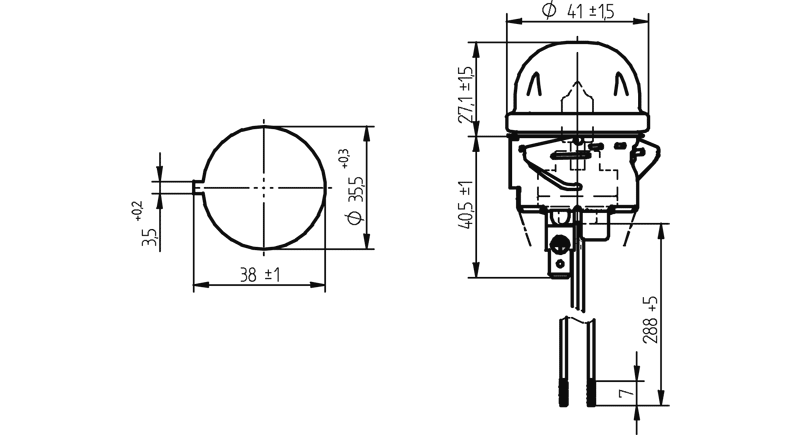

| Lens diameter: | 41 mm |
| Material: | Lens: soda-lime glass 350° CSleeve: CrNiLampholder: Steatite |
| Mounting cutout: | 35.5 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | For more information about RoHS/REACH, please refer to: https://www.bjb.com/en/help-service/information-rohs-reach/ |
| Packaging quantity: | 48 |
| Producttype: | G4 Standard Oven Luminaire |
| ROHS REACH Information: | Product contains REACH SVHC: Copper alloy containing up to 4% lead by weight |
| Series: | Standard |
| Suitable for: | Standard oven |
| Weight: | 57 g |
| Wires: | PTFE (max. 250° C), Lead length: 288 mm (11'') |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.912.2105.10 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.912.2105-0 | ENEC_Zeichen_--ENEC_Approval_-713392 | ||
| 77.912.2105-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-4805180 |
-
-
-
