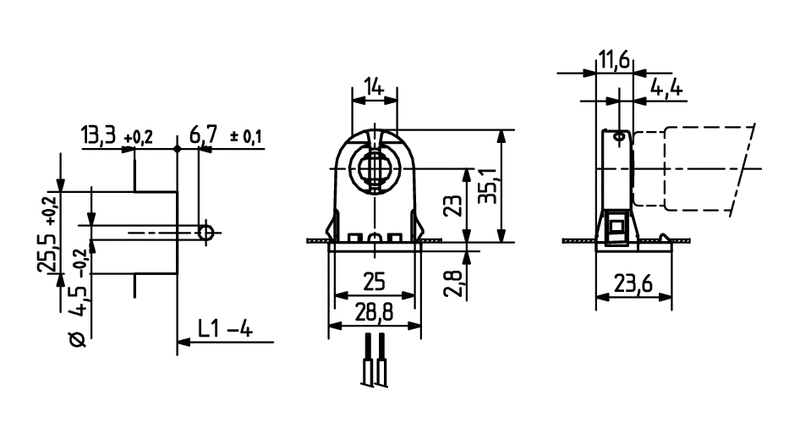

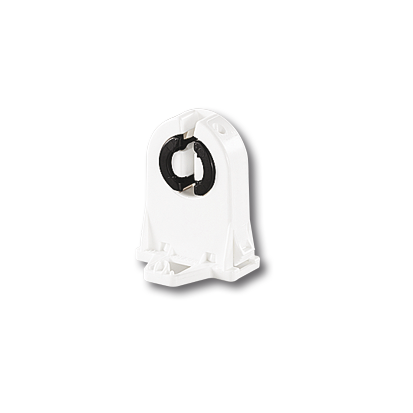

G13 Push through lampholders, Lamp center 23 mm, Cut out 13,3 x 25,5

Product information "G13 Push through lampholders, Lamp center 23 mm, Cut out 13,3 x 25,5"
For cut-outs open at the rear or enclosed cut-outs with 4.5 mm dia. locating hole
A pair of lampholders provides a lamp length tolerance compensation of 3 mm
Ausführung: G13 Push through lampholders
Color: white
Fluorescent lamps: G13
Front test: yes
Lamp axis height: 23
Luminaire wall thickness: 0.4 - 2.0
Material: Housing: PCRotor: PBT
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Packaging quantity: 500
Producttype: G13 Push-Through Lampholders
Retaining pins: yes
Rotor: with
Series: Linear Fluorescent Lampholders for dry rooms (IP20)
T-marking: 130
Top Test: yes
Weight: 6 g
approbation: cULus
cULus file no.: E-92235
mounting method 1: Snap fixing
old article number: 26.290.4011.50

Certifications

  • 0,4 - 2,0

  • 18 AWG0,5-1,0 mm²
