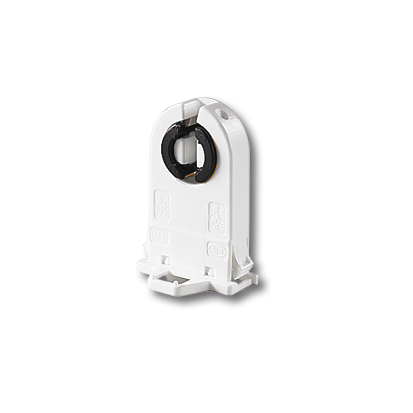

G13 Fluorescent Push-Through Lampholder
Article number:
26.293.6212-1
EAN:
4049853
-
0,4 - 2,0
-
-
-
-
-
-
-
18 AWG
-
Product information "G13 Fluorescent Push-Through Lampholder"

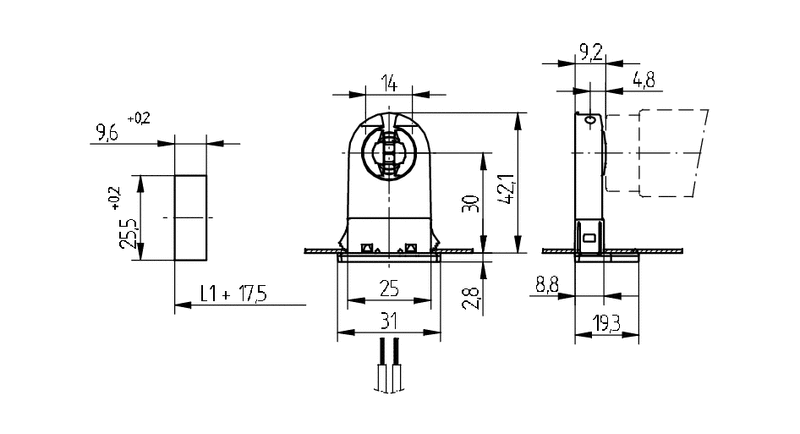

For enclosed cut-outs: 9.6 x 25.5 mm
A pair of lampholders provides a lamp length tolerance compensation of 3 mm
Instantstart version for USA and Canada: with integrated short circuiting bridge
A pair of lampholders provides a lamp length tolerance compensation of 3 mm
Instantstart version for USA and Canada: with integrated short circuiting bridge
| Ausführung: | G13 Push-Through Lampholder |
|---|---|
| Color: | white |
| Fluorescent lamps: | G13 |
| Front test: | yes |
| Lamp axis height: | 30 |
| Luminaire wall thickness: | 0.4 - 2.0 |
| Material: | Housing: PCRotor: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | G13 Push-Through Lampholders |
| Rotor: | with |
| Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
| T-marking: | 130 |
| Top Test: | yes |
| UL?: | yes |
| Weight: | 6 g |
| approbation: | cULus |
| cULus file no.: | E-92235 |
| mounting method 1: | Snap fixing |
| old article number: | 26.293.6212.51 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 26.293.6212-1 | Genehmigung_liegt_vor-Approval_at_hand3677956 | ||
| 26.293.6212-1 | PSE-Mark_(Japan)-PSE-Mark1203964 | ||
| 26.293.6212-1 | Genehmigung_liegt_vor-Approval_at_hand1263916 | ||
| 26.293.6212-1 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)727851 | ||
| 26.293.6212-1 | ENEC_Zeichen-ENEC_Approval5164211 |
-
