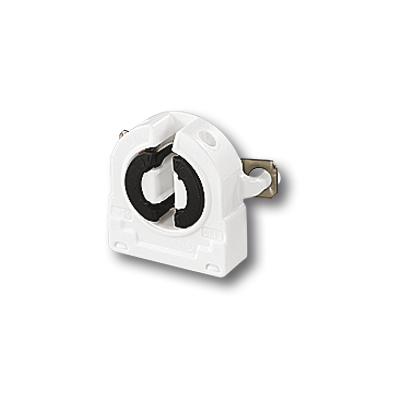

G13 Fluorescent End Mount Lampholders

Product information "G13 Fluorescent End Mount Lampholders"
One lampholder with leaf spring allows a lamp length tolerance compensation of 2 mm
Ausführung: G13 End Mount Lampholders
Color: white
Frame thickness: 9,2
Front test: yes
Luminaire wall thickness: 0.5 - 1.1
Material: Housing: PCRotor: PBT
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Packaging quantity: 500
Producttype: G13 End Mount Lampholders
Rotor: with
Series: Linear Fluorescent Lampholders for dry rooms (IP20)
Top Test: yes
UL?: yes
Weight: 5 g
Wiring: through the body
mounting method 1: Snap-in pins with spring
old article number: 26.422.4109.50

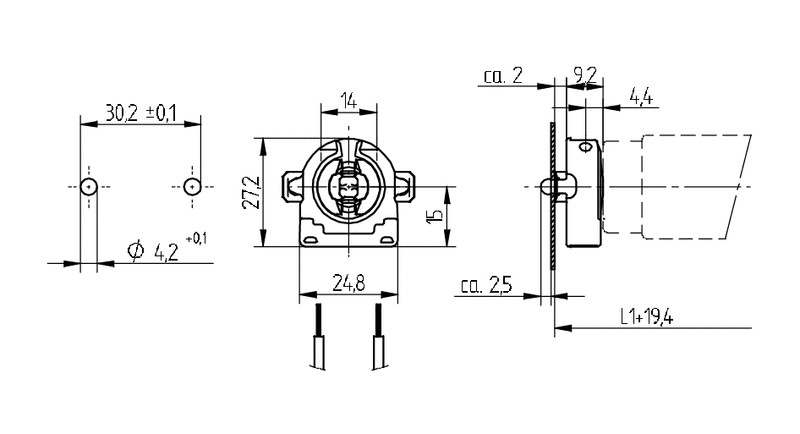

Available CAD Downloads

  • 0,5 - 1,1

  • 18 AWG0,5 -1,0 mm²
