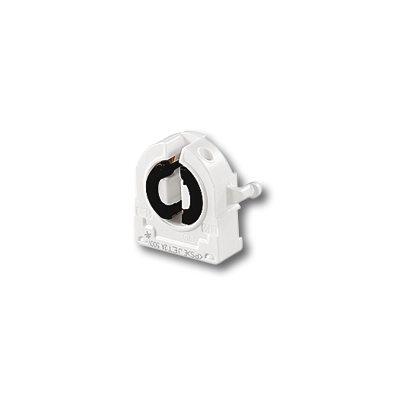

G13 Fluorescent End Mount Lampholders
Article number:
26.422.3010-0
EAN:
4049853
-
-
-
-
-
0,5 - 1,1
-
-
-
-
0,5 - 1,0 mm²
-
Product information "G13 Fluorescent End Mount Lampholders"
G13 Fluorescent End Mount Lampholders
| Ausführung: | G13 End Mount Lampholders |
|---|---|
| Color: | white |
| Fluorescent lamps: | G13 |
| Frame thickness: | 10,5 |
| Luminaire wall thickness: | 0.5 - 1.1 |
| Material: | Housing: PBTRotor: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 5000 |
| Producttype: | G13 End Mount Lampholders |
| Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
| T-marking: | 130 |
| Weight: | 6 g |
| Wiring: | through the body |
| approbation: | additionally PSE Jet (2A / 500V) |
| mounting method 1: | Push-in pins |
| old article number: | 26.422.3010.50 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 26.422.3010-0 | PSE-Mark_(Japan)-PSE-Mark1206225 | ||
| 26.422.3010-0 | Genehmigung_liegt_vor-Approval_at_hand3677956 | ||
| 26.422.3010-0 | Genehmigung_liegt_vor-Approval_at_hand2849931 | ||
| 26.422.3010-0 | ENEC_Zeichen-ENEC_Approval5164211 | ||
| 26.422.3010-0 | Genehmigung_liegt_vor-Approval_at_hand3463569 |
-
-
-
-
-
0,5 - 1,1
-
-
-
-
0,5 - 1,0 mm²
-
