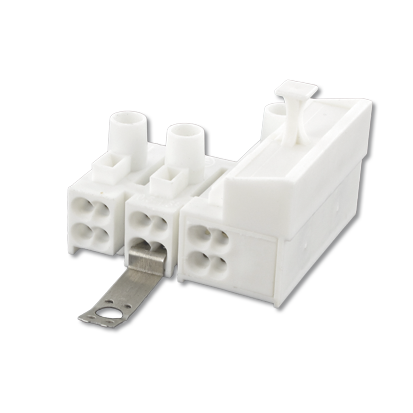

Fused terminal block 3 poles
Article number:
49.152.3003-0
EAN:
-
-
0,5 - 1,5 mm²
-
-
-
-
0,8 - 1,0
Product information "Fused terminal block 3 poles"
Nominal cross section: 1.5 mm²
Nominal current: 6.3 A to ambient temperature Tu = 50° C
Nominal current: 6.3 A to ambient temperature Tu = 50° C
| Ausführung: | Fused Terminal Block |
|---|---|
| Color: | white |
| Earth contact : | Earth bracket |
| Lettering: | N ⏚ L |
| Luminaire wall thickness: | 0.8 - 1.0 |
| Material: | Housing: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 500 |
| Producttype: | Fused Terminal Blocks |
| Series: | Connectors and fused terminal blocks |
| Weight: | 14 g |
| mounting method 1: | Snap fixing |
| old article number: | 49.152.3003.51 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 49.152.3003-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 | ||
| 49.152.3003-0 | Genehmigung_liegt_vor-Approval_at_hand1472096 |
-
0,5 - 1,5 mm²
-
-
-
-
0,8 - 1,0
