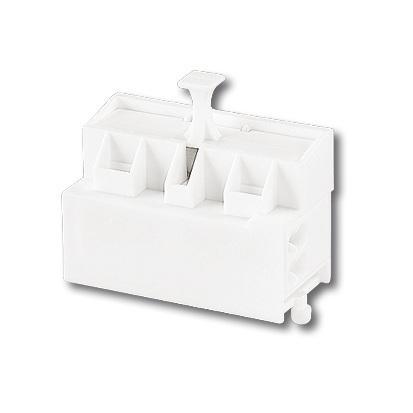

Fused terminal block 1 pole
Article number:
49.116.1000-0
EAN:
4049853
-
0,5 - 1,5 mm²
-
-
-
0,8 - 1,0
Product information "Fused terminal block 1 pole"
Nominal current: 6.3 A to ambient temperature Tu = 50° C
2 fuses (2A / 250V acc. EIC 60127-2 / 5, T / H) supplied.
Push wire terminal block - earth terminal 2-wire income only
2 fuses (2A / 250V acc. EIC 60127-2 / 5, T / H) supplied.
Push wire terminal block - earth terminal 2-wire income only
| Ausführung: | Fused Terminal Block |
|---|---|
| Color: | white |
| Luminaire wall thickness: | 0.8 - 1.0 |
| Material: | Housing: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 1 |
| Packaging quantity: | 500 |
| Producttype: | Fused Terminal Blocks |
| Series: | Connectors |
| Weight: | 14 g |
| mounting method 1: | Snap fixing |
| old article number: | 49.116.1000.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 49.116.1000-0 | Genehmigung_liegt_vor-Approval_at_hand719103 | ||
| 49.116.1000-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 |
-
0,5 - 1,5 mm²
-
-
-
0,8 - 1,0
