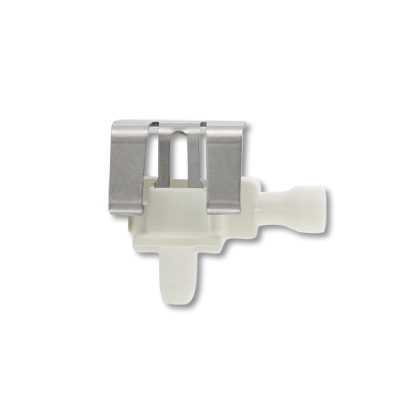

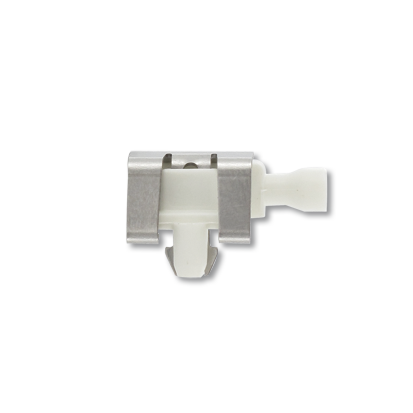

COB Connector Spec Square CL-L104 COB

Article number: 47.318.1100-0

EAN: -

1,3 +/- 0,1 mm
0,25 - 0,5 mm²
0,5 mm²

Product information "COB Connector Spec Square CL-L104 COB"

For easy fixing of COB's - No tools required!
Panel thickness: 1.3 ±0.1 mm surface coating included
Strip length: 8+1 mm
Even mounting pressure on the LED
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg. Nr. E063

Certification Mark:	VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1
Conductor cross-section:	0.5 mm²
LED?:	intended for the use of COBs
Material:	Housing: PBTContacts: CuSn
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature:	max. 110°C
Packaging quantity:	336
Pre-centering for COB:	No
Producttype:	Connectors für special COB's
Rating:	3A / 150 VDC
Series:	Connectors für Special COB's - 47.315-318
Suitable for:	CL-L104 from Citizen
UL:	yes
Weight:	1,2 g
cURus file no.:	E-345385

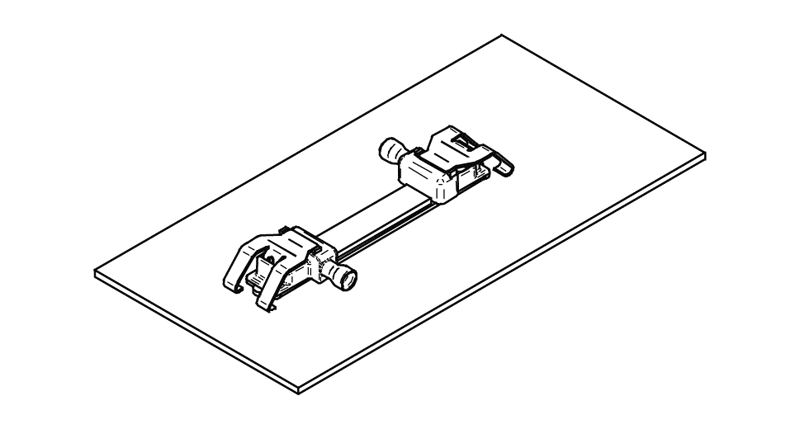

mounting method 1:	Push-in pins
old article number:	47.318.1100.50

Available Downloads

Available CAD Downloads

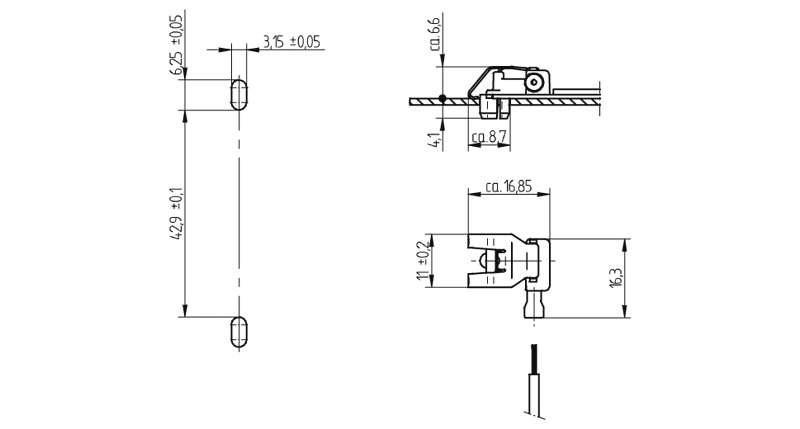

3D-CAD_(STEP,_Parasolid,_IGES,_3D-PDF)01T-902-02

Certifications

Article Number	Status	Description	Documents
47.318.1100-0			ÜG_Überwachungsgutachten-Certificate_of_Conformity3848859
47.318.1100-0			cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952
47.318.1100-0			Genehmigung_liegt_vor-Approval_at_hand5665445

Suitable for the following LED types

LED manufacturer	LED designation	More information
Citizen	CL-L104	ce.citizen.co.jp
