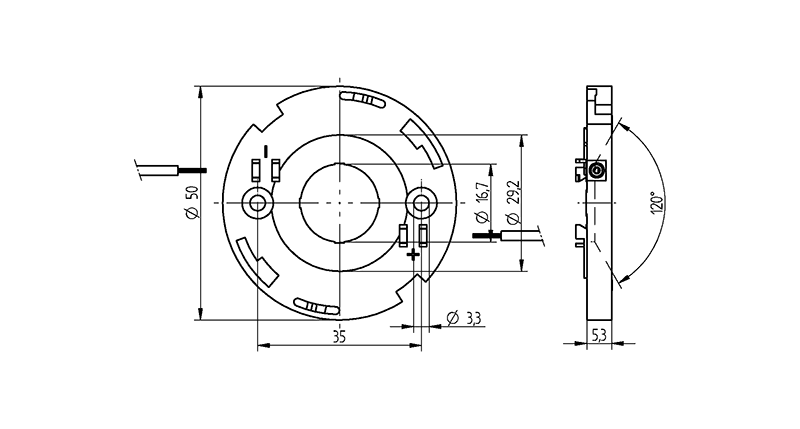

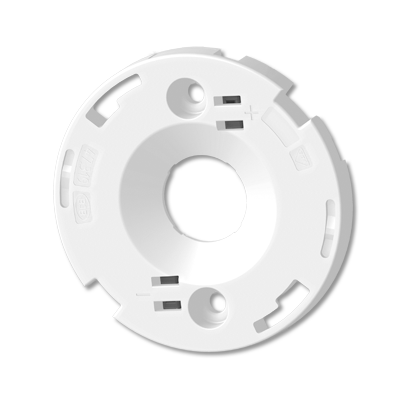

COB Connector Ø50 LED array 17.85x17.85
Article number:
47.319.2344-0
EAN:
4049853
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
Product information "COB Connector Ø50 LED array 17.85x17.85"
With integrated reflector interface
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
| Conductor cross-section: | 0.5 mm² |
|---|---|
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 130°C |
| Packaging quantity: | 420 |
| Pre-centring for COB: | Yes |
| Producttype: | Spotlight Connectors and Accessories |
| Rating: | 3A / 150 VDC |

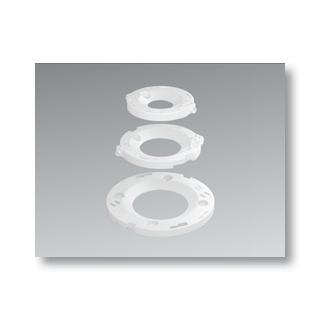

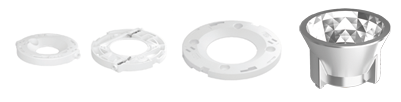

| Series: | COB Connectors - 47.319 |
| Weight: | 5 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |

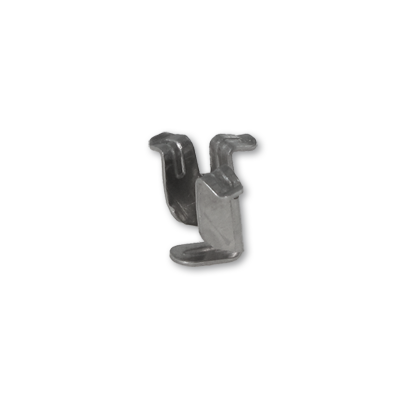

| mounting method 2: | P2F fixing with 28.902.-102 |
| old article number: | 47.319.2344.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 47.319.2344-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 47.319.2344-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 | ||
| 47.319.2344-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity5852779 |
Suitable for the following LED types
| LED manufacturer | LED designation | More information |
|---|---|---|
| Cree | CXA1816 | cree-led.com |
| Cree | CXA1820 | cree-led.com |
| Cree | CXA1830 | cree-led.com |
| Cree | CXB1816 | cree-led.com |
| Cree | CXB1820 | cree-led.com |
| Cree | CXB1830 | cree-led.com |
| Philips | CertaFlux 830 1205 | www.lighting.philips.co.uk/oem-emea |
| Philips | CertaFlux 830 1208 | www.lighting.philips.co.uk/oem-emea |
| Philips | CertaFlux 930 1204 | www.lighting.philips.co.uk/oem-emea |
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-

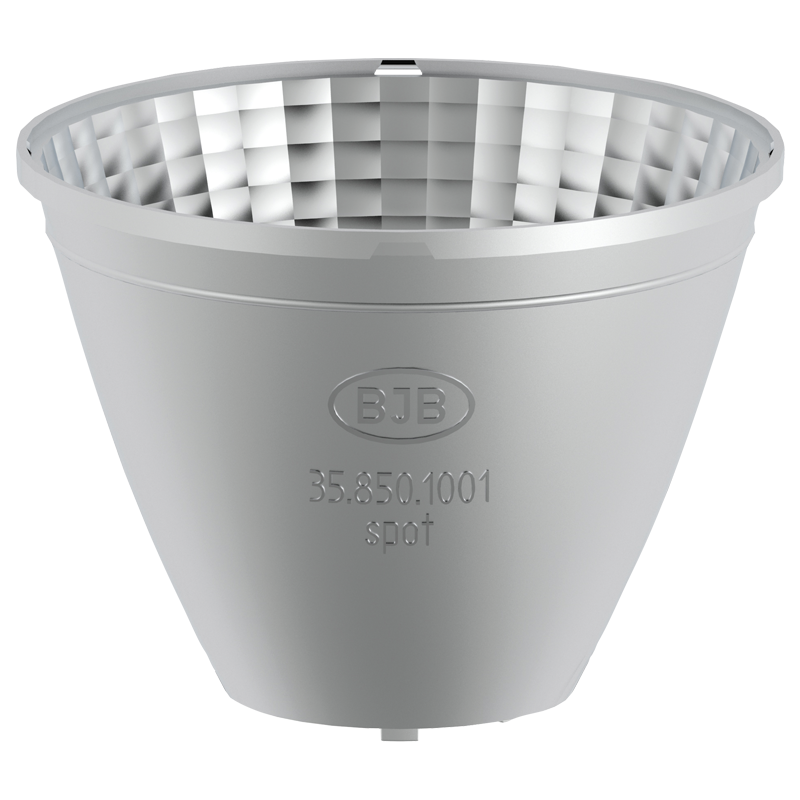

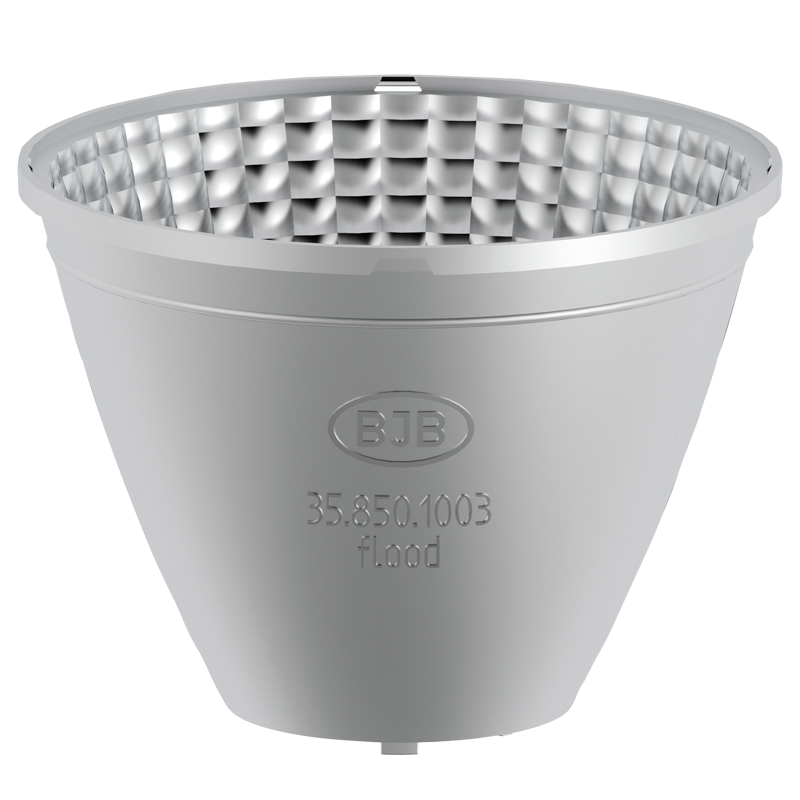

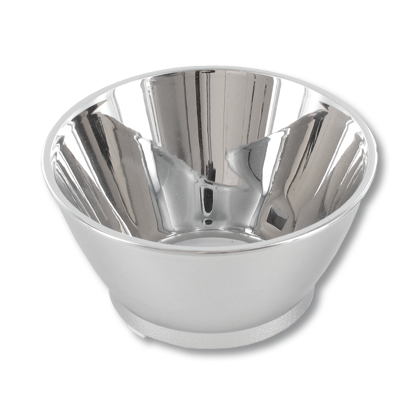

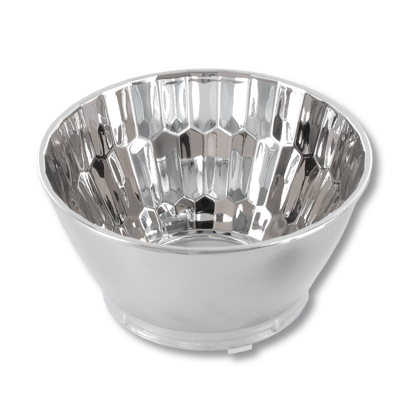

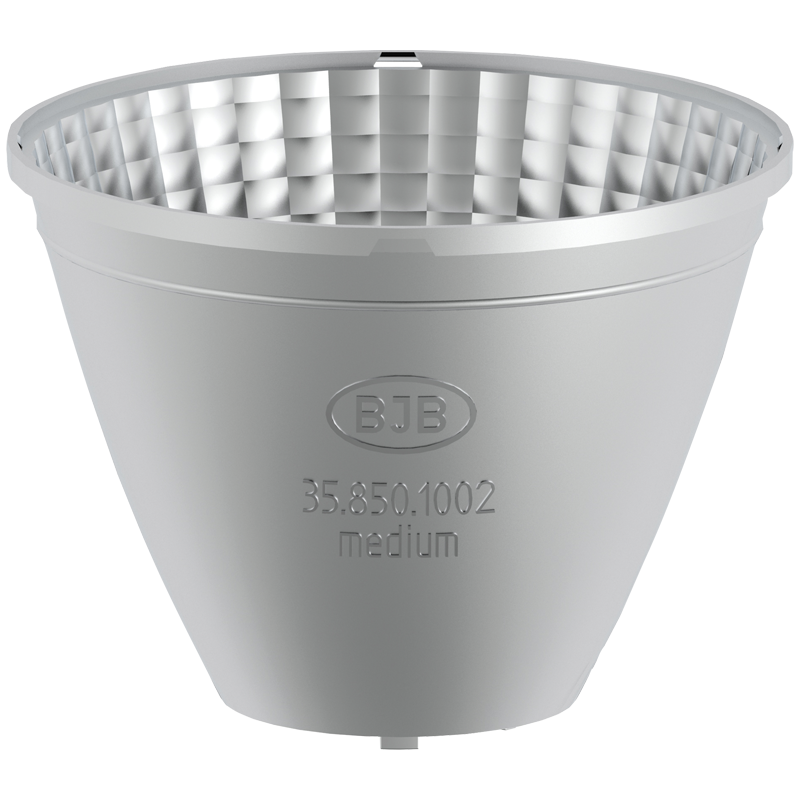

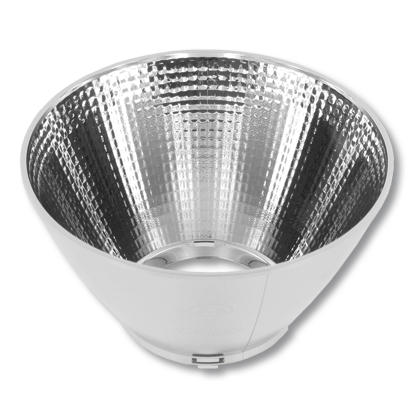

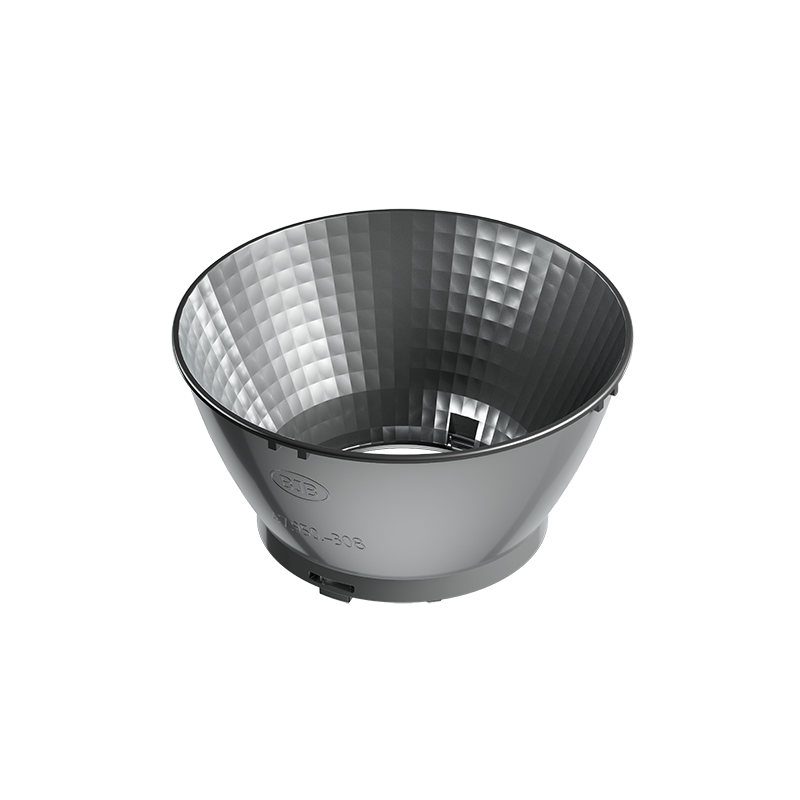

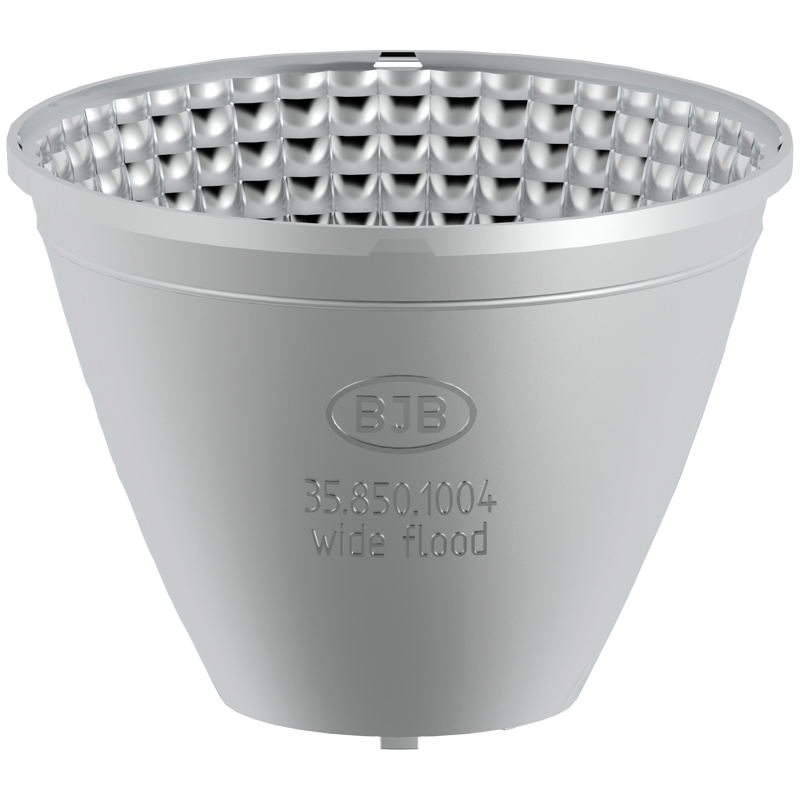

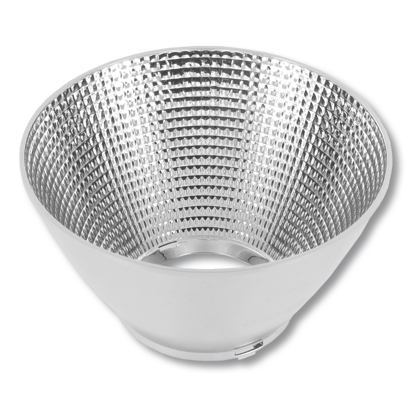

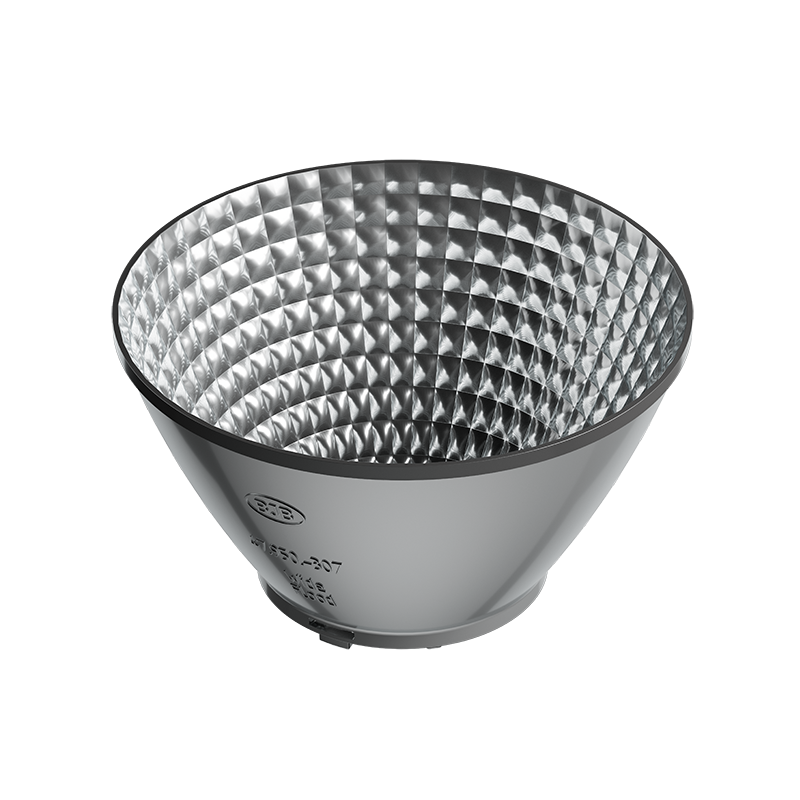

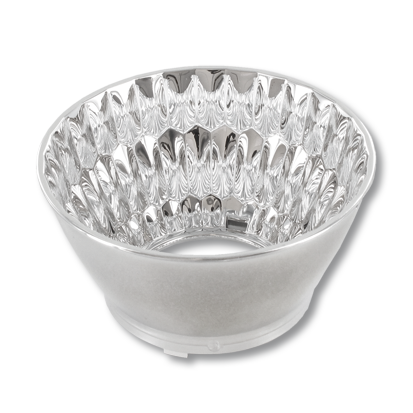

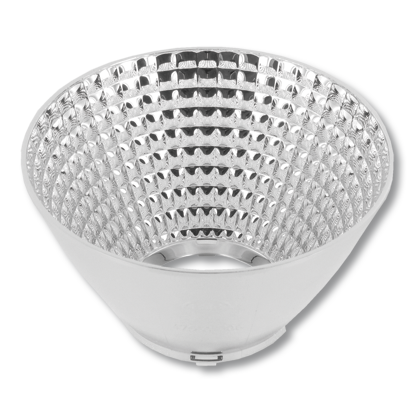

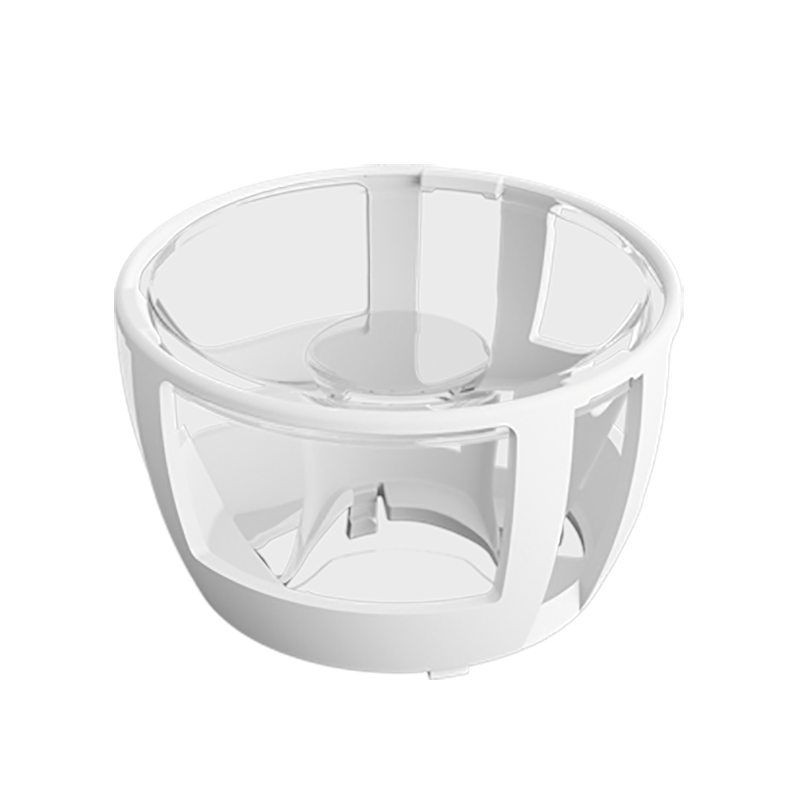

Accessories
