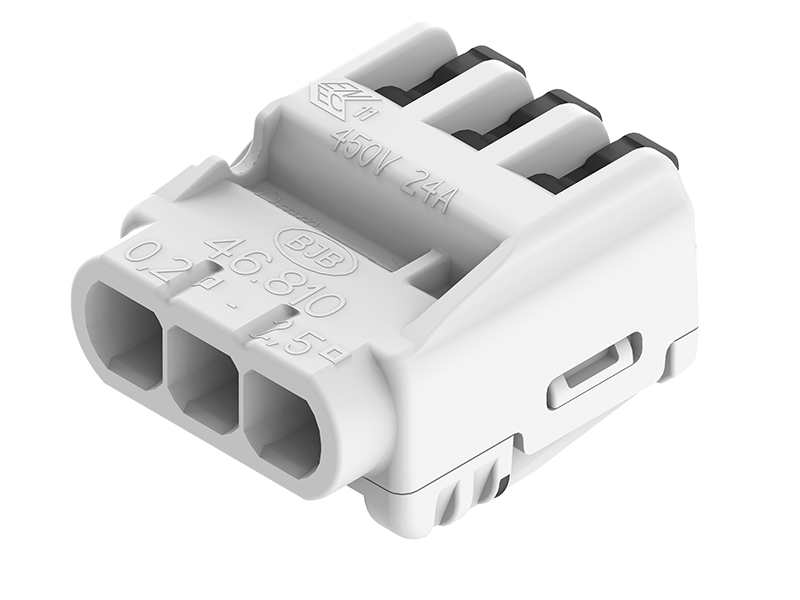

Universal wire connector, 3 numbers of connection, 1 potential, Contact opening function
Article number:
46.810.1002-0
EAN:
-
-
ø 0.2 - 2.5 mm²
-
-
-
ø 0.2 - 2.5 mm²
-
9 - 10 mm
-
-
Product information "Universal wire connector, 3 numbers of connection, 1 potential, Contact opening function"
- A number of wire cross sections can be combined in one connector
- High pull-out forces
- Connection of rigid wires without activating the release lever
- Viewing window for visual inspection of the clamping points means greater safety during installation
- Easy handling

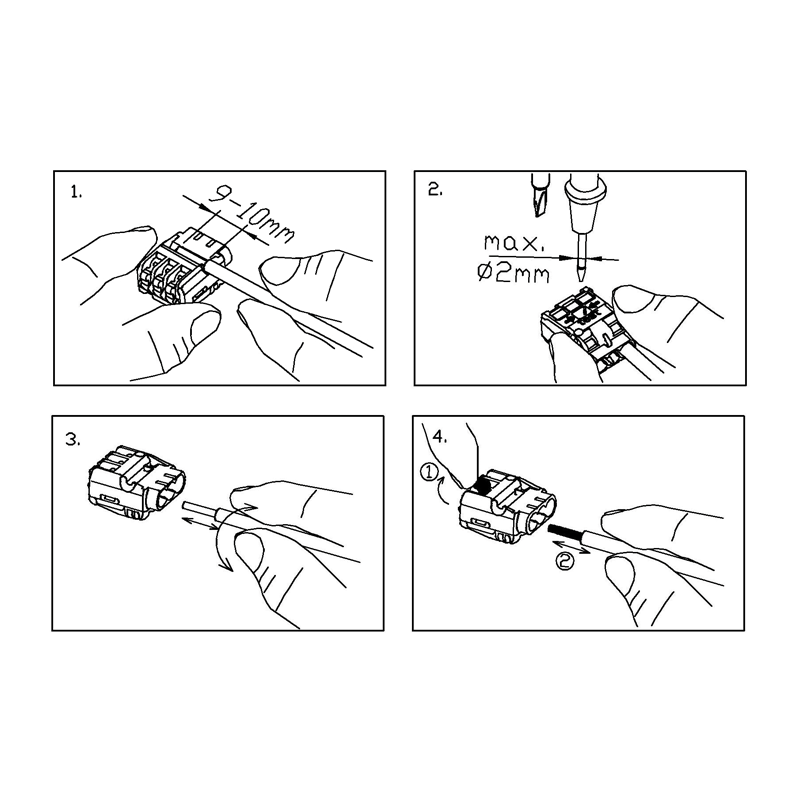

- Gauge for ideal wire stripping length
Nominal voltage: IEC rating: 450 V / UL rating: 300 V
Clamping range: IEC rating: 0,2 - 2,5 mm² / UL rating: AWG 24 - 18
Classification: 3K5
Product standard: IEC rating: EN 60998-1, EN 60998-2-2 / UL rating: UL 486C
| Application areas: | Universal wire connector in electricity area. Versatile use in various applications in lighting as well as in building installations. |
|---|---|
| Color: | white - black |
| Contact opening: | 0.2 - 2.5 mm² / AWG 24 - 18 |
| IP-Protection type: | IP20 |
| Lettering: | ohne / without |
| Material: | Housing: PC - Cover: PC - Contact parts: Copper - Spring: Stainless steel |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 24 A |
| Operating temperature: | -5 to +45°C |
| Operating voltage: | 450 V (IEC) / 600 V (UL) |
| Other: | Humidity: 5 - 95% |
| Packaging quantity: | 3000 |
| Producttype: | Univeral wire connectors |
| Series: | Universal wire connectors |
| T-marking: | T85 (IEC) / T105 (UL) |
| UL?: | yes |
| Weight: | 2,7 g |
| Wire length: | Stripping length 9 - 10 mm |
| Wires: | solid, stranded and flexible |
| old article number: | 46.810.1002.50 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 46.810.1002-0 | Genehmigung_liegt_vor-Approval_at_hand6692452 | ||
| 46.810.1002-0 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)6700405 |
-
